Apple iMac G5, 20-inch User Manual
Page 260
36 - iMac G5, 20-inch Troubleshooting
Symptom Charts
6.
Remove the back cover to access the diagnostic LEDs on the main logic board.
7.

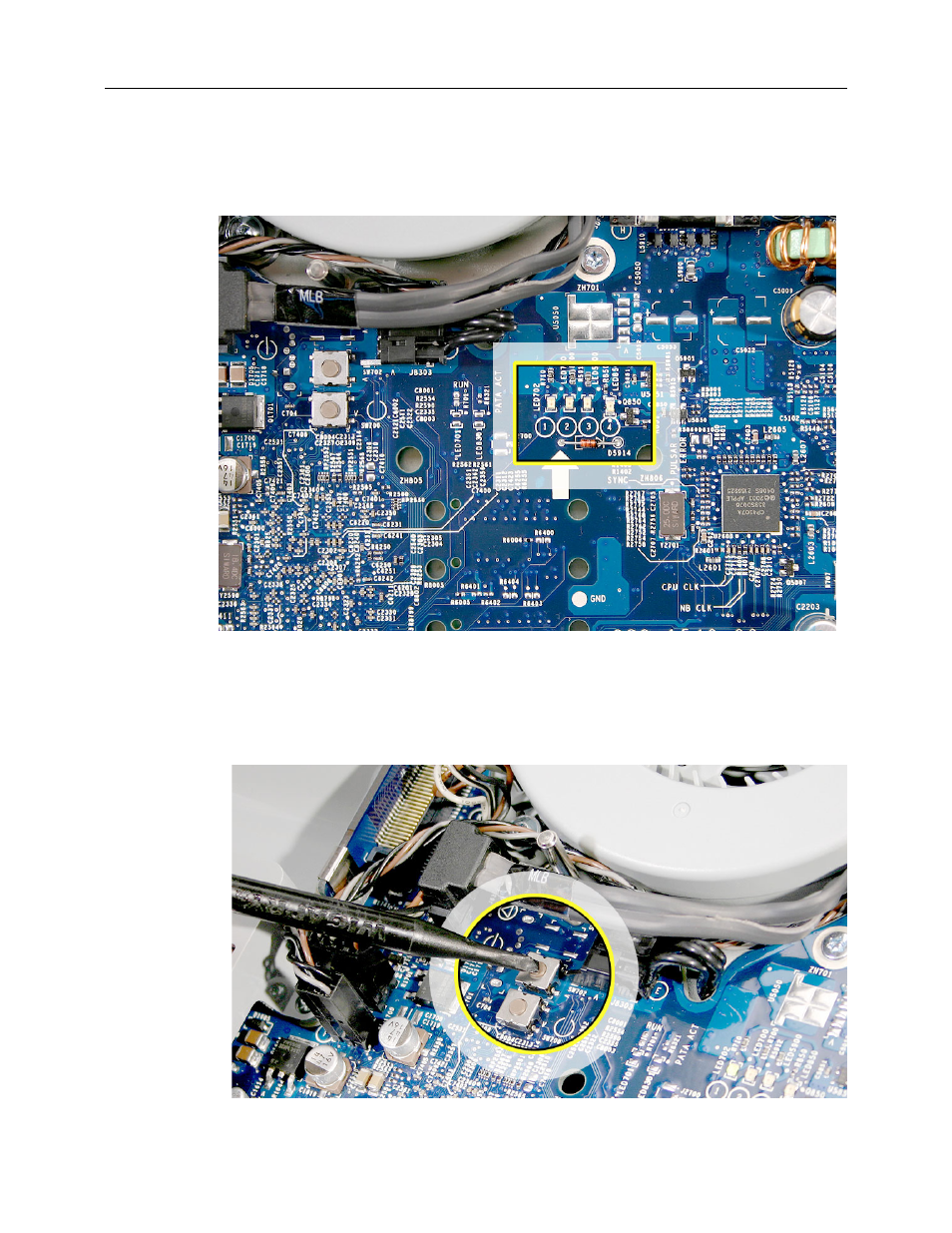

With the back cover removed, locate the diagnostic LEDs 1 through 4 above the large
white arrow on the logic board.
8.
Plug the power cord into the iMac G5 and into a known good AC outlet. LED #1 should
come on if your computer has been starting up properly. If LED #1 is off, see iMac G5:
Troubleshooting: No Power for further troubleshooting information.
9.
Turn the computer on by pressing the internal power button. Press the small, metal
button under the fan cover as shown.
