Apple iMac G5, 20-inch User Manual
Page 139
iMac G5 (20-inch) Take Apart -
Midplane Assembly

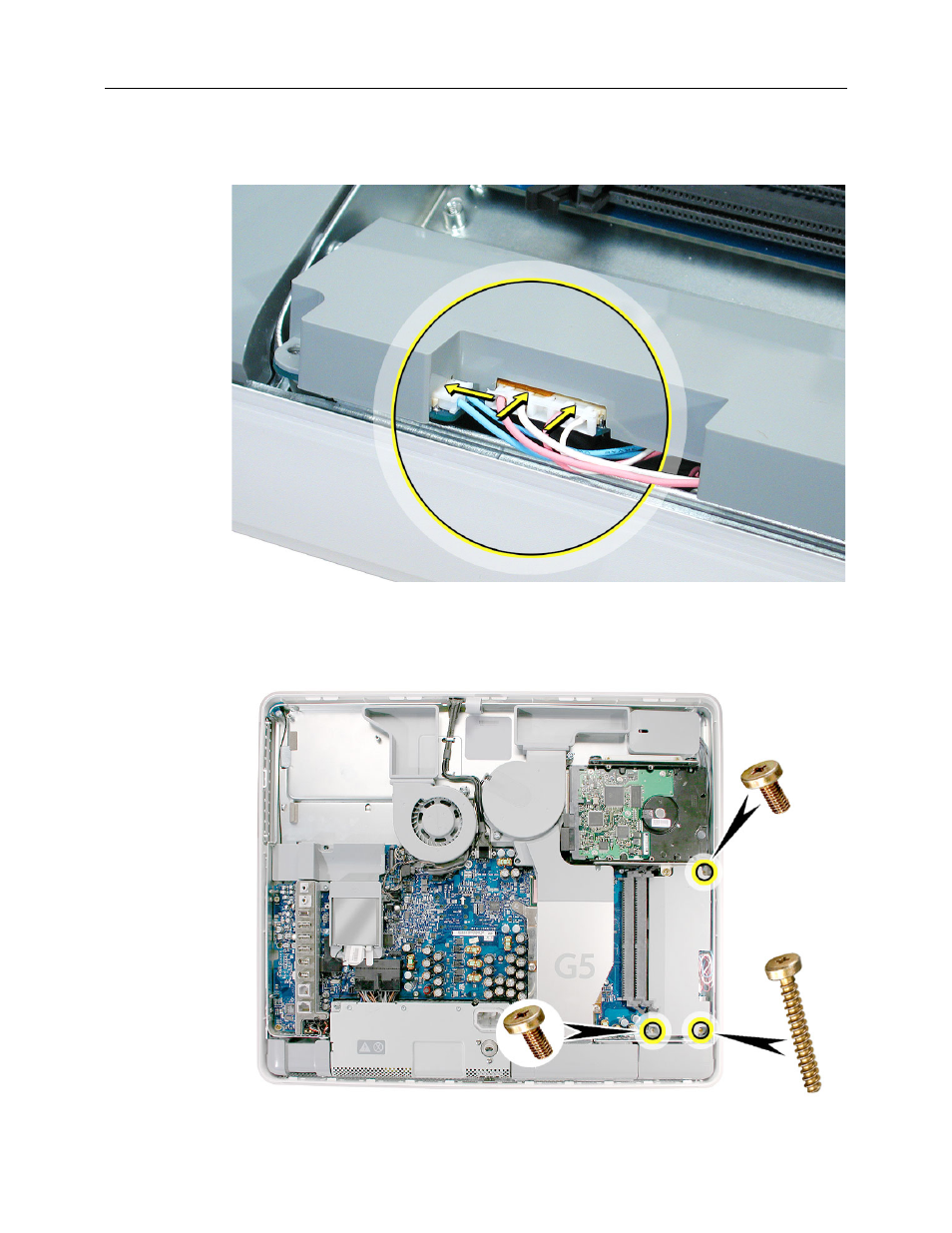

14. Connect the inverter cables, connecting the larger connector first. Note: The
connectors are keyed, and plug in only one way.
15. Install the gray plastic inverter at a slight angle as if it were sliding under the memory
slots. Replace the three screws.
