iMac G5 (20-inch) Take Apart -
Serial ATA Hard Drive

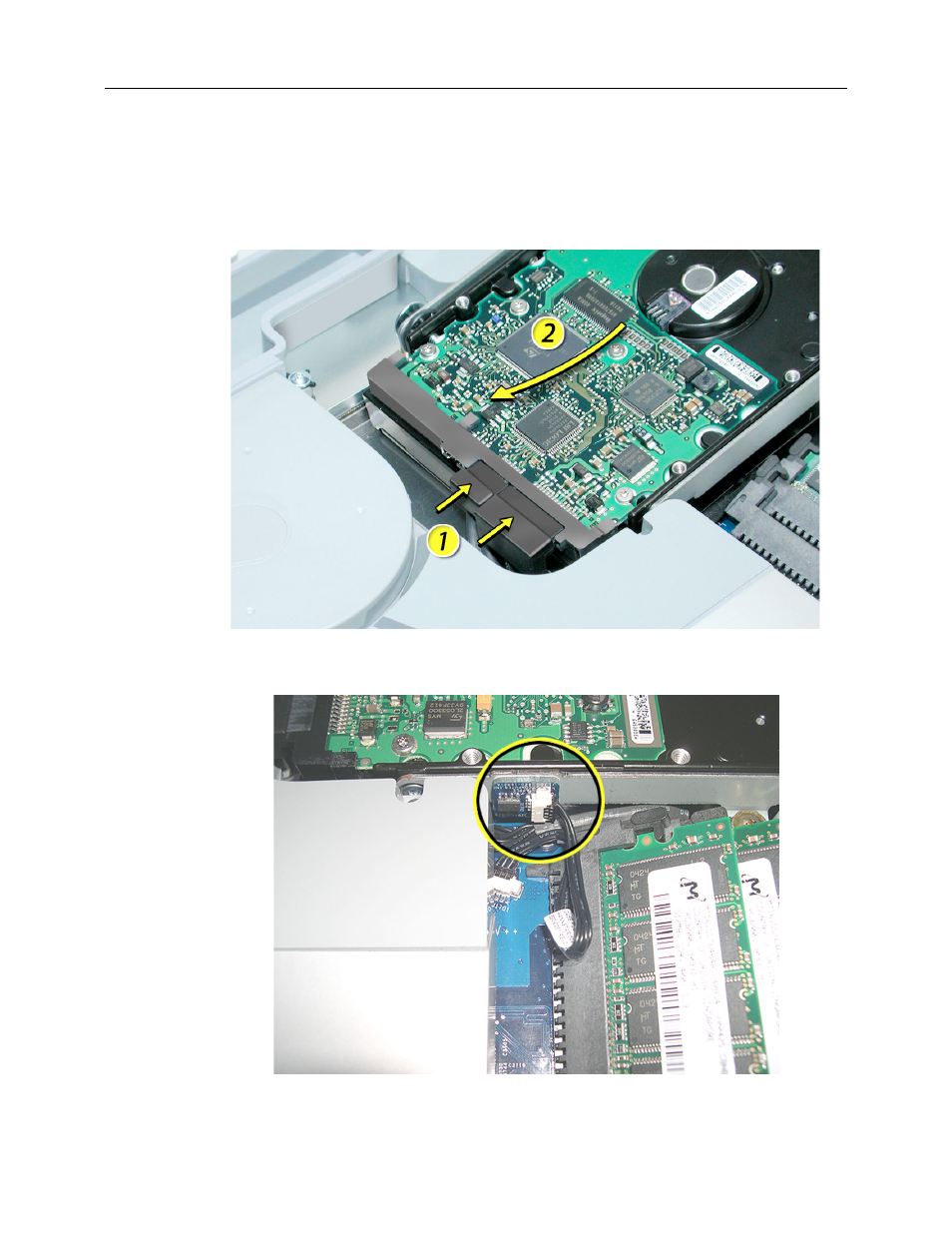

Replacing the Serial ATA Hard Drive
1.
Remove the replacement hard drive from its packaging.
2.
Connect the drive data cable and power cable to the hard drive. Lower the hard drive
into place on the midplane.
3.
Connect the black cable to the white connector on the side of the hard drive.
