Replacing the power supply – Apple iMac G5, 20-inch User Manual
Page 81
iMac G5 (20-inch) Take Apart -
Power Supply
Replacing the Power Supply
1.
Remove the replacement power supply from its packaging.
2.

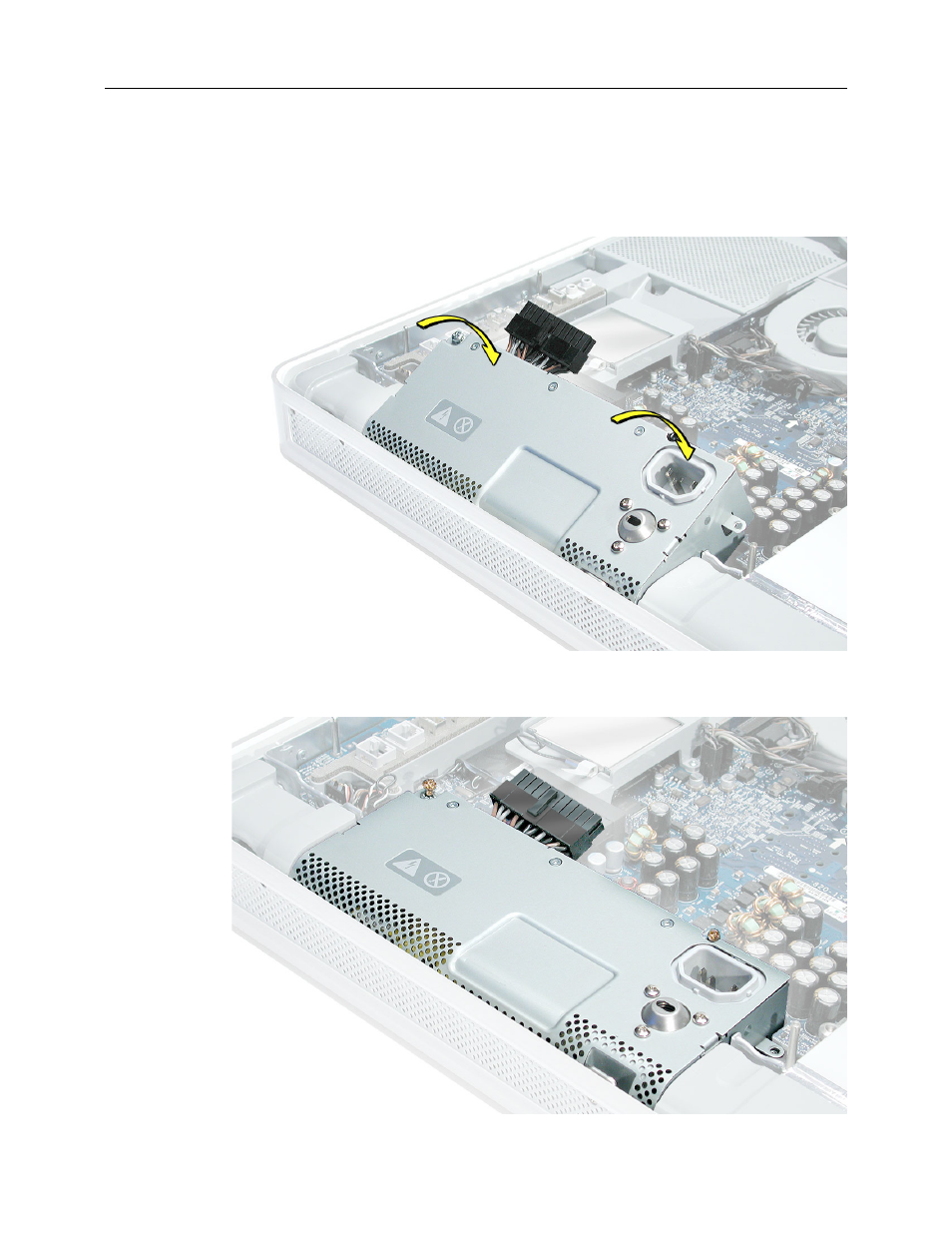

Replace the power supply. Tilt up the power supply until it clears the edge of the main
circuit board. Lower it into place.
3.
When the power supply is installed properly it should be flush with the gray plastic
parts on the right and left sides of the power supply.
