Replacing the inverter – Apple iMac G5, 20-inch User Manual
Page 37
iMac G5 (20-inch) Take Apart -
Inverter
Replacing the Inverter
1.

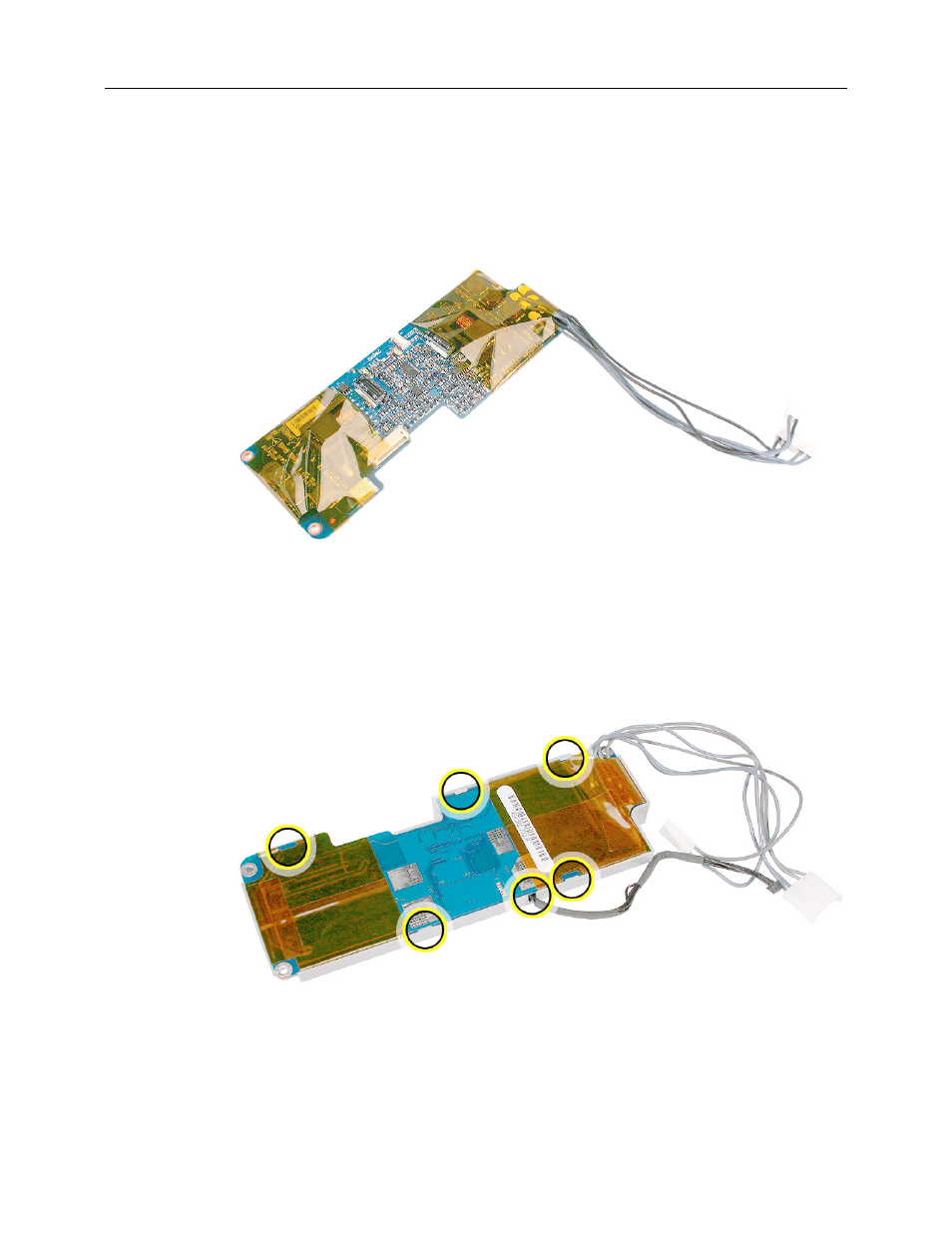

Remove the replacement inverter from its packaging.
Note:
The inverter board and the
inverter cover have been revised (July 2005). The inverter cables are now soldered to
the top side of the board and the cover now has a slot for the cables to reside.
2.
Attach the black inverter cable that you removed previously in step 16.
3.
Install the gray cover on the replacement inverter board. Gently squeeze the board at
each tab (circled) until all six tabs snap onto the board.
