Configuring System Parameters

99

IP Storage Router SR2122-2 User Guide

Note:

You can verify and save the configuration (by using the

save system bootconfig or save all bootconfig

command) at any

point in the process of performing the configuration tasks.

Figure 45

illustrates the example configuration used in this chapter.

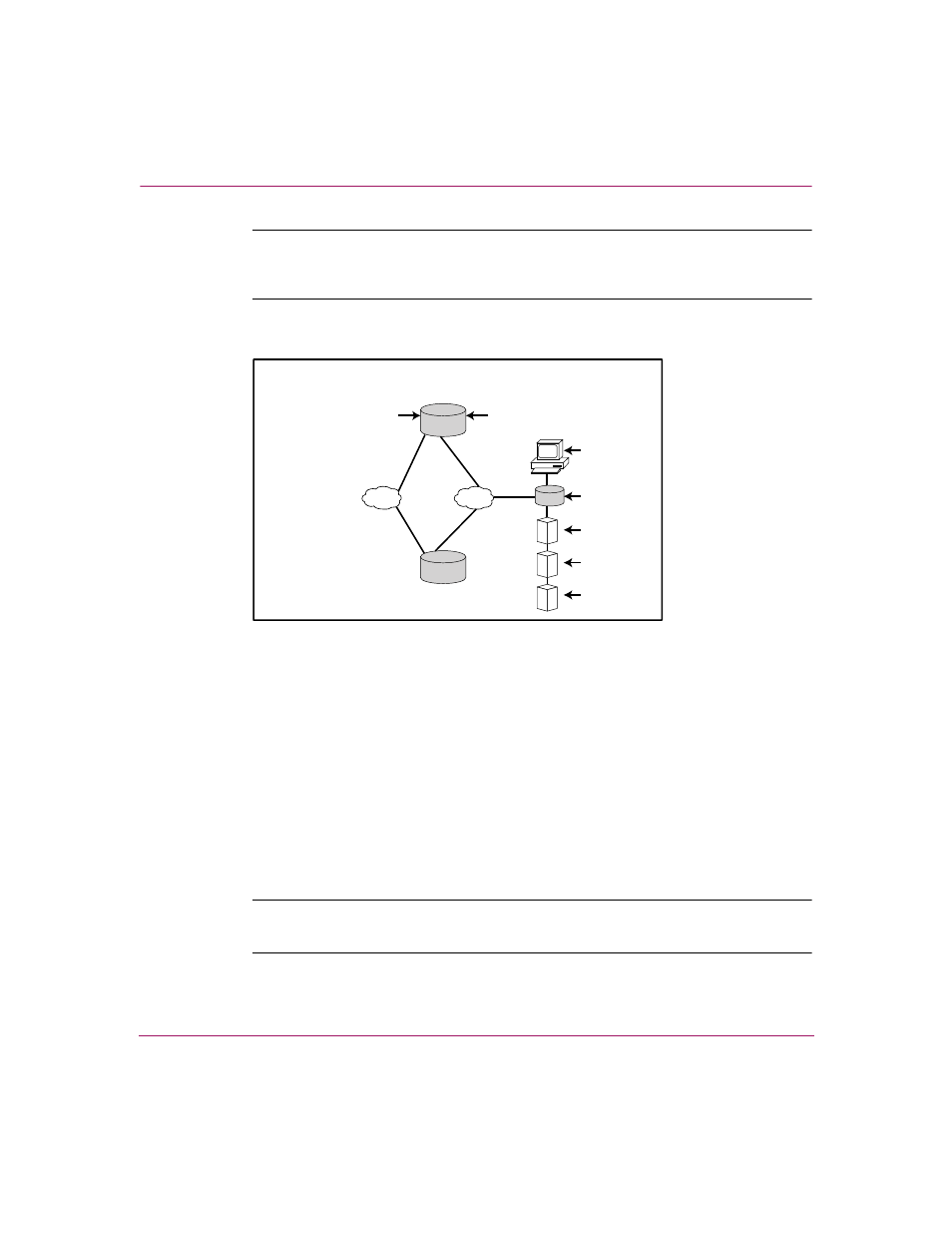

Figure 45: System parameters example configuration

Configuring the Management Interface

Configuring the management interface consists of tasks for setting the system
name, IP address and mask, gateway, and DNS servers. Use the following
procedure to configure the management interface.

If you want external servers, such as RADIUS, TACACS+, or SMTP servers, to
communicate with the SR2122-2 via a specific IP address on a Gigabit Ethernet
interface (for in-band management), configure the IP address on the desired
Gigabit Ethernet interface as described in Step 4. Save the changes to the bootable
configuration (save all bootconfig) and then reboot the storage router.

Note:

The purpose of

Figure 45

is an example system configuration only. The IP

addresses and all names given below are examples only.

HA

Mgmt

HP SR2122-2

HP SR2122-2

Management interface
System Name: SR_2122-MG1
Domain Name: mystoragenet.com
IP: 10.1.10.244
Mask: 255.255.255.0

HA interface

Cluster Name: Mt_Olympus

IP: 10.1.20.56

Mask: 255.255.255.0

Management

Station

IP: 10.1.30.17

Gateway

IP: 10.1.10.201

Primary

DNS server

IP: 10.1.40.243
Secondary

DNS server

IP: 10.1.50.249

NTP server

IP: 10.1.60.86
