Page 25
Product Overview
25
IP Storage Router SR2122-2 User Guide
Fan Assembly
The fan assembly provides cooling for the internal chassis components. The
storage router chassis contains four exhaust fans that are located on the left side of
the chassis. The fans draw air in from the right and exhaust it out through the left.

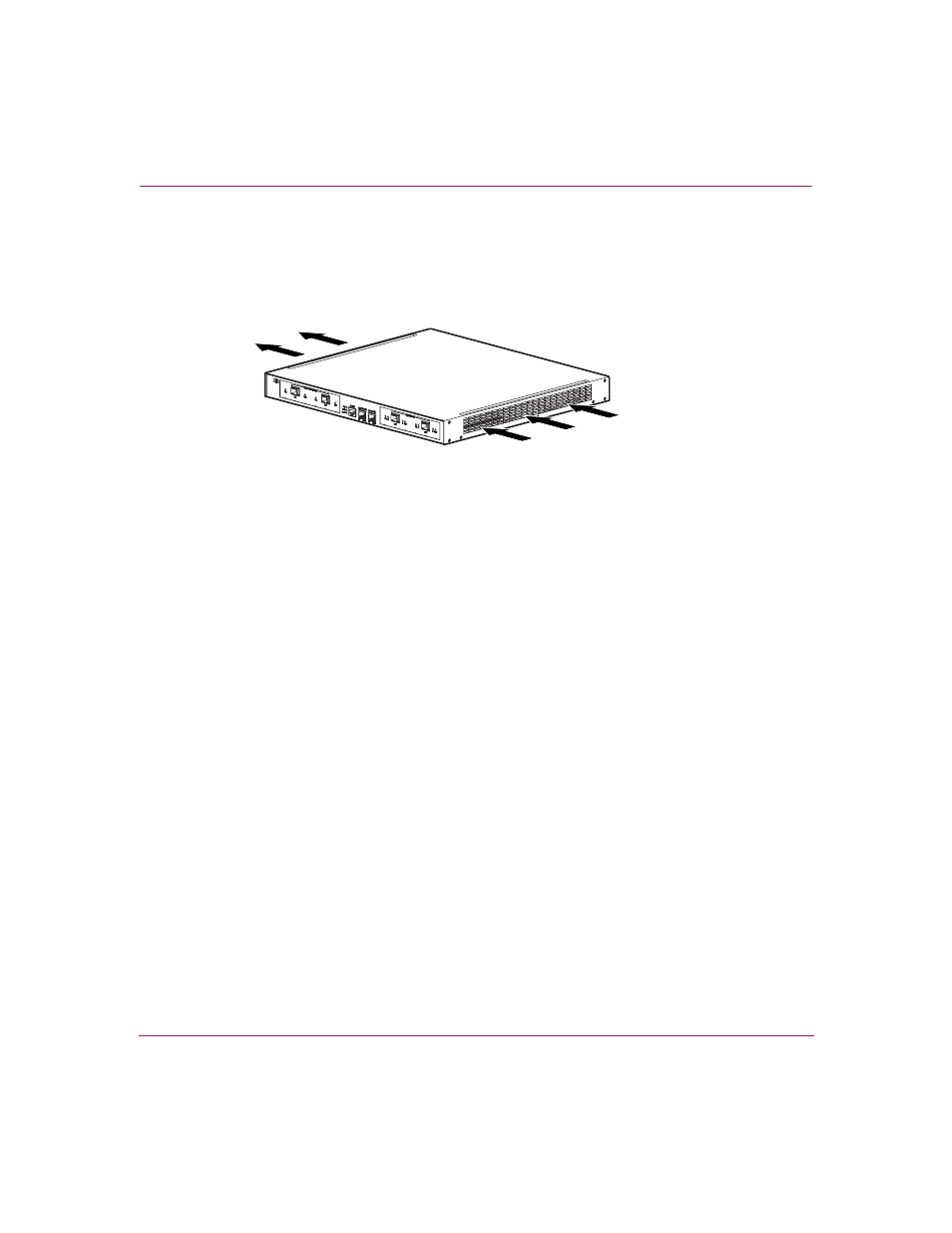

Figure 5: Chassis airflow
hp Stor
ageWorks IP stor
age router 2122-2
15005
