Installation
44
IP Storage Router SR2122-2 User Guide

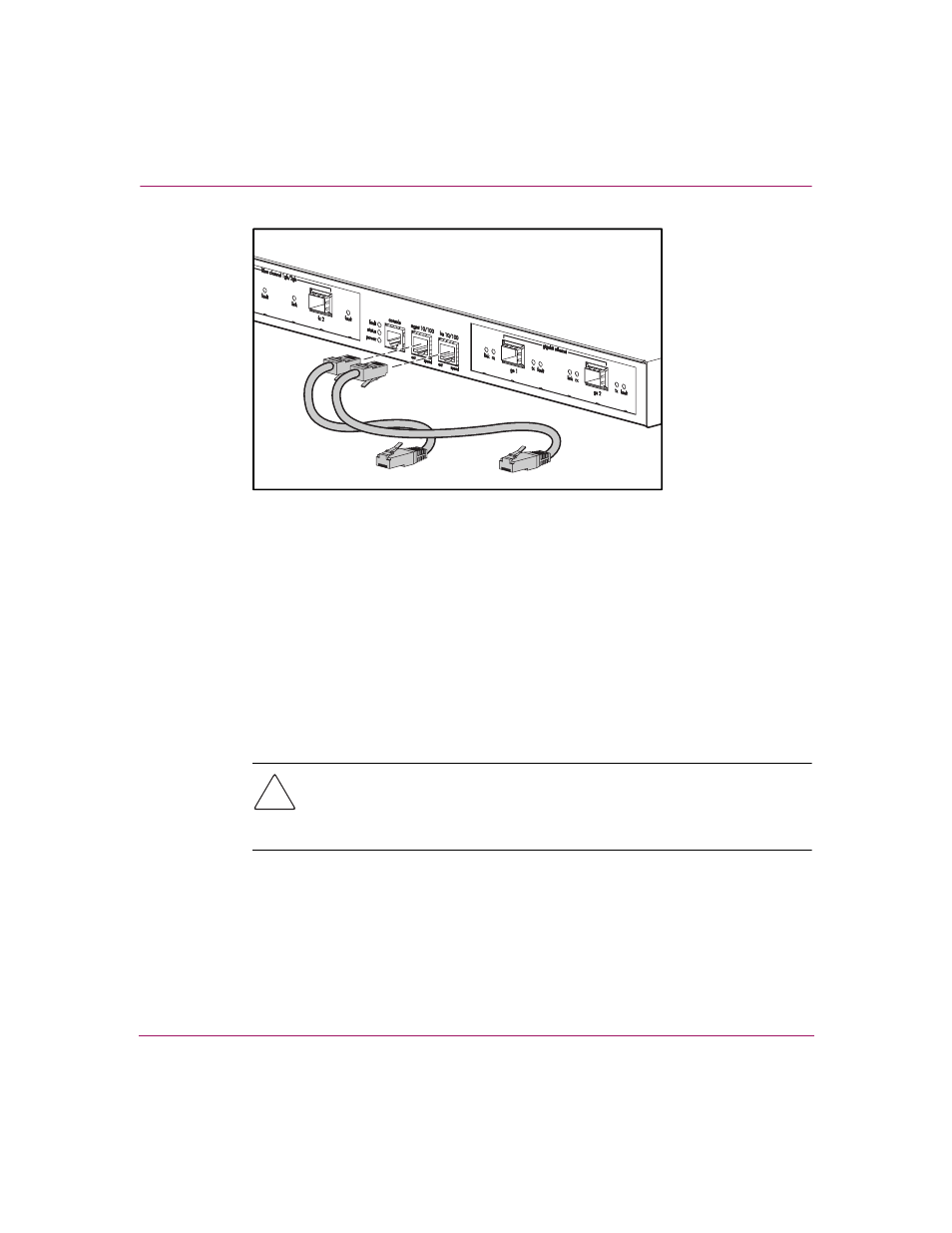

Figure 25: Connecting to the 10/100 management and HA ports
3. Connect the other end of the cable to the external end system, switch, or
router.
Connecting to the Console Port
Connect a PC serial port to the console port for local administrative access to the
storage router. The PC must support VT100 terminal emulation. The
terminal-emulation software — frequently a PC application such as
HyperTerminal or Procomm Plus — makes communication between the storage
router and your PC possible during setup and configuration.
Caution:
The console cable may be connected to the unit during installation
and maintenance only. The console cable must be disconnected from the unit
when not in use during normal operation to minimize the electromagnetic
interference.
To HA network
equipment
To management
network equipment
hp Sto
rageWorks IP sto
rage router 2122-2
15016
