Installation

39

IP Storage Router SR2122-2 User Guide

To remove an actuator/button SFP module from a port:

1. Gently press the actuator/button

on the front of the SFP module until it

clicks and the latch mechanism releases the SFP module from the port.

2. Grasp the actuator/button between your thumb and index finger and carefully

pull the SFP module from the port.

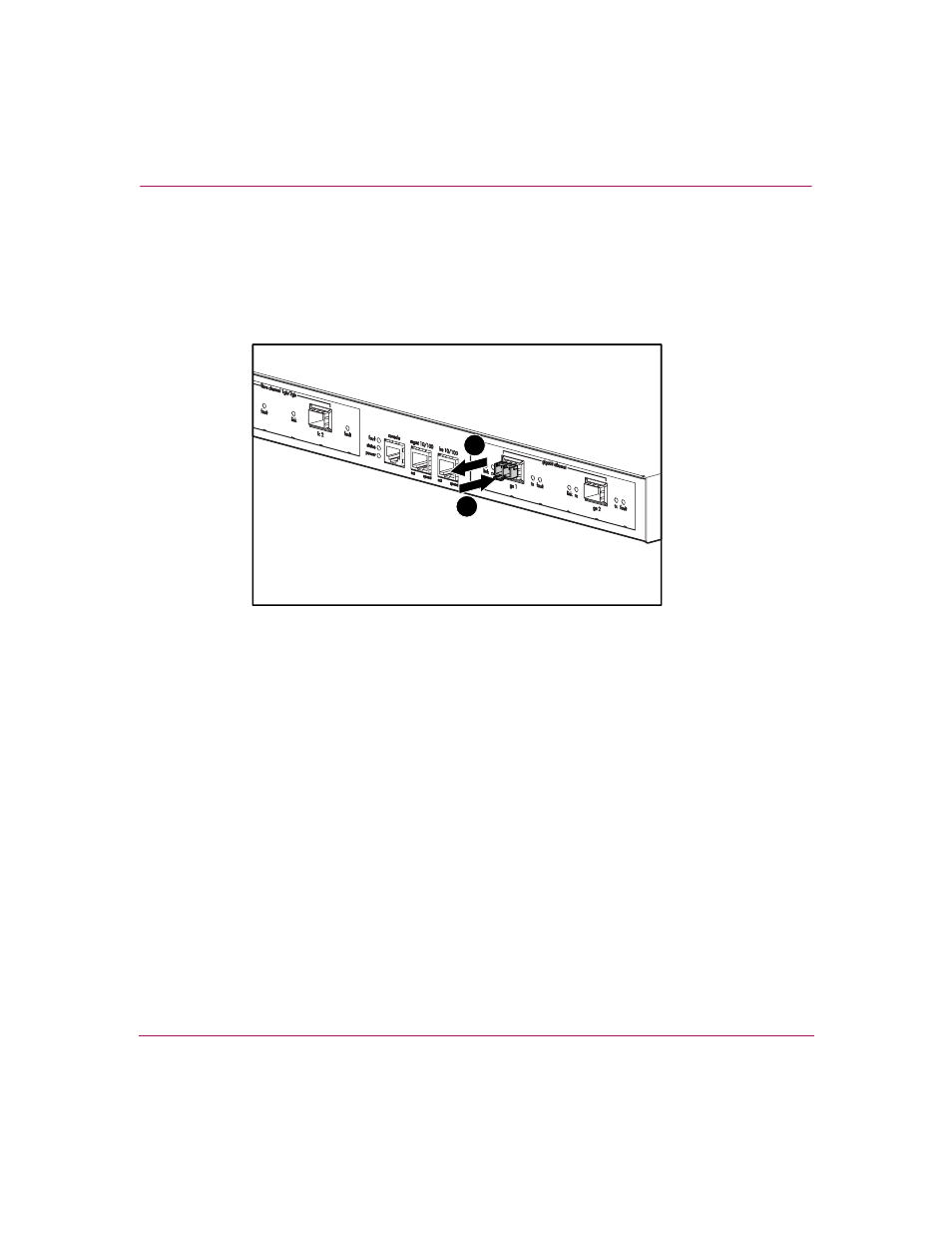

Figure 20: Removing an actuator/button SFP module from a port

1

2

hp Sto

rageWorks IP sto

rage router 2122-2

15012
