Configuring Authentication
148
IP Storage Router SR2122-2 User Guide

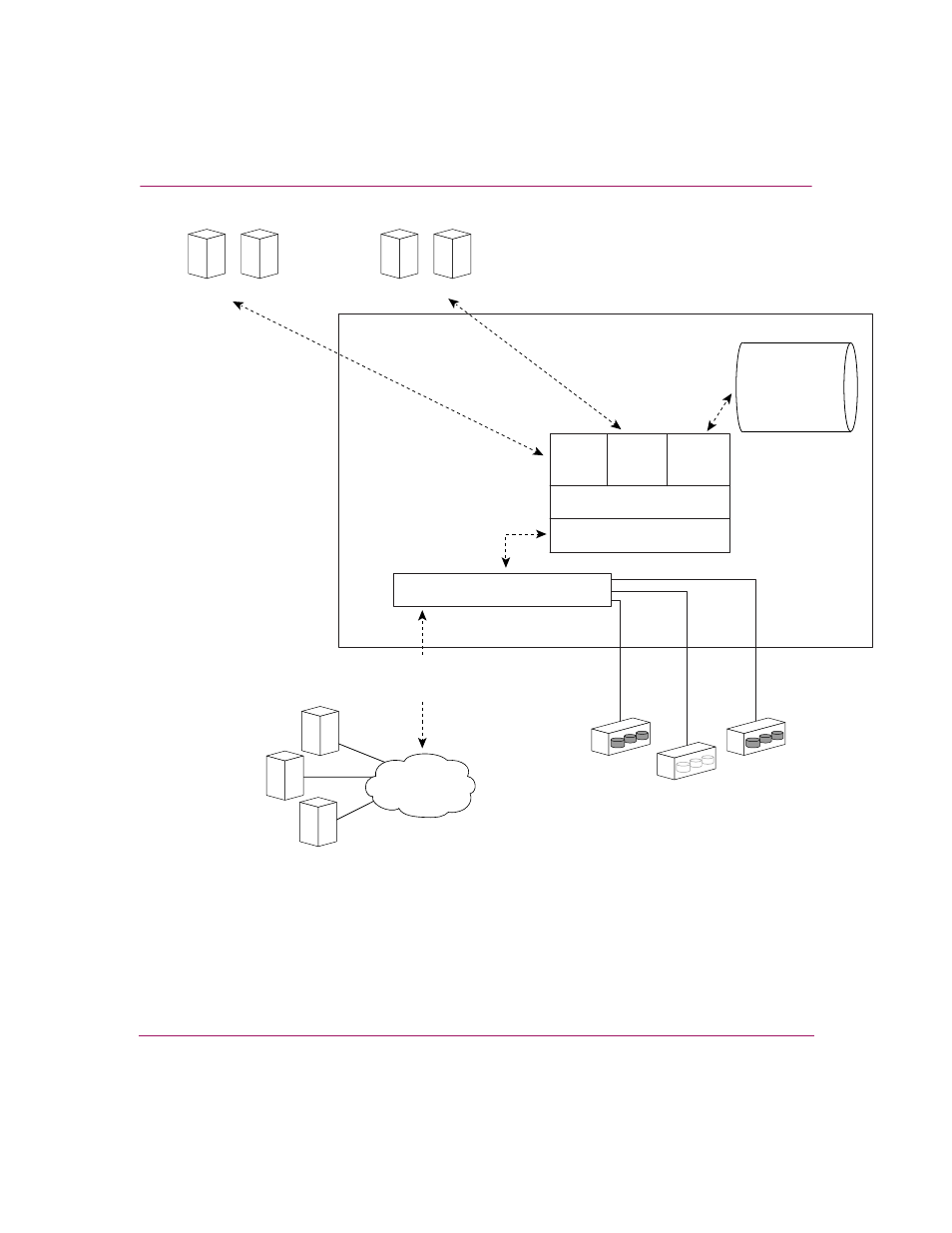

Figure 50: iSCSI authentication configuration elements
Disk
controller
Disk
controller
Tape
controller
IP hosts with
iSCSI drivers
Storage
SR2122-2
Storage Router
user password
user password
user password
user password
user password
user password
. . . . . . . .
. . . . . . . .
Username database
AAA authentication services
Authentication services list
RADIUS TACACS+
local or
local-case
SCSI routing instance
Remote RADIUS servers
Remote TACACS+ servers
When authentication is
enabled, the SCSI routing
instance passes the user name
and password from the iSCSI
driver to AAA for authentication.
AAA uses the authentication list
to determine which services to
use for the authentication
attempt. If authentication fails,
the connection is refused and
the IP host cannot obtain
access to storage resources.
IP
user name and password via CHAP
when iSCSI TCP connection
established
15046
