Product Overview

21

IP Storage Router SR2122-2 User Guide

Port Descriptions

The SR2122-2 provides two 1-Gigabit Ethernet ports, a console port, a 10/100
Ethernet management port, a 10/100 Ethernet high availability (HA) port, and two
1-Gigabit/2-Gigabit Fibre Channel ports.

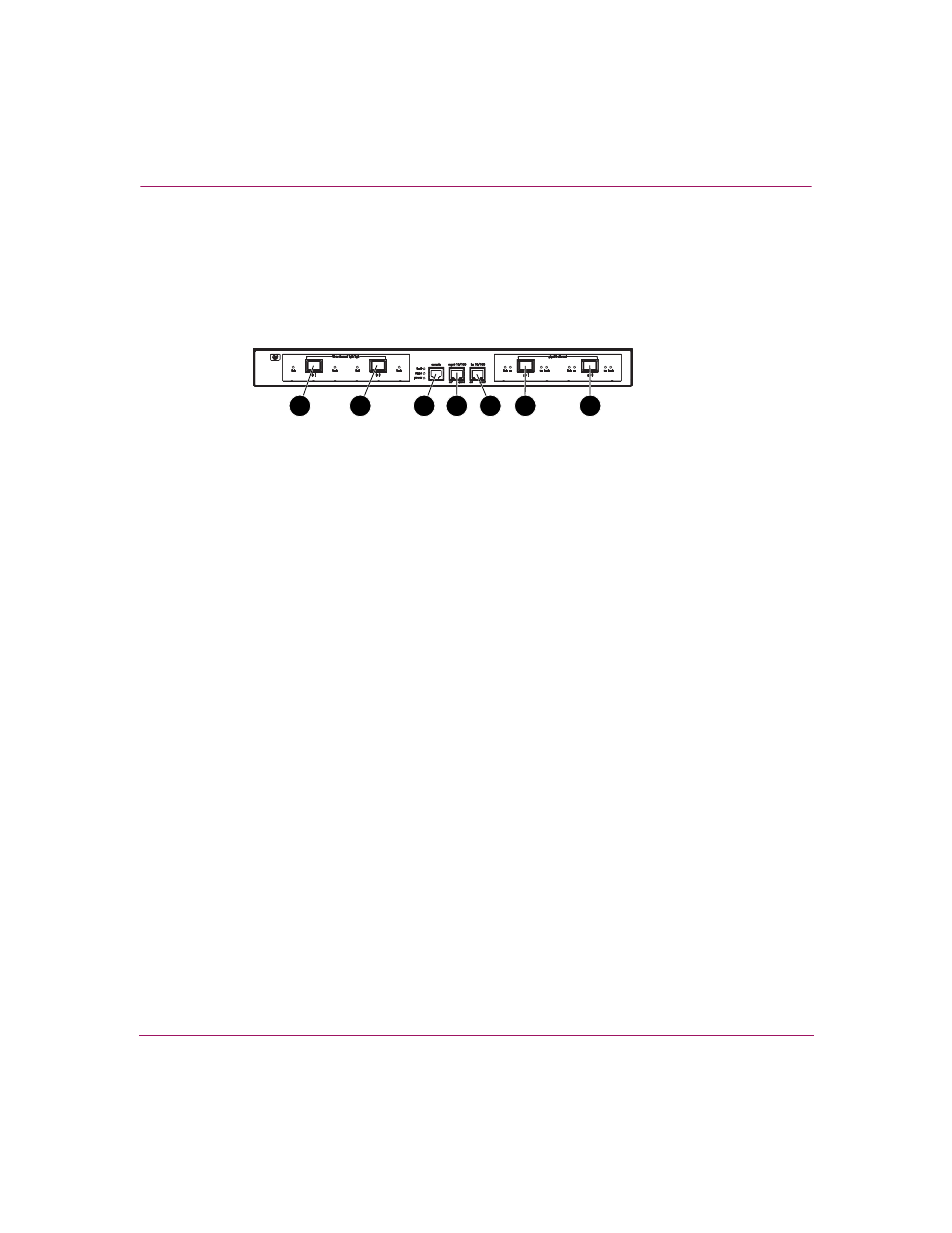

Figure 3: Storage router ports

The following sections describe the ports:

Gigabit Ethernet Ports

Console Port

10/100 Ethernet Management Port

10/100 Ethernet HA Port

Fibre Channel Ports

Gigabit Ethernet Ports

The Gigabit Ethernet ports are labeled GE 1 and GE 2 (see

Figure 3

). Each port

provides a 1-Gigabit Ethernet interface for connecting to IP hosts that require
access to storage. Each port uses a small form-factor pluggable (SFP) module for
connection to the port’s physical medium. See

Appendix B, “Cable and Port

Pinouts”

for SFP module specifications. Each Gigabit Ethernet port has LEDs

indicating its status, as described in

Front-Panel LEDs

, page 23.

1

Fibre Channel 1G/2G, FC 1

2

Fibre Channel 1G/2G, FC 2

3

Console port, CONSOLE

4

10/100 Ethernet management port,

MGMT 10/100

5

10/100 Ethernet high availability (HA)

port, HA 10/100

6

Gigabit Ethernet, GE 1

7

Gigabit Ethernet, GE 2

1

2

4

5

6

7

3

hp StorageWorks IP storage router 2122-2

15003
