Cable and Port Pinouts

212

IP Storage Router SR2122-2 User Guide

Gigabit and Fibre Channel Ports

Table 21

lists the types of SFP modules and connectors used with the Gigabit

Ethernet and Fibre Channel ports in the storage router. For more information
about the SFP modules and connectors, see the standards for the SFP modules and
connectors.

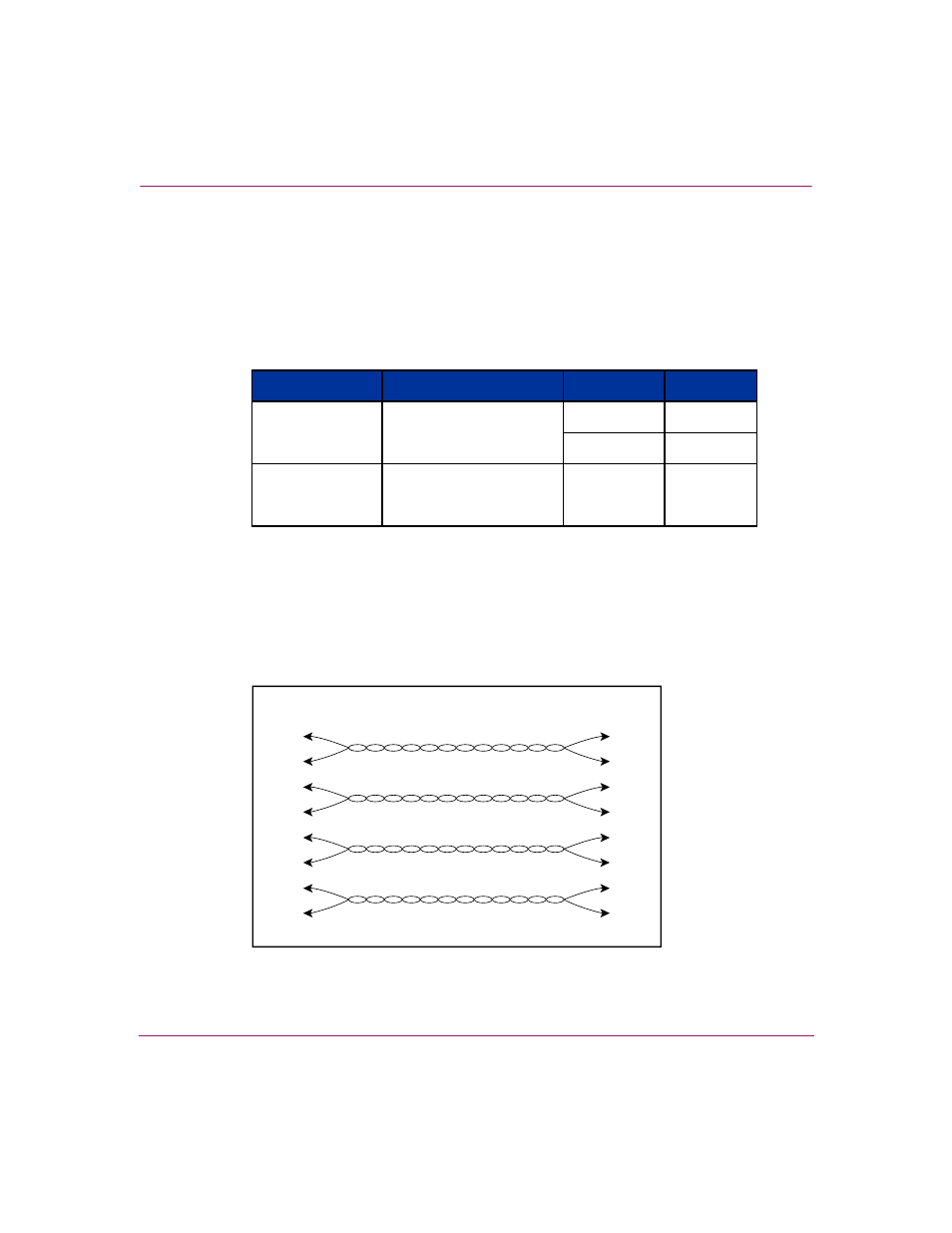

Table 21: SFP Modules and Connectors

10/100 Ethernet Management and HA Ports

Use modular, RJ-45, straight-through UTP cables to connect the 10/100 Ethernet
ports to end systems. Use modular, RJ-45 cross-connect cables to connect to
external switches and routers.

Figure 52

shows straight-through cables and

Figure 53

shows cross-connect cables.

Figure 52: Straight-through cables

Port

Compliance

Connector

Medium

Gigabit Ethernet,

GE 1 and GE 2

1000 Base-SX

MT-RJ

Fiber-optic

LC

Fiber-optic

Fibre Channel,

FC 1 and FC 2

FC-PI 100/200-M5-SN-I

and

FC-PI 100/200-M6-SN-I

LC

Fiber-optic

1

2

3

6

4

5

7

8

1

2

3

6

4

5

7

8

Pin number

Pin number
