Figure 8: rail assembly, Figure 9: removing the screws, 8 rail assembly 9 removing the screws – HP StorageWorks IP Storage Router User Manual

Page 31

background image

Installation

31

IP Storage Router SR2122-2 User Guide

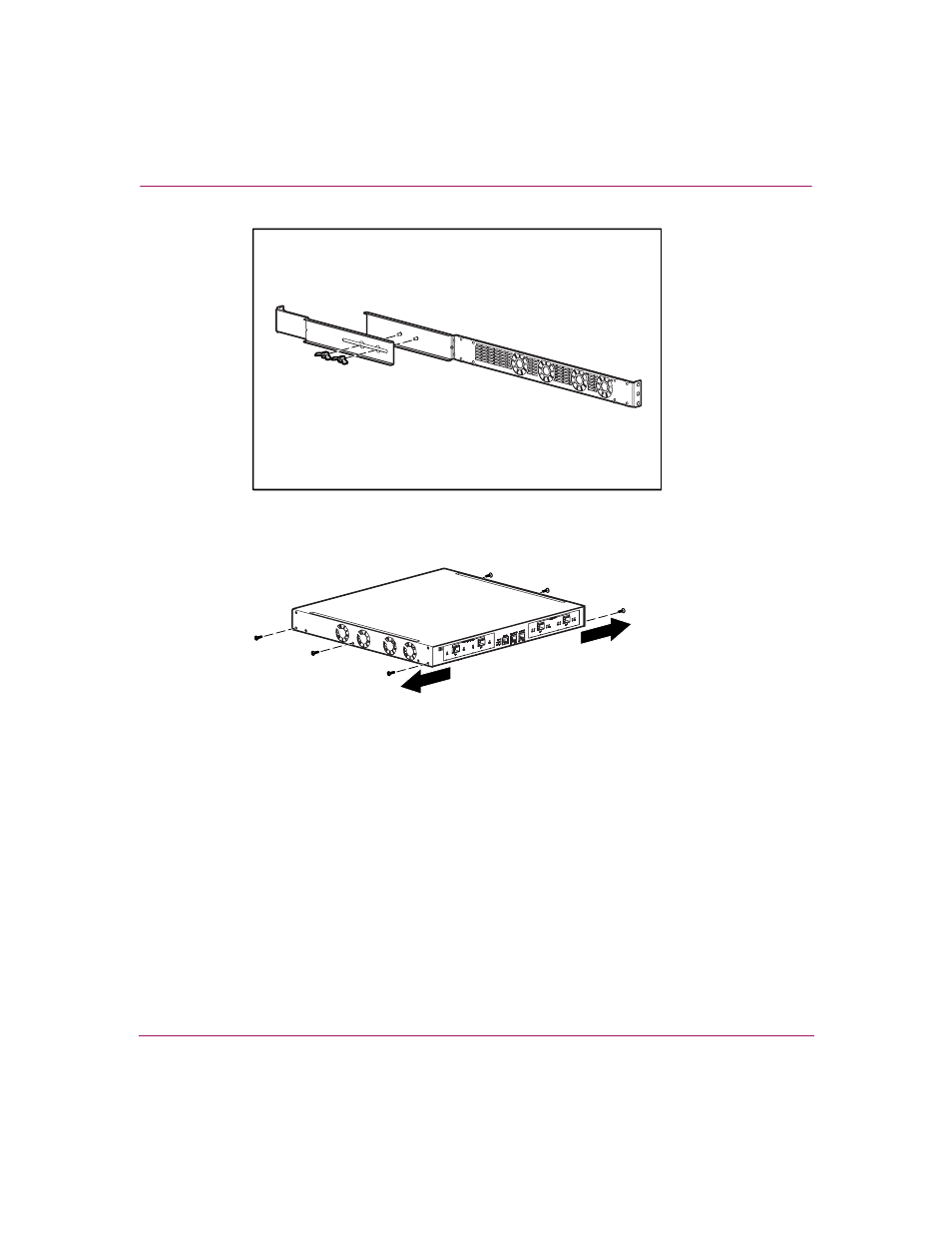

Figure 8: Rail assembly

5. Remove three existing screws from each side of the chassis (6 total).

Figure 9: Removing the screws

hp Stor

ageW

orks IP stor

age router 2122-2

15006
