GRAPH MODE
93
Unit Mismatched
If a value outside of the range is entered, the
closest available value is automatically selected.
Nearest Available
If the entered start Frequency is higher than the
stop Frequency, the two values are swapped.
Hi and Lo Swapped

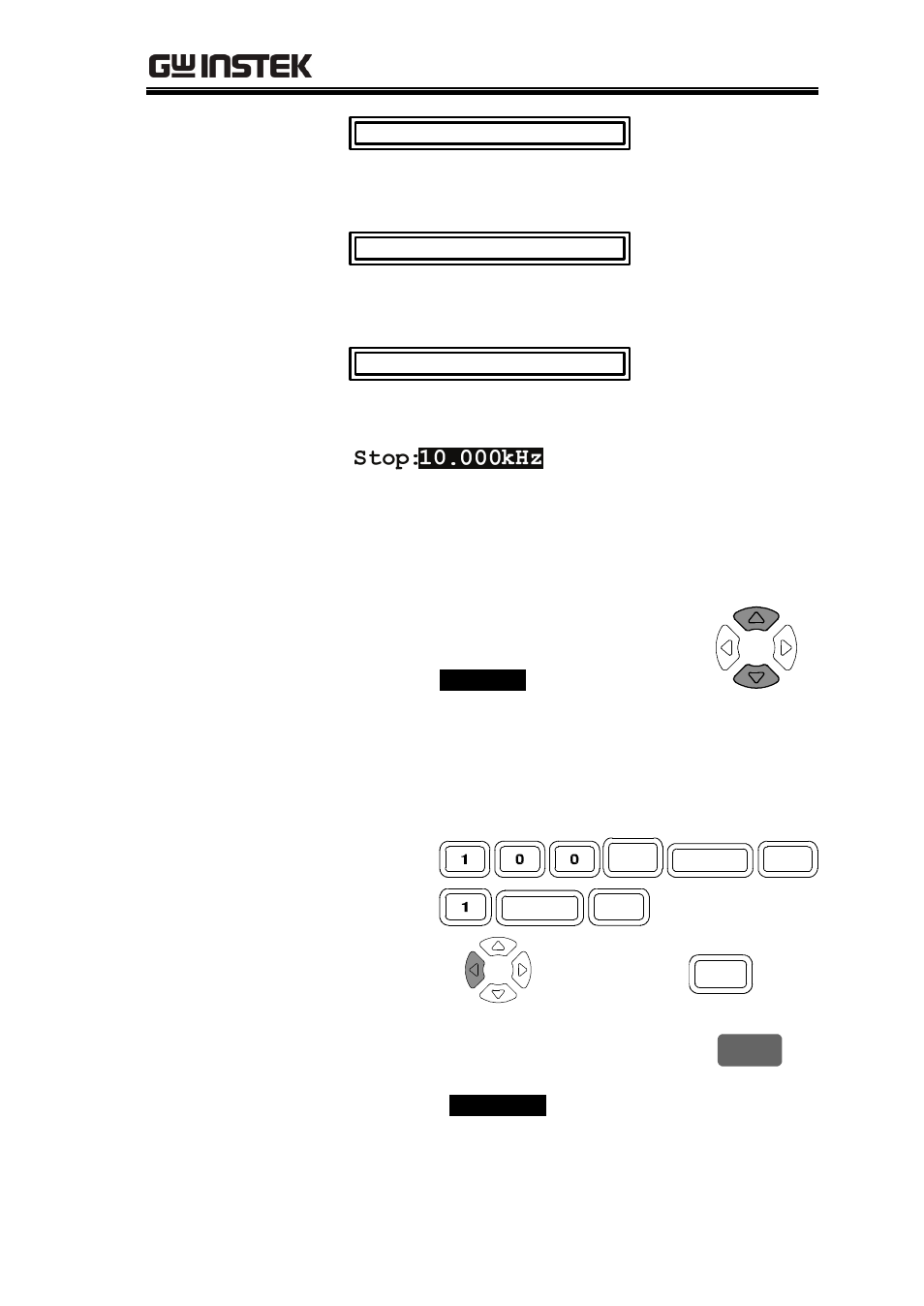

Set stop
Frequency 4. Repeat the above step for the stop Frequency.
Range 20Hz ~ 1MHz/5MHz/10MHz
(stop Frequency must be higher than the start
Frequency)
Set measurement
Voltage 5. Use the Up/Down key to move the
cursor to Voltage setting (Level).
Level: 1.00 V
Use the numerical keys to enter the
measurement Voltage.
Range 10mV ~ 2V (AC≤3 MHz)
10mV ~ 1V (AC>3 MHz)
100mV
m
V/A Enter
1V
V/A Enter
Backspace All clear
Clear
Select Lin/Log
scale 6. Press F1 to select the horizontal
scale, Linear or Logarithmic.
Log(Hz) Lin(Hz)
F 1
