LCR-8000G Series User Manual

108

Interface Configuration

Configure RS-232C interface

RS-232C
configuration

Connector

DB-9, Male

Baud rate

9600

Parity

None

Data

bit

8

Stop

bit

1

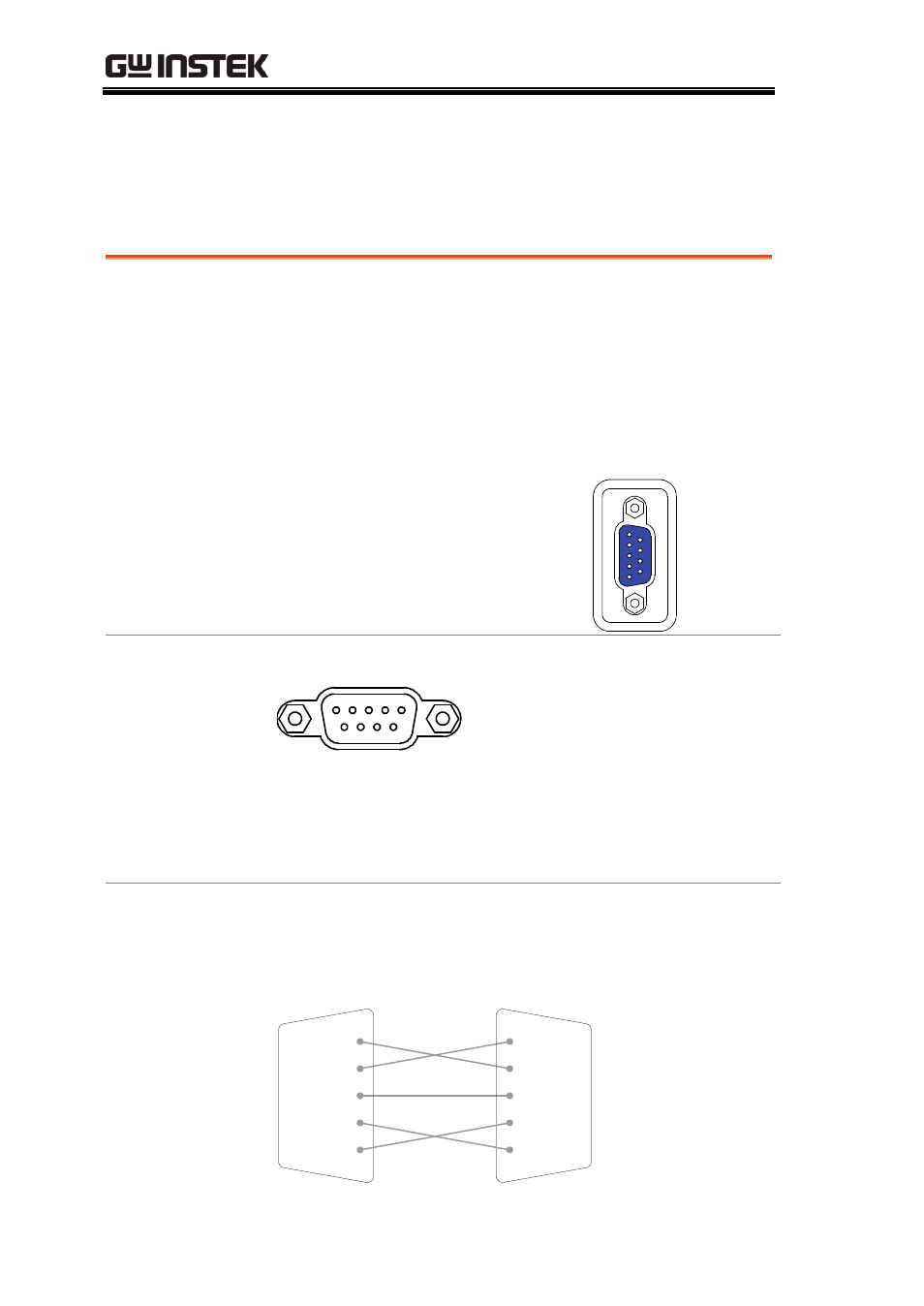

Connect the RS-232C cable to
the rear panel port: DB-9 male
connector.

RS232

Pin assignment

1 2 3 4 5

6 7 8 9

2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
7: RTS (Request to send)
8: CTS (Clear to send)
1, 4, 6, 9: No connection

PC connection

Use the Null Modem connection as in the below
diagram.

LCR-8101

PC

TxD

RxD

GND

Pin2

Pin3

Pin5

RxD

TxD

GND

Pin2

Pin3

Pin5

CTS

RTS

Pin7

Pin8

CTS

RTS Pin7

Pin8
