Z| accuracy chart – GW Instek LCR-8101 (Replaced by LCR-8101G) User Manual
Page 130
LCR-8000G Series User Manual
130

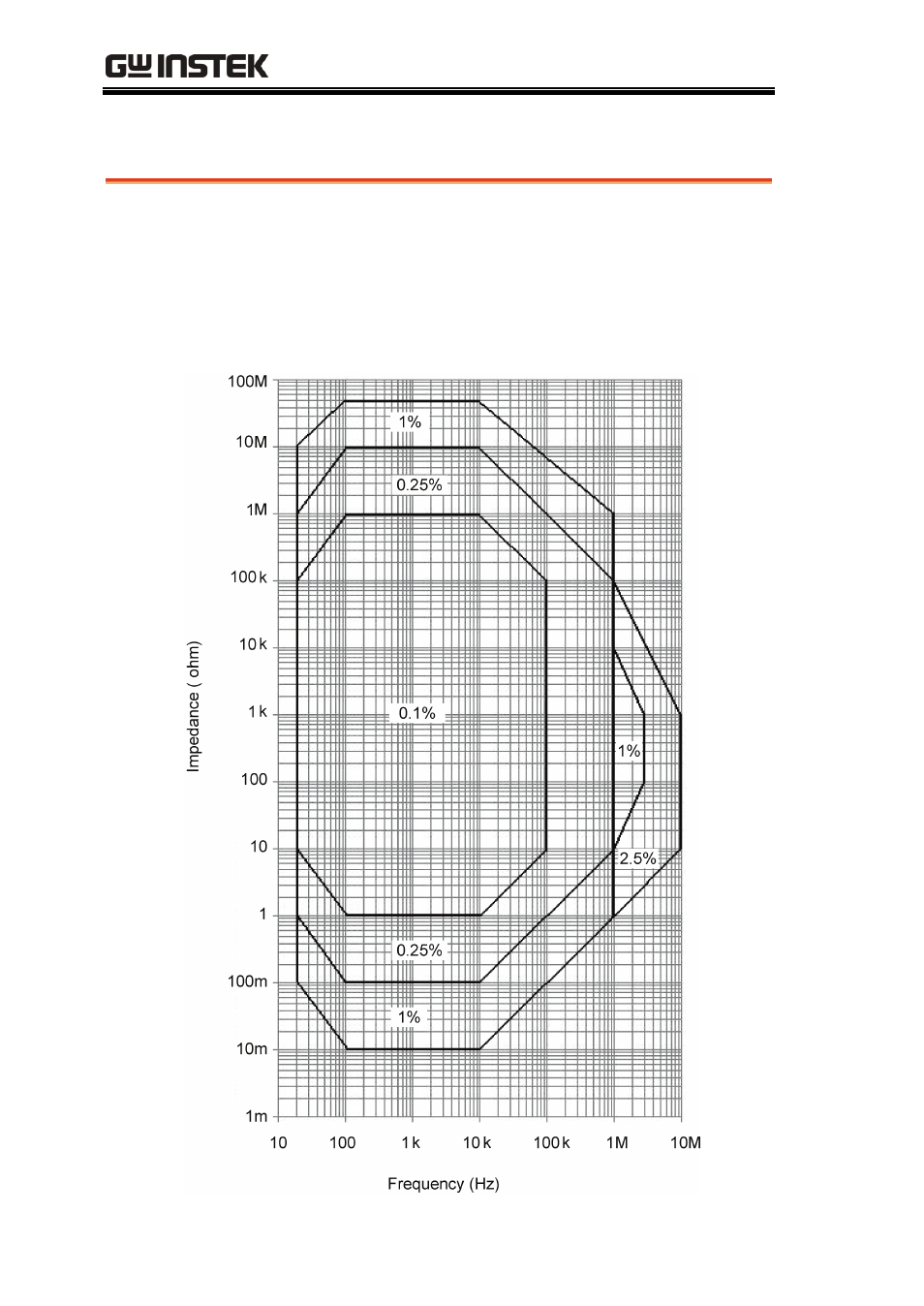

|Z| Accuracy Chart
Over the available frequency bands, the |Z| Accuracy Chart defines
the measurement ranges available at specified accuracies. All curves
assume that Slow measurement speed is used, that the analyzer has
been trimmed at the frequency and level used for measurements,
the factory calibration is valid and that the component under test is
pure.
