GRAPH

MODE

105

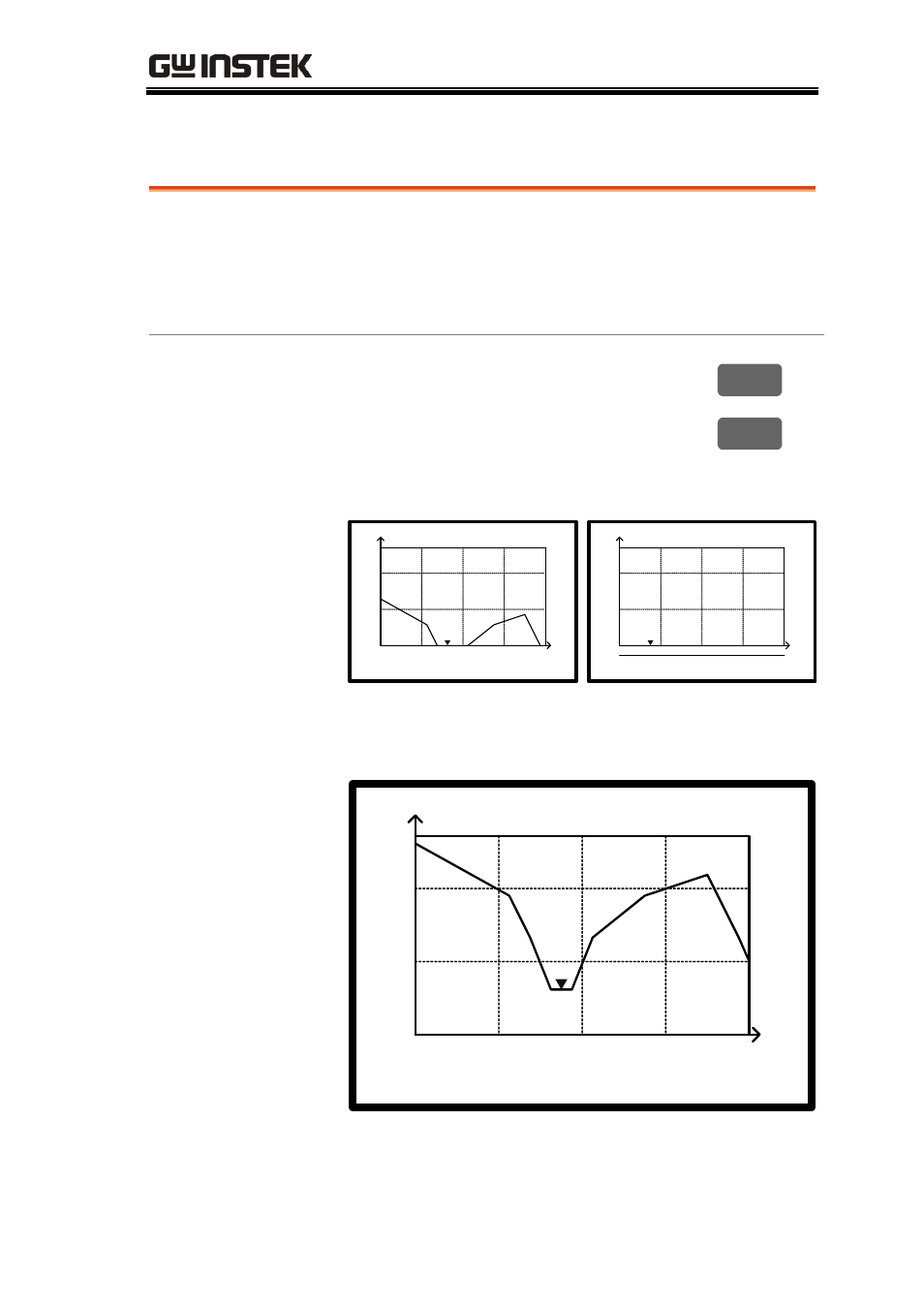

Adjust vertical scale

Background

When the measured data does not fit into the
original vertical scale, use this function so that the
LCR-8000G automatically adjusts the scale to
include the whole plotted data.

Panel operation

1. If part or all of the plotted data are

out of the vertical range, use the
automatic fit function. Press F1
(Function), then F2 (Fit).

F 1

F 2

(Partially out of range)

CAPACITANCE VS FREQUENCY

FUNCTION

RETURN

20.0

40.0

60.0

80.0

100

(Hz)

300.0n

250.0n

(F)

MKR: 32.000 Hz
Cs : 25.000nF

LEVEL: 10.0mV
SPEED:FAST

(Totally out of range)

CAPACITANCE VS FREQUENCY

FUNCTION

RETURN

20.0

40.0

60.0

80.0

100

(Hz)

300.0n

250.0n

(F)

MKR: 32.000 Hz
Cs : 25.000nF

LEVEL: 10.0mV
SPEED:FAST

2. The vertical range is automatically adjusted to

include the whole plotted data.

CAPACITANCE VS FREQUENCY

FUNCTION

RETURN

20.0

40.0

60.0

80.0

100

(Hz)

400.0n

100.0n

(F)

MKR: 60.000 Hz
Cs : 60.000nF

LEVEL: 10.0mV
SPEED:FAST
