LCR-8000G Series User Manual

64

Set parameters

For more detailed descriptions, see Basic measurement, page47.

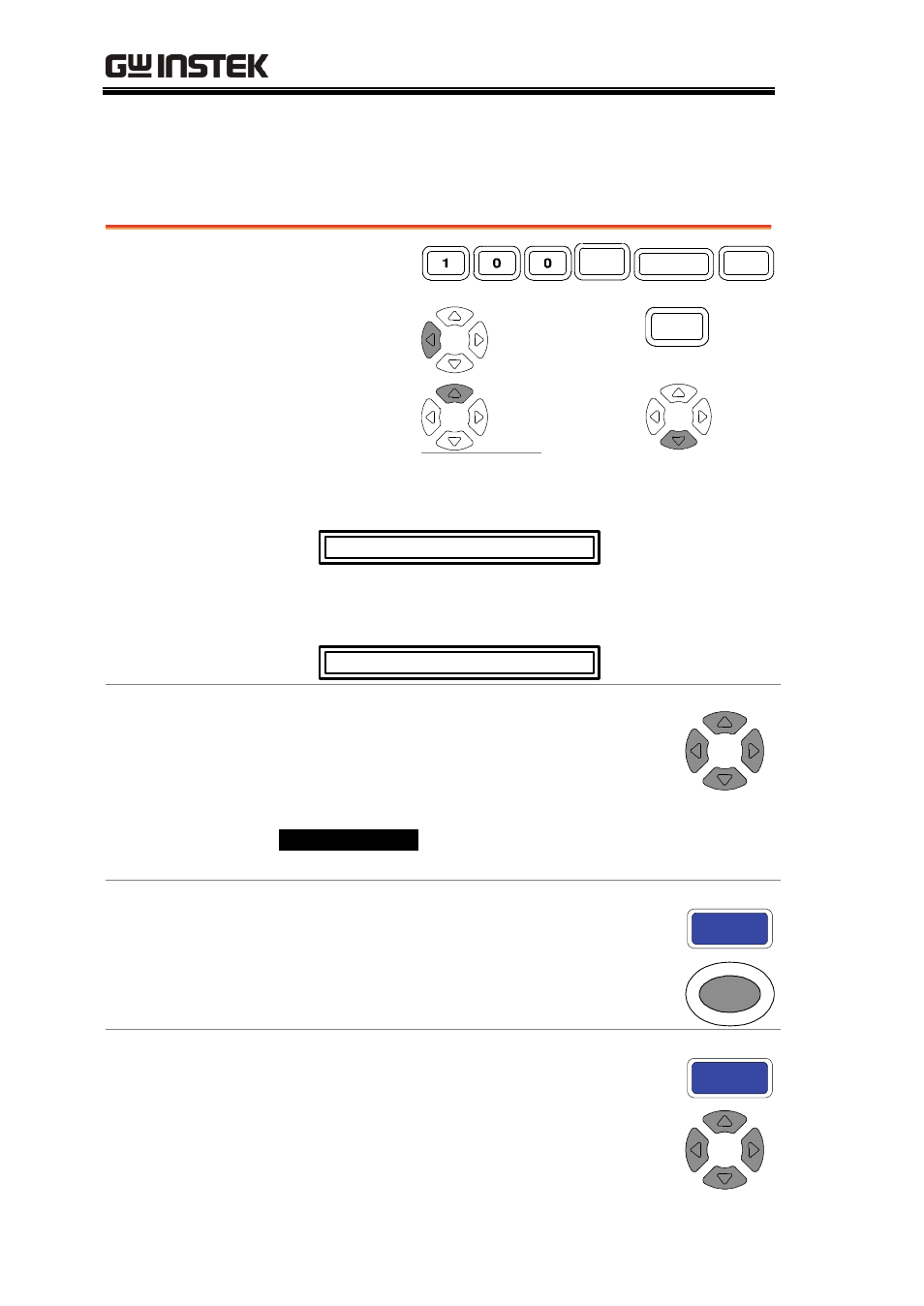

How to edit

Example
100mV

m

V/A

Enter

Backspace

All clear

Clear

Increase

Decrease

When the entered value does not fit in the
range, the nearest available value is selected.

Nearest Available

When the wrong unit (such as Ω) is entered,
the value is cancelled.

Unit Mismatched

Measurement
range (to Auto)

Press the Left/Right key repeatedly to
move the cursor to Range position, and
use the Up/Down key to select Auto (if
necessary).

Speed Slow

Range Auto

Single mode

Press the Sing/Rep key repeatedly to
select Single (manual trigger). To trigger
measurement, press the Trigger key.

Sing/Rep

Trig

Repetitive mode

Press the Sing/Rep key repeatedly to
select Rep (automatic trigger). Press the
Left/Right key repeatedly to move the
cursor to Speed, and use the Up/Down
key to select the update rate.

Sing/Rep
