LCR-8000G Series User Manual

92

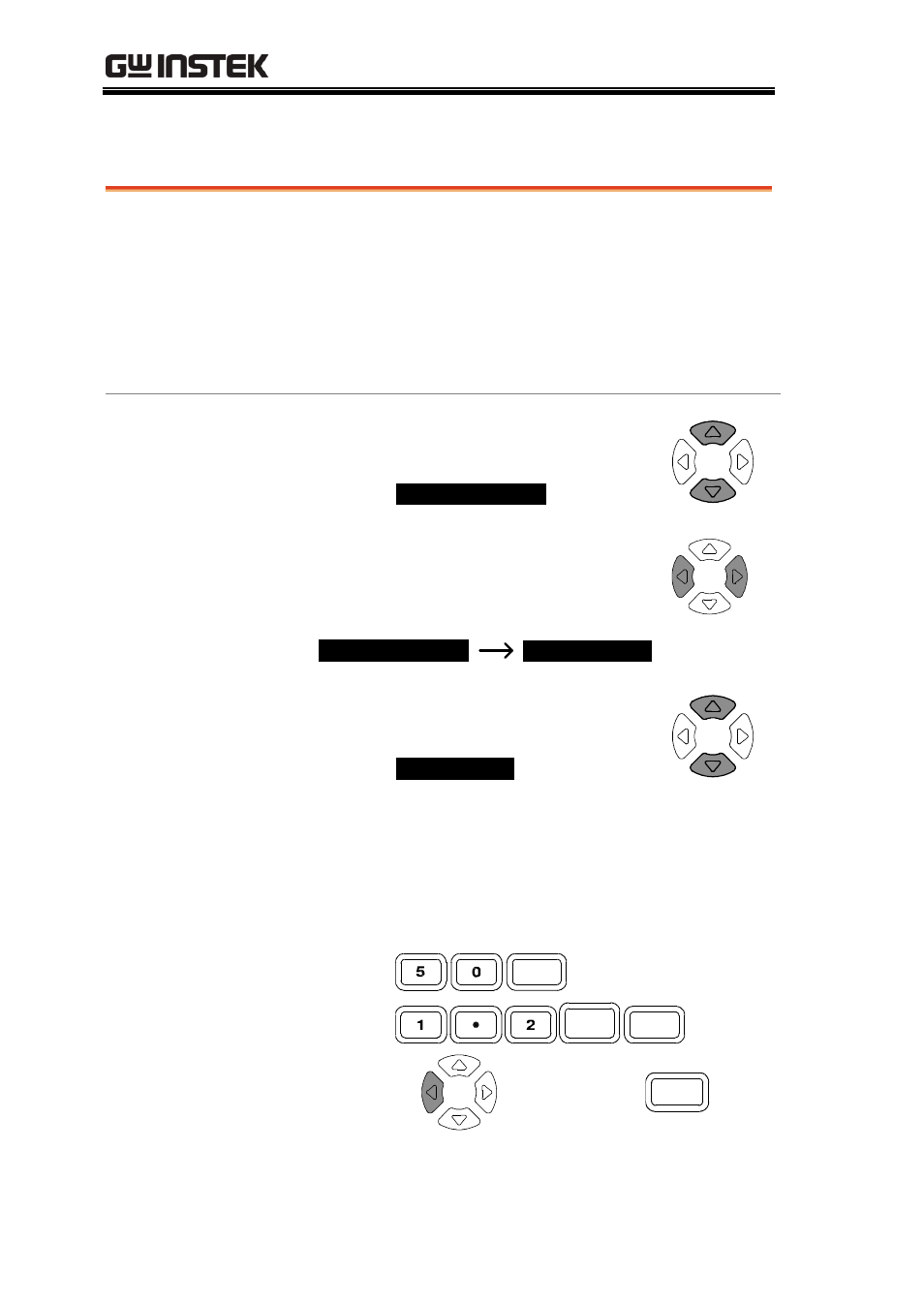

Set horizontal axis (Frequency)

Background

The X (horizontal) axis is selectable from Voltage
and Frequency sweep.

When Voltage sweep is selected: measurement
Frequency is fixed

When Frequency sweep is selected:
measurement Voltage is fixed

Select Frequency

1. Press the Up/Down key and move

the cursor to Sweep.

Sweep:

Drive Level

2. If necessary, press the Left/Right

key to change the sweep setting to
Frequency.

Drive Level

Frequency

Set start
Frequency

3. Press the Up/Down key and move

the cursor to Start.

Start:

:

20.000Hz

Use the numerical keys to enter the
starting Frequency.

Range

20Hz ~ 1MHz/5MHz/10MHz

(stop Frequency must be higher than the start
Frequency)

50Hz

Enter

1.2kHz

k

Enter

Backspace

All clear

Clear

If a wrong unit is entered, the value is cancelled.
