PASS-FAIL

MODE

63

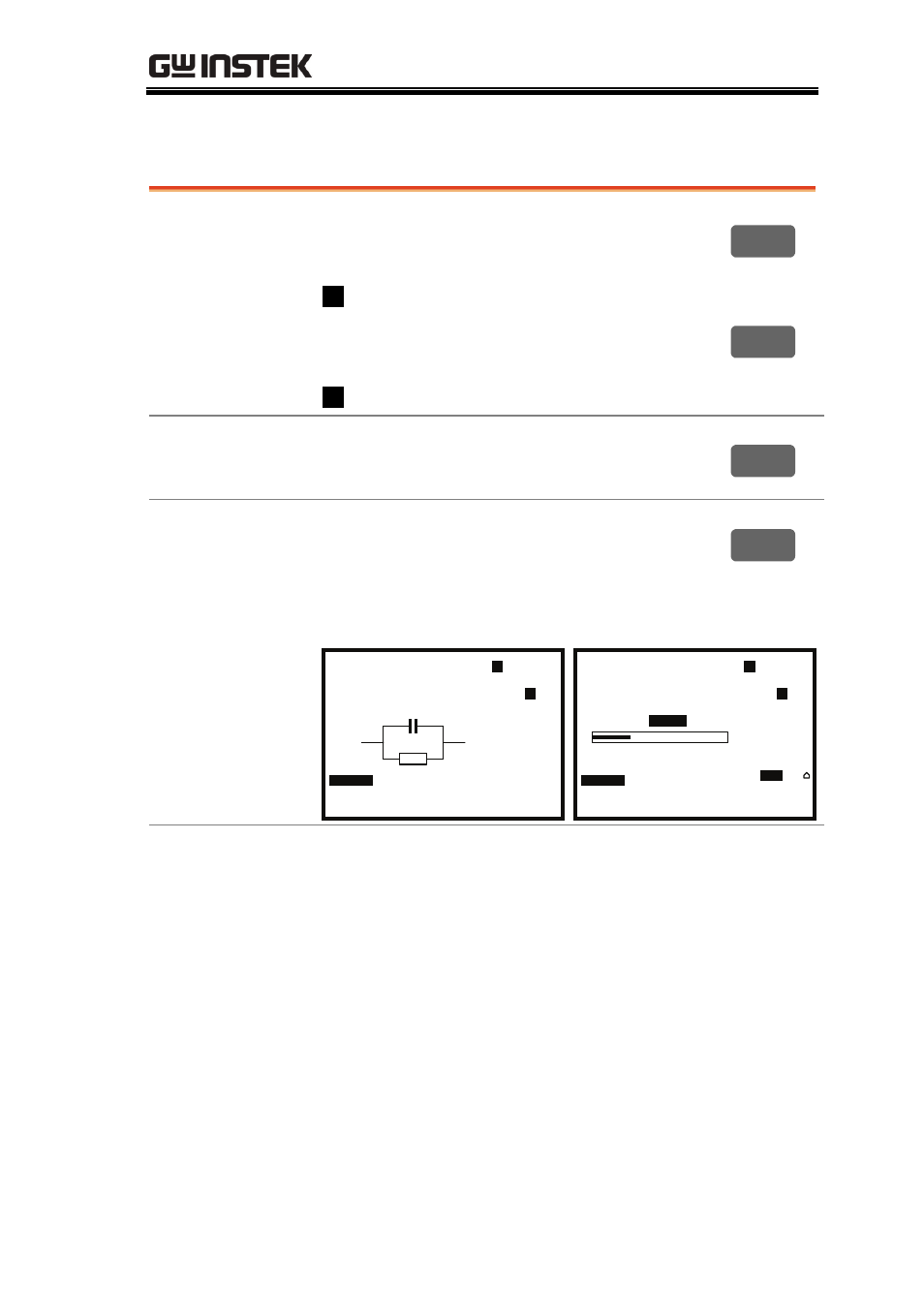

Select test item and scale (Pass/Fail test)

Test item

To select the first measurement item,
press F1 repeatedly.

C

L X B Z Y

F 1

To select the second measurement item,
press F2 repeatedly.

Q

D R G

F 2

Circuit model

To select the circuit model, series or
parallel, press F3 repeatedly.

F 3

Scale

Press F4 (Show/Hide scale) to select
scale (Pass/Fail test).

F 4

Normal

MEASUREMENT MODE

0.01234

0.2179

mF

D

*7

C

L X B Z Y

Q

D

R G

Parallel

Show Scale

50mVac

1.5000kHz

Range

Speed Med

Auto

Vm:549.8mV
Im:724.9pA

Pass/Fail test

MEASUREMENT MODE

0.01234

0.2179

mF

D

*7

C

L X B Z Y

Q

D

R G

Parallel

Hide Scale

Abs

Save Nom

HI

Hi

Lo

20.0mF

0.00mF

50mVac

1.5000kHz

Range

Speed Med

Auto

Vm:549.8mV
Im:724.9pA

%

Normal mode

For Normal (basic) mode details, see page36.
