LCR-8000G Series User Manual

70

Multi-Step Test Configuration

Overview

Background

The multi-step function can configure and run
multiple measurement steps. Maximum 64
programs, 30 steps each, can be programmed and
stored in the instrument.

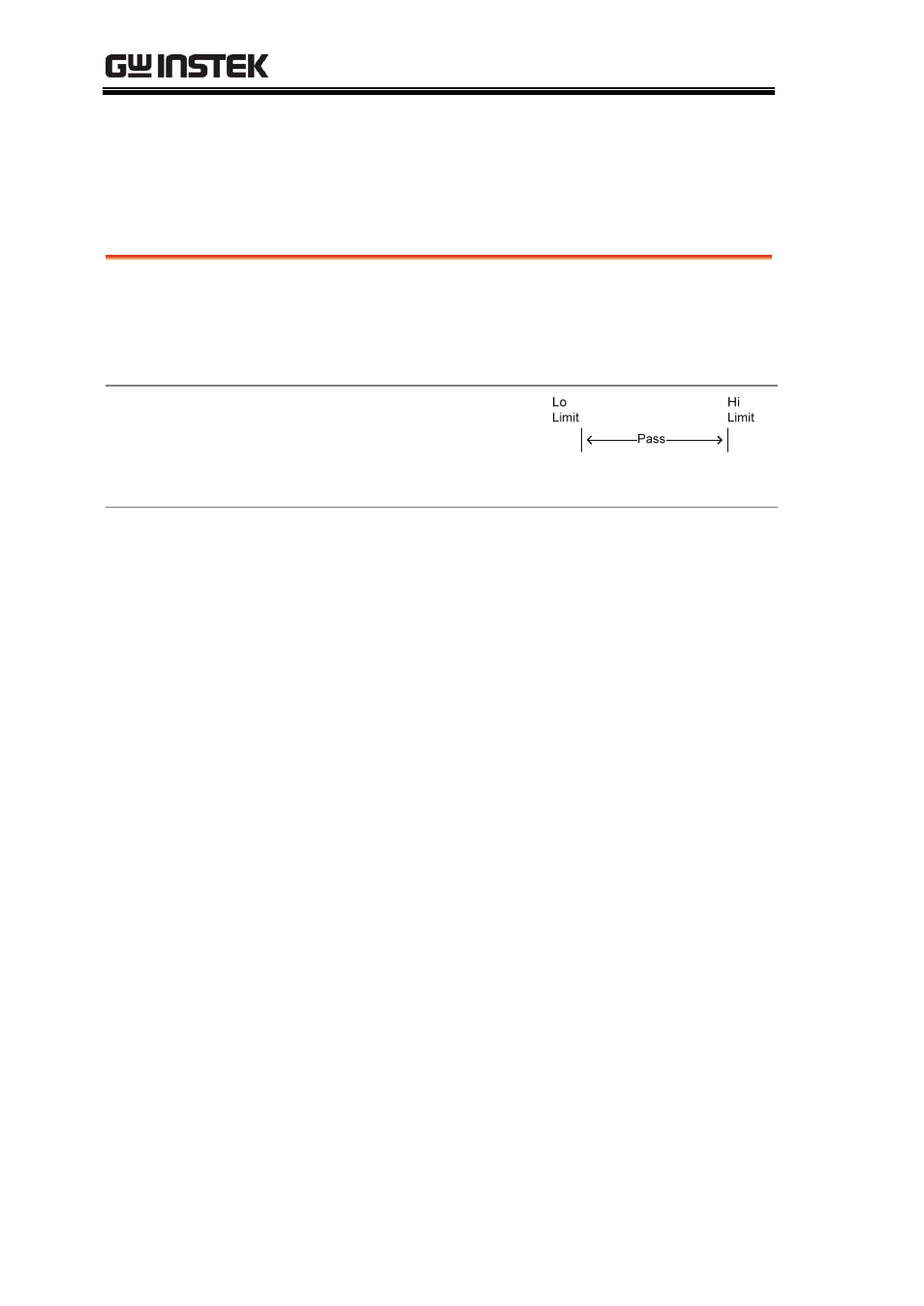

Limit type

Only the absolute limit
testing is available. For
percentage limit test, use
the single mode (page60).

Test item

C

S

Series capacitance B Susceptance

C

P

Parallel
capacitance

G

Conductance

L

S

Series inductance Z Impedance

L

P

Parallel inductance Y Admittance

R

S

Series resistance

R

DC

DC Resistance

R

P

Parallel resistance θ Angle

X

Reactance

For detailed description of each item, see page37.
