Set measurement voltage
Background The measurement voltage, together with the
measurement frequency, defines the electrical
condition of each measurement item. Make sure
the appropriate voltage is selected, according to
the component characteristics.

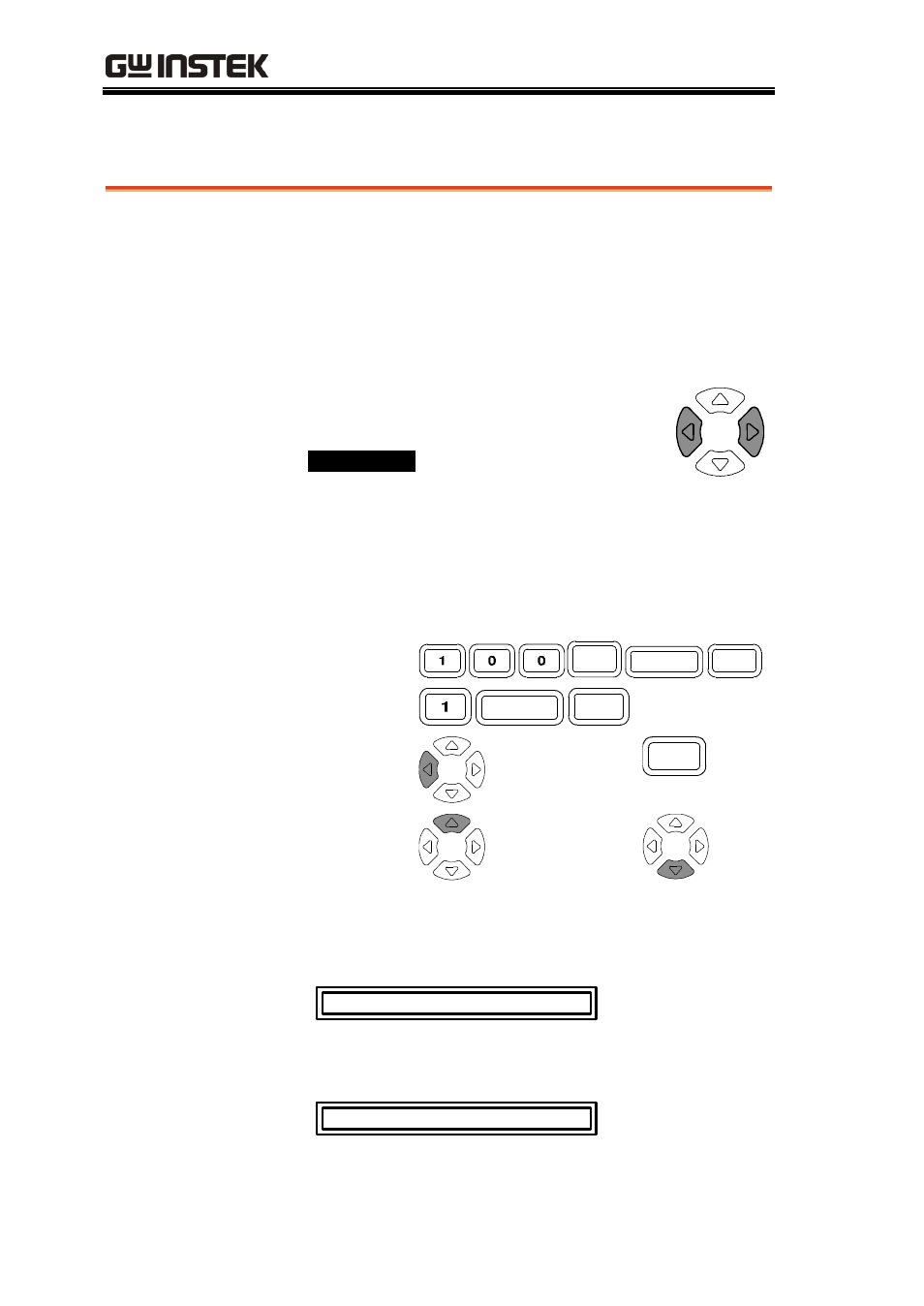

Voltage setting 1. Press the Left/Right key repeatedly
to move the cursor to Voltage.
195.00 2.00 Vac kHz
2. Enter the voltage using the numerical keys.
Range DCV:10mV ~ 2V
AC, 20Hz~≤ 3MHz: 0.01V~2Vrms
AC, >3MHz~10MHz: 0.01V~1Vrms
100mV
m
V/A Enter
1V
V/A Enter
Backspace All clear
Clear
Increase Decrease
When the entered value does not fit in the
range, the LCR-8000G automatically selects the
nearest value.
Nearest Available
When the wrong unit (such as Ω) is entered,
the value is cancelled.
Unit Mismatched
