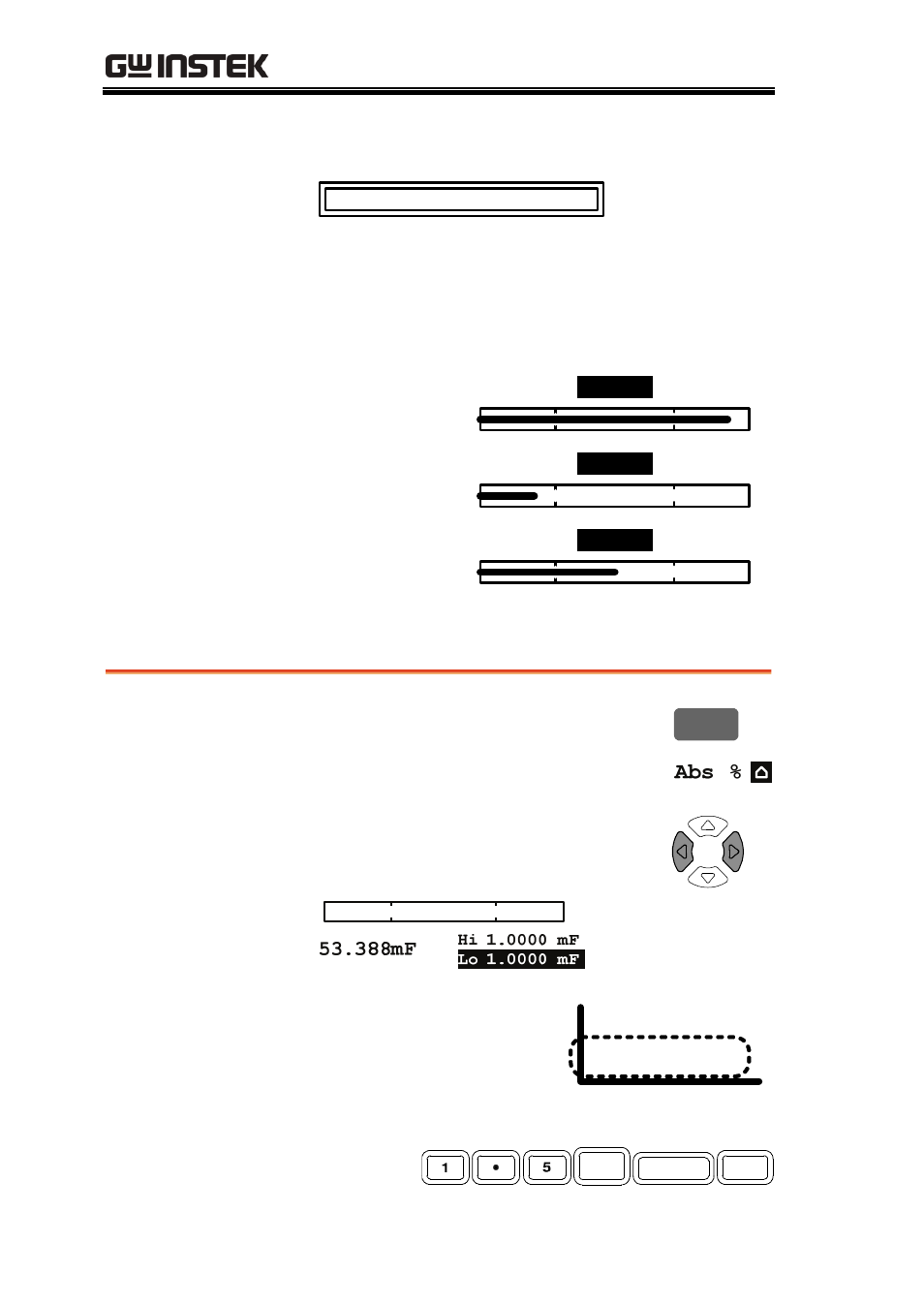

LCR-8000G Series User Manual

68

Hi and Lo values are automatically swapped if
necessary

Hi and Lo Swapped

4. The display updates the Hi/Lo result

immediately. The result is pass if the bar stays
in the central area. The buzzer sounds
accordingly.

Result > Hi

HI

Result < Lo

LO

Lo < Result < Hi
(Pass)

PASS

Run in Delta mode

1. Press F5 to select Delta

measurement.

F 5

2. Use the Left/Right key to move the

cursor to Hi/Lo value for editing.

3. Use the numerical keys

and unit keys to enter the
value. The editing value
appears at the bottom left
corner of the display.

Range

Speed Med

Auto

Lo Lim: 1.5_

1.5mF

Enter

F

m
