CALIBRATION

125

Trim the LCR-8000G

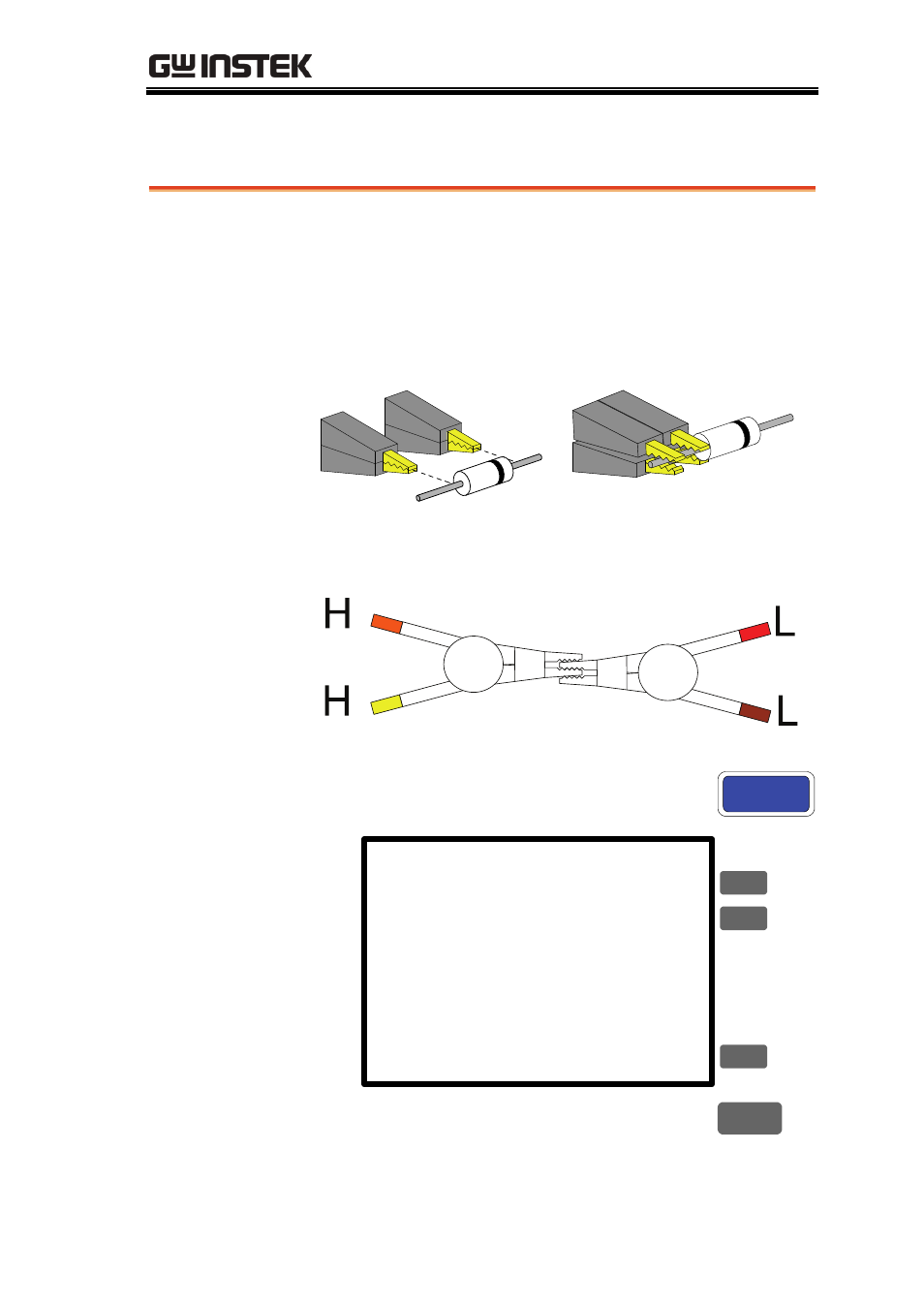

Fixture setting

Prepare the fixture accordingly. (In order to run a
complete trimming, both O/C and S/C trimming
have to be done.)

O/C

trimming

S/C trimming

Alt. S/C
trimming

S

F

S

F

Panel operation

1. Press the Calibration key. The

calibration mode menu appears.

Calibration

CALIBRATE MODE

O/C Trim

S/C Trim

F 1

F 2

F 6

MEASURE

* To go back to the measurement

mode, press F6 (MEASURE).

F 6
