E-21
IM 01R01A01-01E 9th Edition : May 31, 2013-00
fieldbus), a PROFIusb from Softing (for PROFIBUS), Infrared Adapter, IR224UN-LN96 9600bps
(for ISA100) and YFGW Gateway (for ISA100), and connect them to the bus to which the field
device is connected.
Built-in Connection can be used for both Basic and Advance.

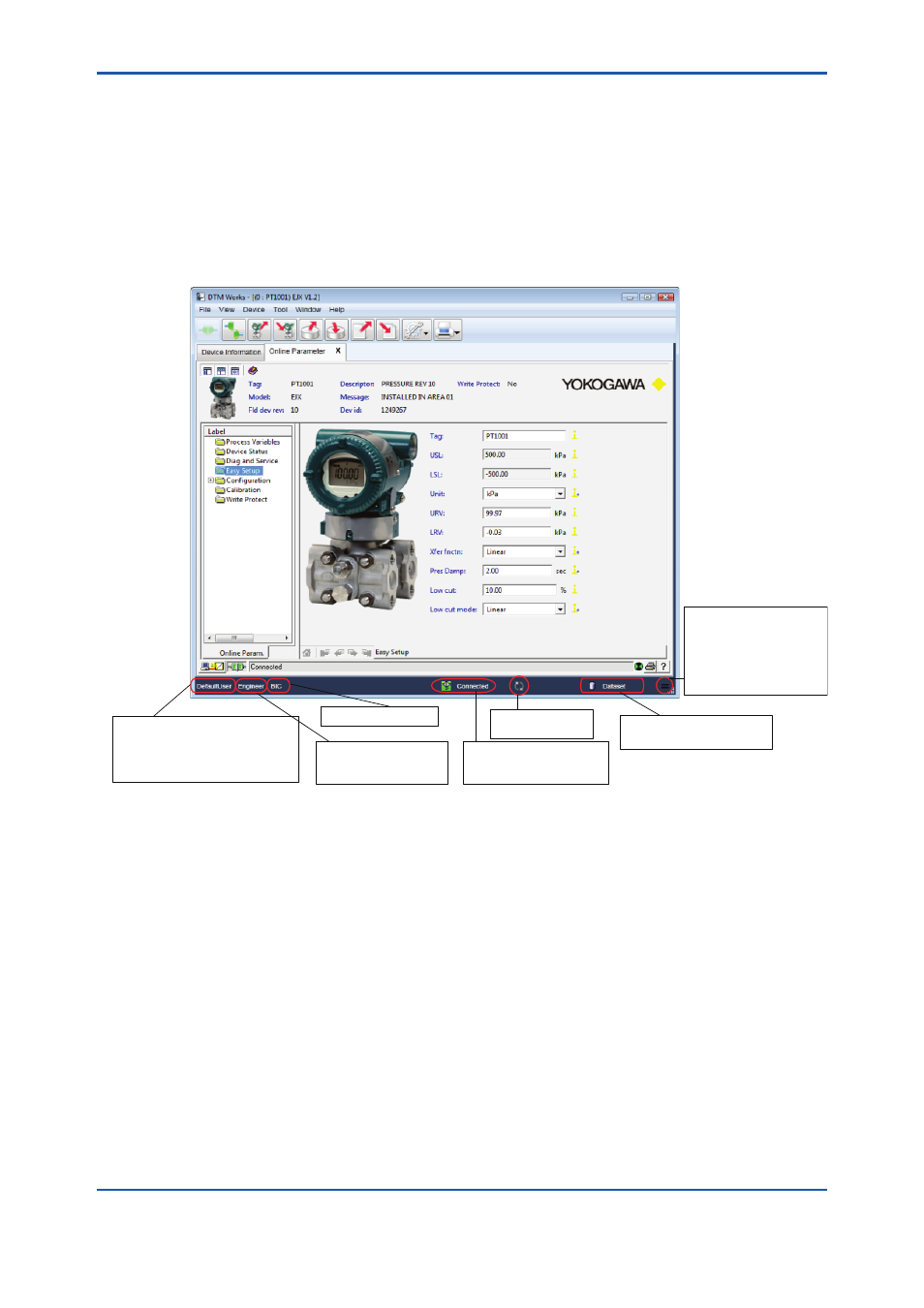

 The Definition of DTM Works (Frame Application)
 DTM Works (BIC Mode)
E030202E.ai
The “equal” icon will only be
shown after the complete data
set of device is loaded to the
DTM or vice versa. No icon will
be displayed in case no device
data set is available (e.g. Comm
DTM).
Indicates the active
communication
Displays the status of
communication with the device
(Connected or Disconnected)
Displays the mode (BIC)
A user name: “Default user” only
on FieldMate Basic. For FieldMate
Advance, it may be the Administrator,
Default user, or a user name registered
through the user management function.
The user level of operational
permission is specified as
“Engineer” in FieldMate.
Displays the source of the data
(Device data or Instance data)
Figure E-3-4 DTM Works (BIC Mode)
 Relation between Segment Viewer update and DTM Works
In BRAIN, PROFIBUS and ISA100 (Infrared), while the related DTM is open, Segment Viewer
update is not effective. Close DTM and update Segment Viewer.
