 Scanning Projects with Comm DTMs or Gateway DTMs, and Device DTMs
Follow these steps to scan a project that is created with communication DTMs or gateway DTMs,
and device DTMs:
1. From Segment Viewer in UDC mode, expand the FDT project, and select the
communication or gateway DTM.
The device DTMs that are associated with the selected communication or gateway DTMs
appear on the right pane.

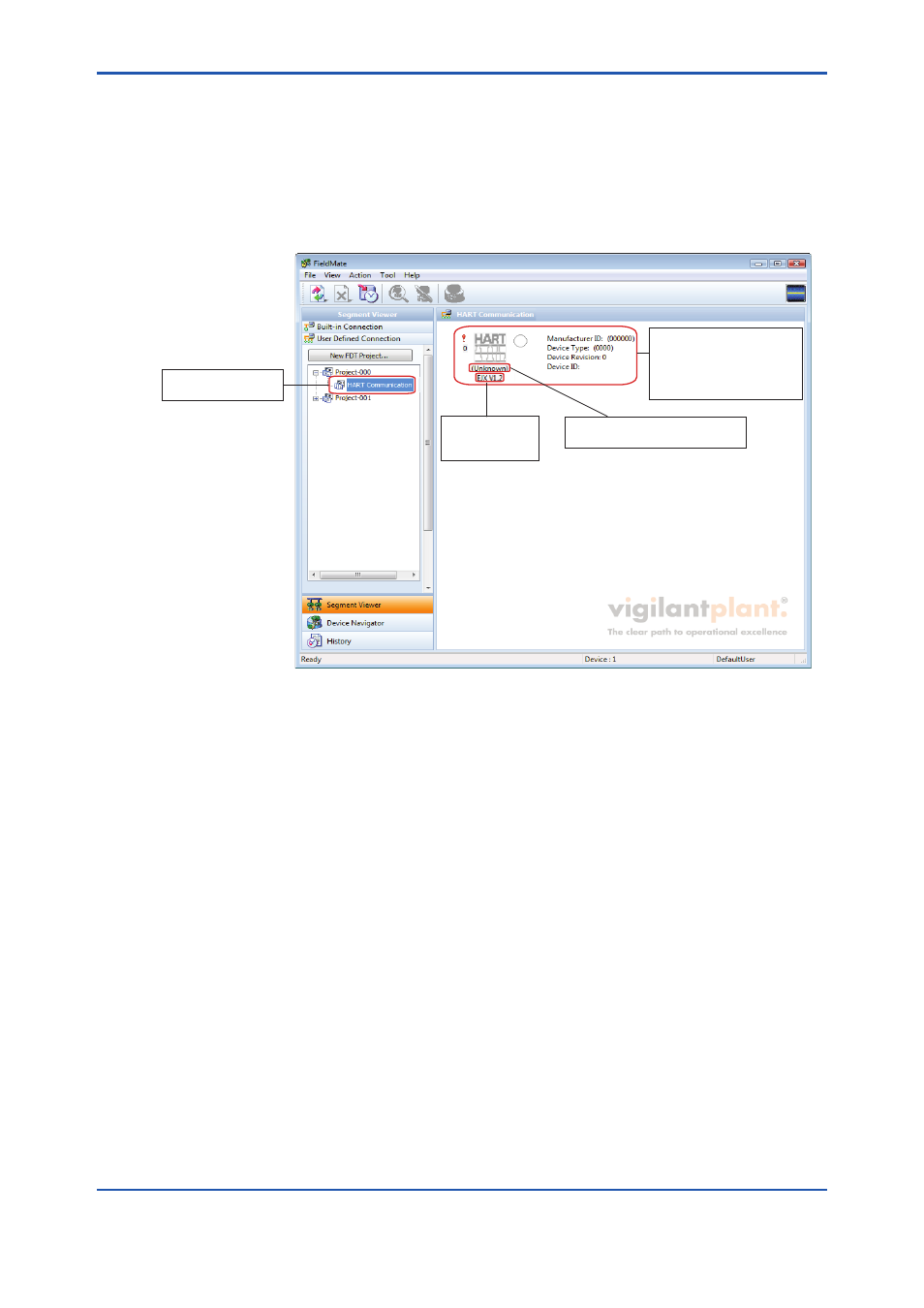

F050205E.ai
Select the
communication DTM.
The device tag
that is configured
in DTM Works
Before the scan operation starts,
(Unknown) is displayed.
Device DTMs that are
associated with the selected
communication DTM, with
device information having
no device values
Figure F-5-13
2. Click the [Update] button.
The live device information for the device connected to the configured device address is
updated. Other devices that are connected to FieldMate at other device addresses also
appear on the right pane.
