C-3 system configuration/connection examples, Brain – Yokogawa FieldMate User Manual
Page 42
C-3
IM 01R01A01-01E
9th Edition : May 31, 2013-00
C-3 System Configuration/Connection
Examples

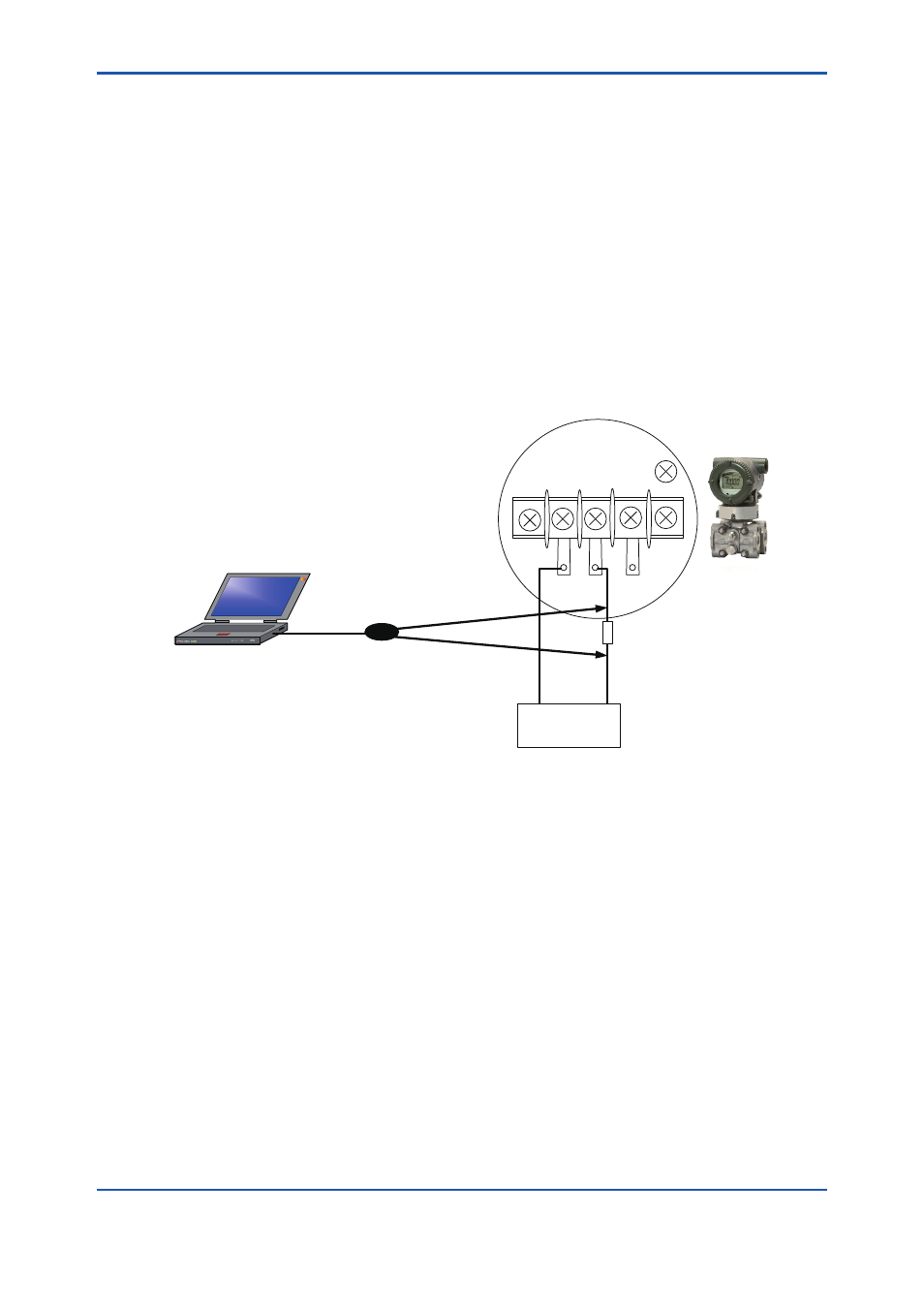

The following shows some example hardware setups for operating FieldMate with the
pressure transmitter connected.
BRAIN
Required Components
• BRAIN EJA Pressure Transmitter
• 24 VDC Power Supply
• Load Register (250Ω)
• USB FieldMate Modem
C030101E.ai
+
+
-
SUPPLY
CHECK
24VDC Power Unit
Load
Register
+
-
PC/FieldMate
USB
USB
FieldMate
MODEM
EJA
Figure C-3-1
BRAIN Hardware Setup Sample
