 PROFIBUS Device
In the case of using a PROFIusb from Softing as a PROFIBUS communication card, direct
connection communication with the PROFIBUS device is supported.
A PROFIBUS device is displayed in Segment Viewer.
A list of PROFIBUS devices in the PROFIBUS network (*) is displayed.
* : Up to 127 devices (subject to the PROFIBUS specification).
Only PROFIBUS devices in the PROFIBUS DP network to which the PROFIusb is connected are
displayed.
The following shows the display items.
Item: Address, IDENT Number, Vendor, Model (Device Type), Device ID.
E020104E.ai
IDENT Number.0x070d
Vendor: YOKOGAWA
Model: EJA(0x070d)
Device ID: PB37070DJ0000902
34
Displays the IDENT number,
vendor name, model name
and Device ID.
Click this to execute the
Device Setup menu item and
start up DTM Works.
Displays the self-diagnostic
result for the device.
Displays the
device address.
PT-101
Displays the
device tag.

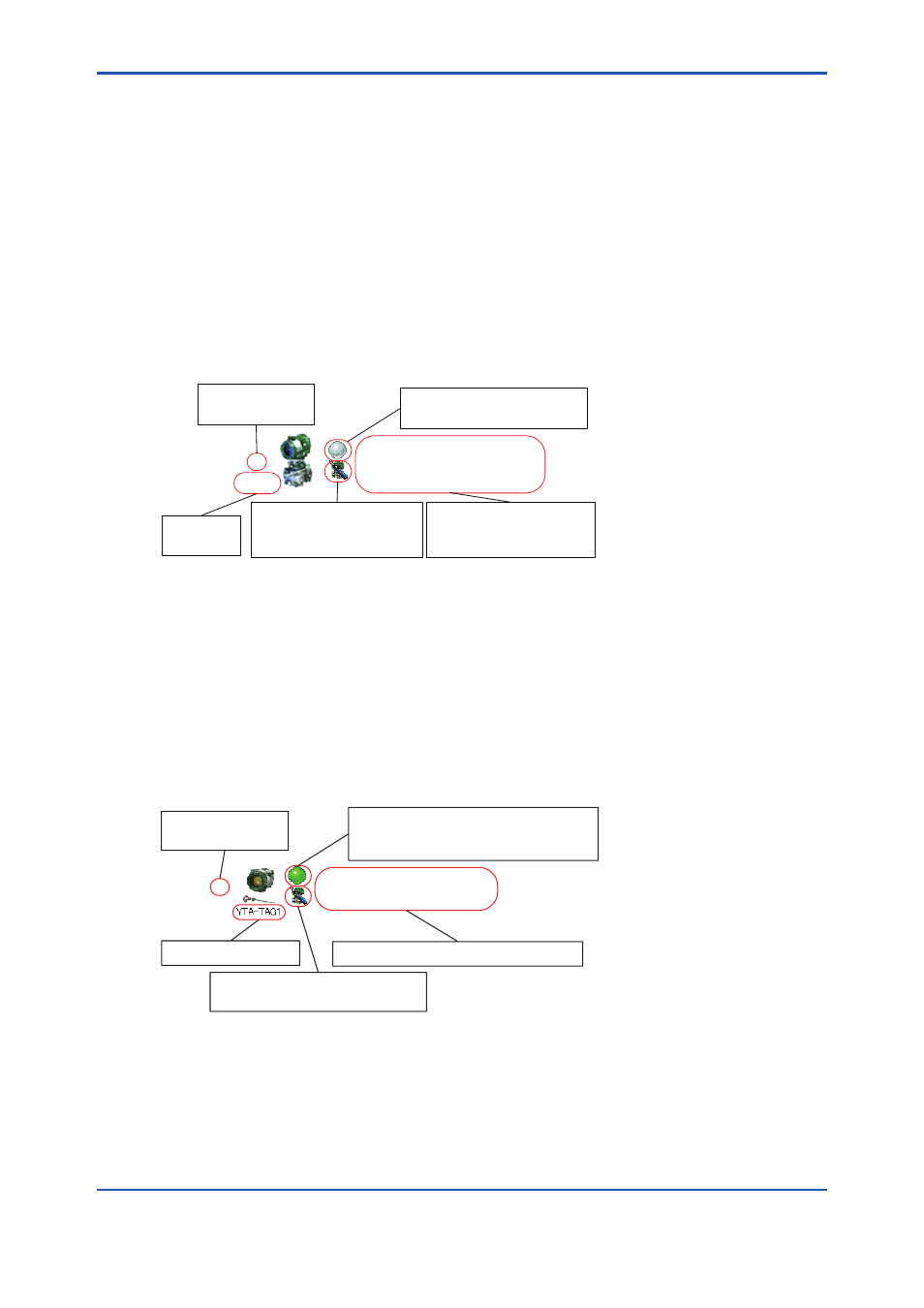

Figure E-2-4 Displaying a PROFIBUS Device in Segment Viewer
There is exception that Device Tag, Device Status and Device ID are not displayed due to
manufacturer’s device structure. In this case, it shows “Not Detected”.
Vendor may also show the Manufacture ID only.
 BRAIN Device
Only one device is displayed.
A BRAIN device icon, vendor (character string), tag, model (character string), and self-diagnostic
result are displayed.
E020105E.ai
Vendor: YOKOGAWA
Model: YTA
0
Displays the vendor name and model name. Displays the device tag.
Click this to execute the Device Setup
menu and start up DTM Works.
Always displays 0 as
a device address.
Displays the status icon in red or green. It is
not displayed in yellow. When you click it,
nothing displays.
Figure E-2-5 Displaying a BRAIN Device in Segment Viewer
 IS100 Devices
Please refer to Part I.
