I-35
IM 01R01A01-01E 9th Edition : May 31, 2013-00

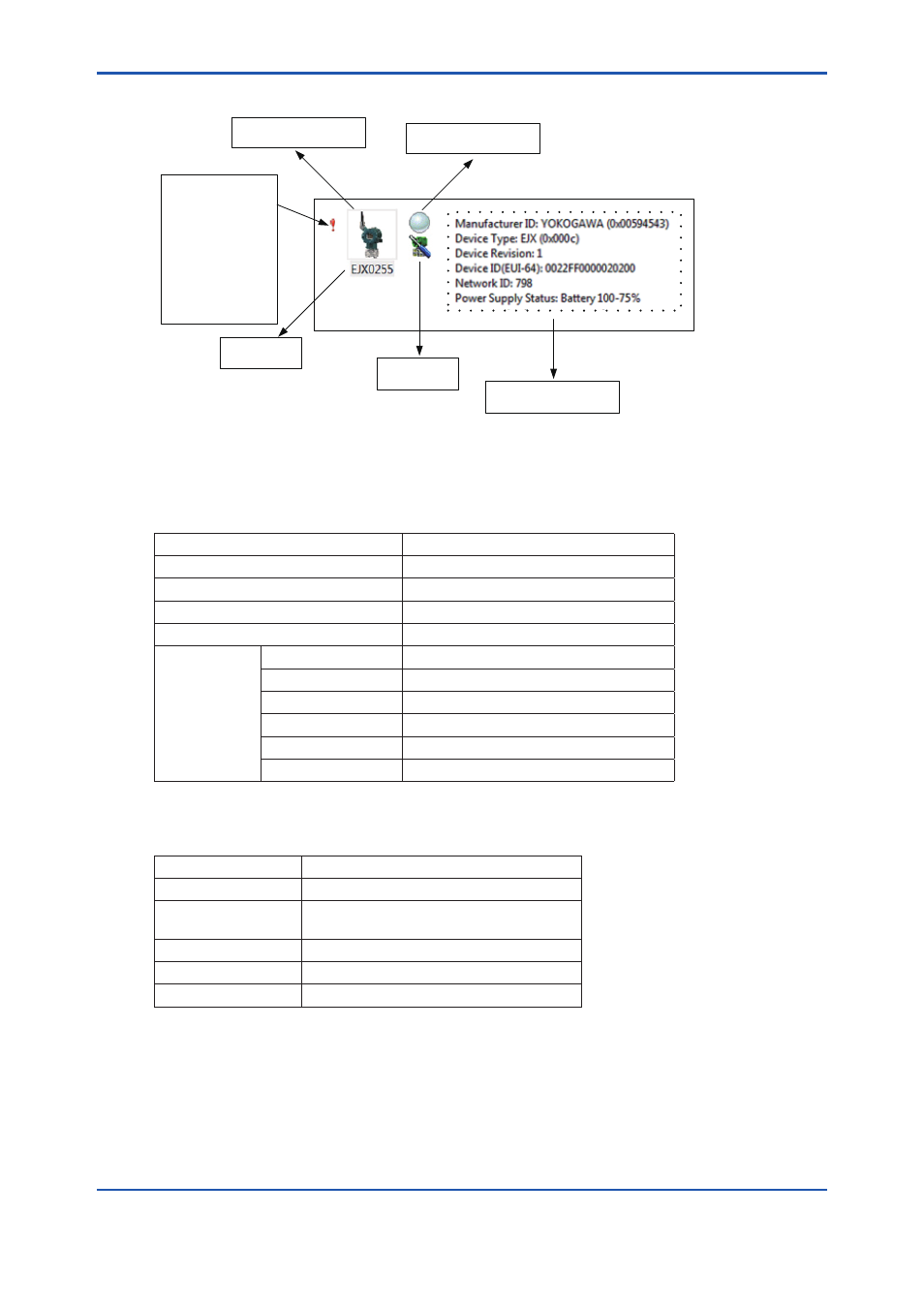

Communication with the device is successfully completed, the following information is shown.
I050602E.ai
Device Information
Device Status
Device Icon
Device Tag
Device
Setup
Displays a red “!”
icon for a device
not registered in
the database.
Yellow icon is
displayed when
difference of
device information
is found.
Figure I-5-6
Information on the display shows in the following table.
Table I-5-3
Item Meaning
Device Icon Device represented Icon
Device Tag Device Tag
Device Status Device opration status
Device Setup Setting tool start (DTM Works start)
Device info
Manufacture ID Device manufacture and ID
Device Type Device Type Name
Device Revision Device revision
Device ID (EUI-64) 64 bit address to identify the device
Network ID ID to identify network
Battery Life Battery remaining capacity
The color of Device status shows in the following table.
Table I-5-4
Color Device opration status
Green Normal.
Yellow
Warning. Operation can continue.
(Configuration error)
Red Abnormal. Inspection required.
Gray Others, communication error.
White Icon setting is off.
Battery Life has the following four statuses and remaining battery capacity indicators. In case
of battery power is off, infrared communication cannot be established and device information
cannot be accessed, either.
