 Window
F030103E.ai
For tab name, type and number are
shown. Block tag is not shown.
Editable parameters whose values are different between the left and right
are displayed in magenta. Read-only parameters whose values are different
between the left and right are displayed in yellow.
The check box ( ) is
displayed for write-
enabled parameter.
The check box ( ) is
checked if parameter
values have been
changed.
If it is checked, it means
it is available for
download.
If th e check boxes ( ) in th e tab in display are hecked, the
corresponding parameters are written in the order displaed on the
screen. Then read-back is executed only for the written parameters and
the Work area is updated.
Write-enabled Parameters with different values on right and left are
indicated in magenta.
Loads parameter values
from file/database and
displays them on the
right part of the screen.
Device Values area shows
parameter values of the connected
device at the time of startup.
Work area shows parameter
values loaded from the connected
device or file/database.
Parameter values of the connected
device (left part of the screen) are
exported to file/database.
Displays detailed
information about the
parameters shown on the
left and right part of the
screen.
For the tab in display, load parameter
values from the device and update
the Device Values area.
Copies parameter values of the
connected device (left part of the
screen) to the right part of the screen.
Date and time when
parameters were
obtained, and data
source (*) are shown.
(*): Any of Device or
Database 1 to Database
5 is shown.
When you attempt to
save parameters,
"Reason" is shown.
When the data source is
Device, the field is empty.
Indicates Device Mode.

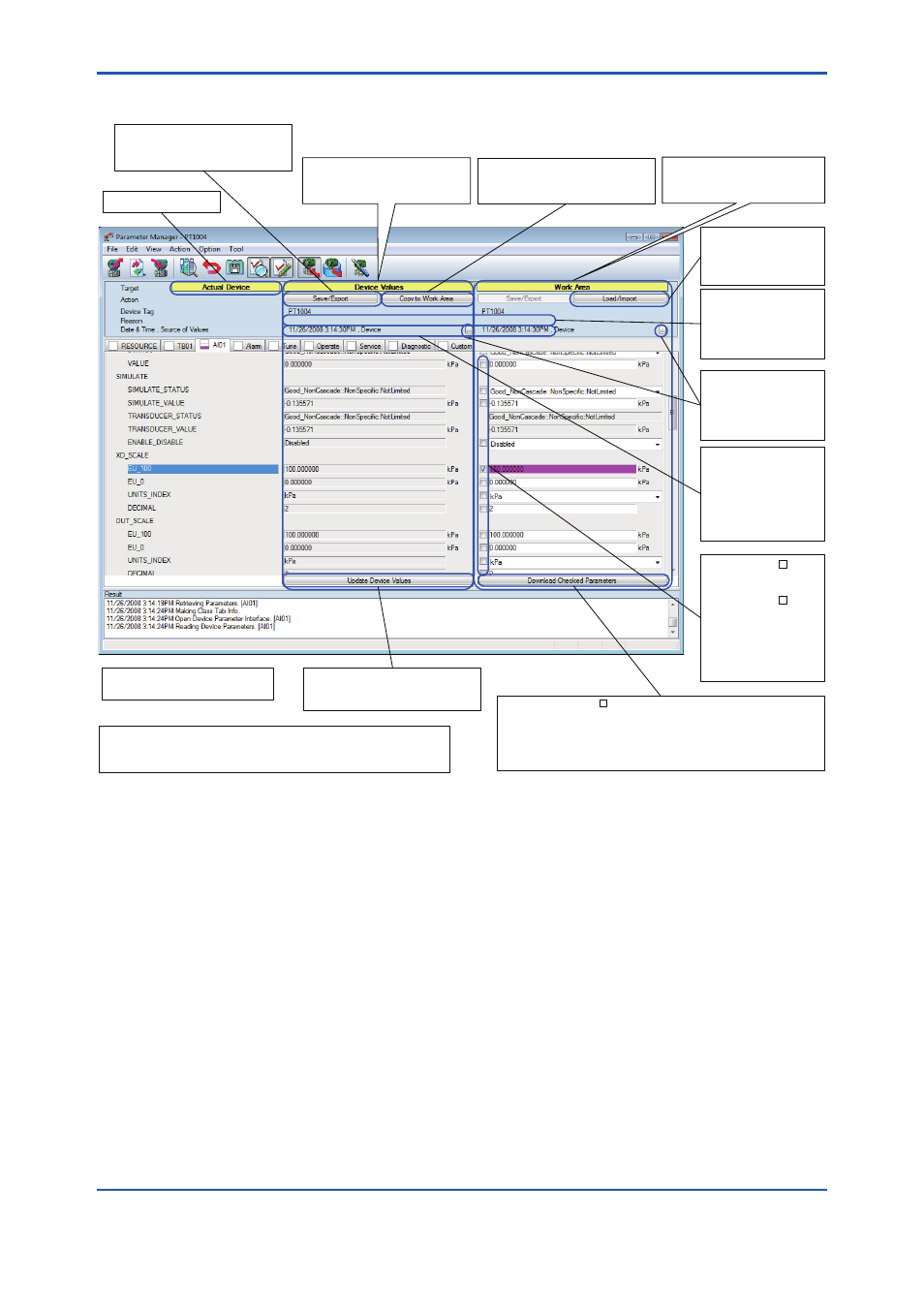

Figure F-3-3 Parameter Manager Screen (Device Mode)
