B-20
IM 01R01A01-01E 9th Edition : May 31, 2013-00
B-4 Notes on PROFIBUS
PROFIBUS Interface Configuration is required after FieldMate and communication driver
installation. The following initial setup needs to be defined based on the PROFIBUS
communication driver.

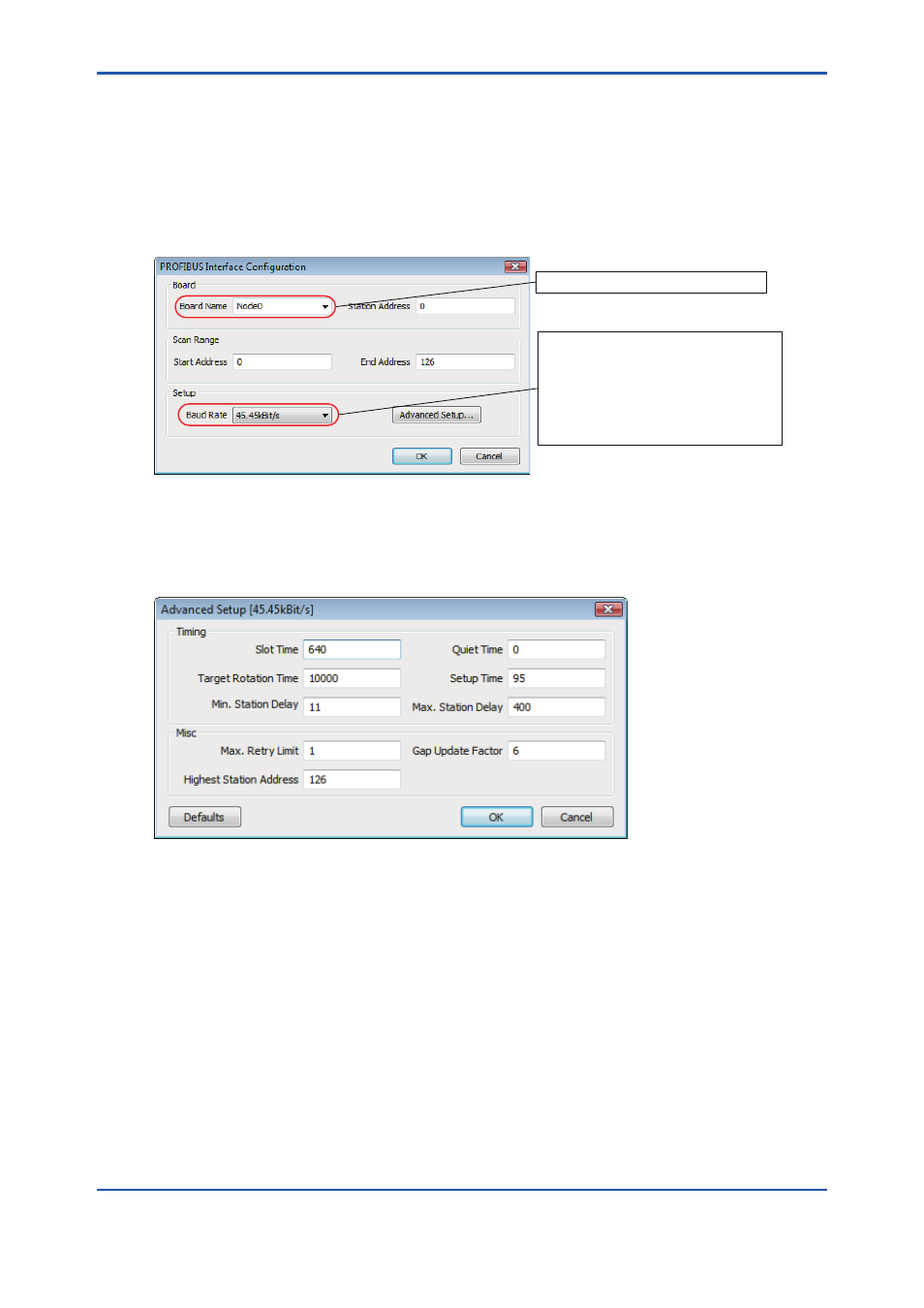

1. Start FieldMate and navigate through [Tool] - [PROFIBUS Interface Configuration…].
B040101E.ai
Select the board recognized.
Set a proper baud rate.
Example:
When a PA device is connected via a DP/PA
coupler (Siemens), the baud rate is 45.45 kbit/s.
When a PA device is connected via a DP/PA
coupler (P+F), the baud rate is 93.75 kbit/s.
Figure B-4-1 PROFIBUS Interface Configuration
2. Select [Advanced Setup…] and open the following window. It is advisable to make sure the
following busparameter setting are same as ones of Class 1 Master on PROFIBUS network
to which FieldMate is connected before operation.
B040102E.ai
Figure B-4-2 Advanced Setup
