Main window – Yokogawa FieldMate User Manual
Page 52
E-2
IM 01R01A01-01E
9th Edition : May 31, 2013-00
Main Window
The main window has the following two types of view, which can be switched between the two
windows by selecting a selection bar.
1. Segment Viewer
Displays a list of devices in the direct BRAIN/HART/FOUNDATION fieldbus H1/PROFIBUS/
ISA100 segment.
2. History
Displays all operation logs.

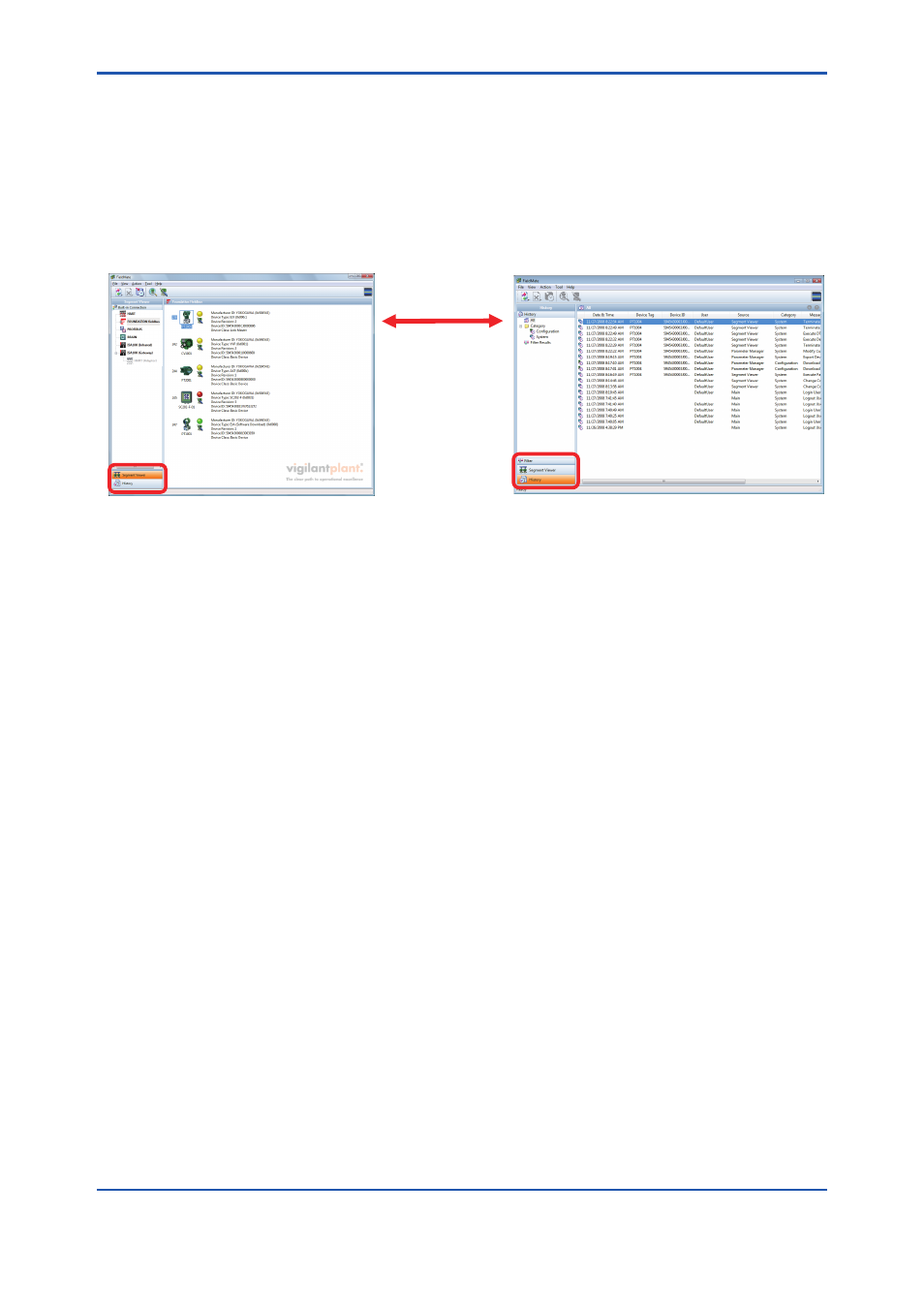

E010102E.ai
The Segment Viewer displays the devices that are directly
connected to the segment as well as the operation status
of the device in a comprehensible manner.
The main operations performed in FieldMate
are recorded in the History.
Switch windows by
the select bar
Select bar
Select bar
Figure E-1-2
Main Window
