H-10

IM 01R01A01-01E

9th Edition : May 31, 2013-00

H-4-1-5 Long Tag Mode

H040106E.ai

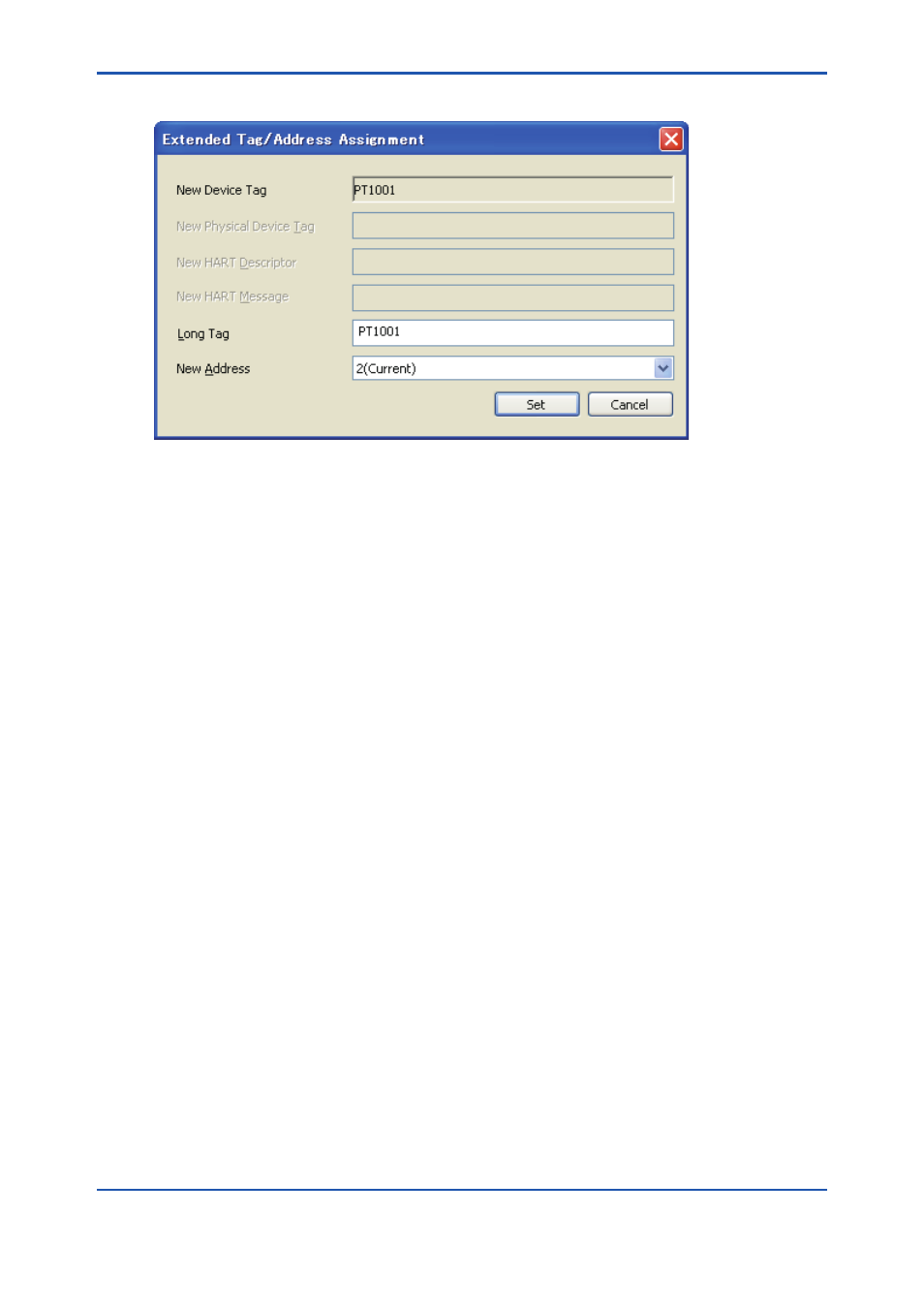

Figure H-4-6

Tag/Address Assignment; Long Tag Mode

• New Device Tag
The current device tag is displayed.
The change in New Long Tag is reflected, but data cannot be directly input here.
• New Physical Device Tag
It is always blank and cannot be changed.
• New HART Descriptor
It is always blank and cannot be changed.
• New HART Message
It is always blank and cannot be changed.
• Long Tag
The parameters of current Long Tag are displayed, and they can be changed.
The change is reflected in the New Device Tag.
• New Address
The current Polling Address is displayed, and it can be changed.
