I-2-3 Gateway Setting
Open the window from Tool, and select ISA100 (Gateway) Interface Configuration.
I020301E.ai
1
2
5
4
3

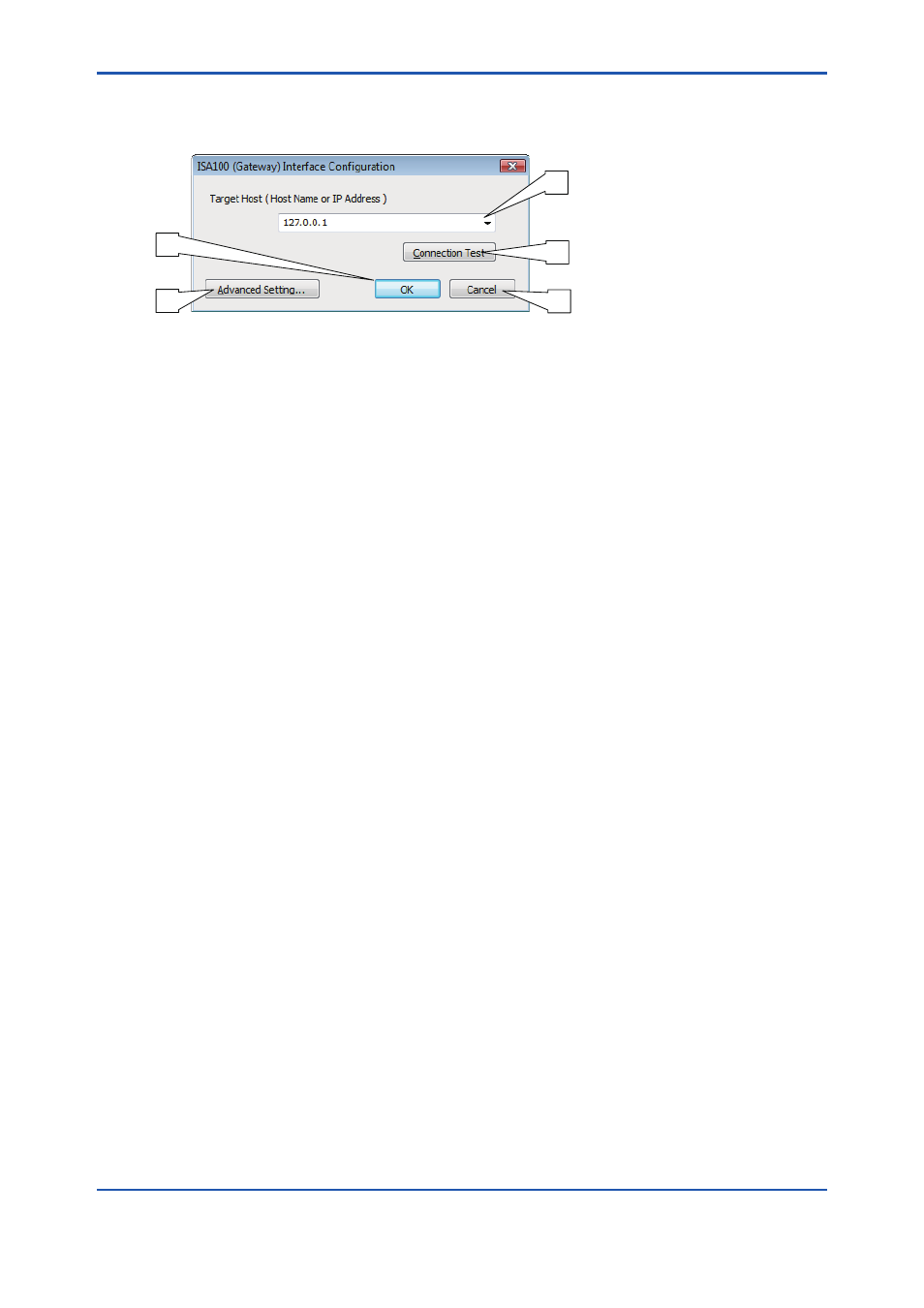

Figure I-2-3 ISA100 (Gateway) Interface Configuration
[Description of functions]
1. Target Host (Host Name or IP Address) pull-down menu
Enter the host name or IP address of the gateway.
Pressing “OK”, up to five entered host names (IP addresses) remain as history.
2. “Connection Test” button
Tests whether it is possible to connect to the gateway according to an entered Host name or
IP address.
“OK” button will save the entered information, actual connection will not be performed
Connection Test is prepared to check whether the Gateway with the entered IP address or
Host name exists.
Result of Connection test will be shown as below.
3. Advanced Setting
Setting of ISA100 Gateway.
4. “OK” button
Save the entered setting information
5. “Cancel” button
Discards the entered information and closes the dialog.
