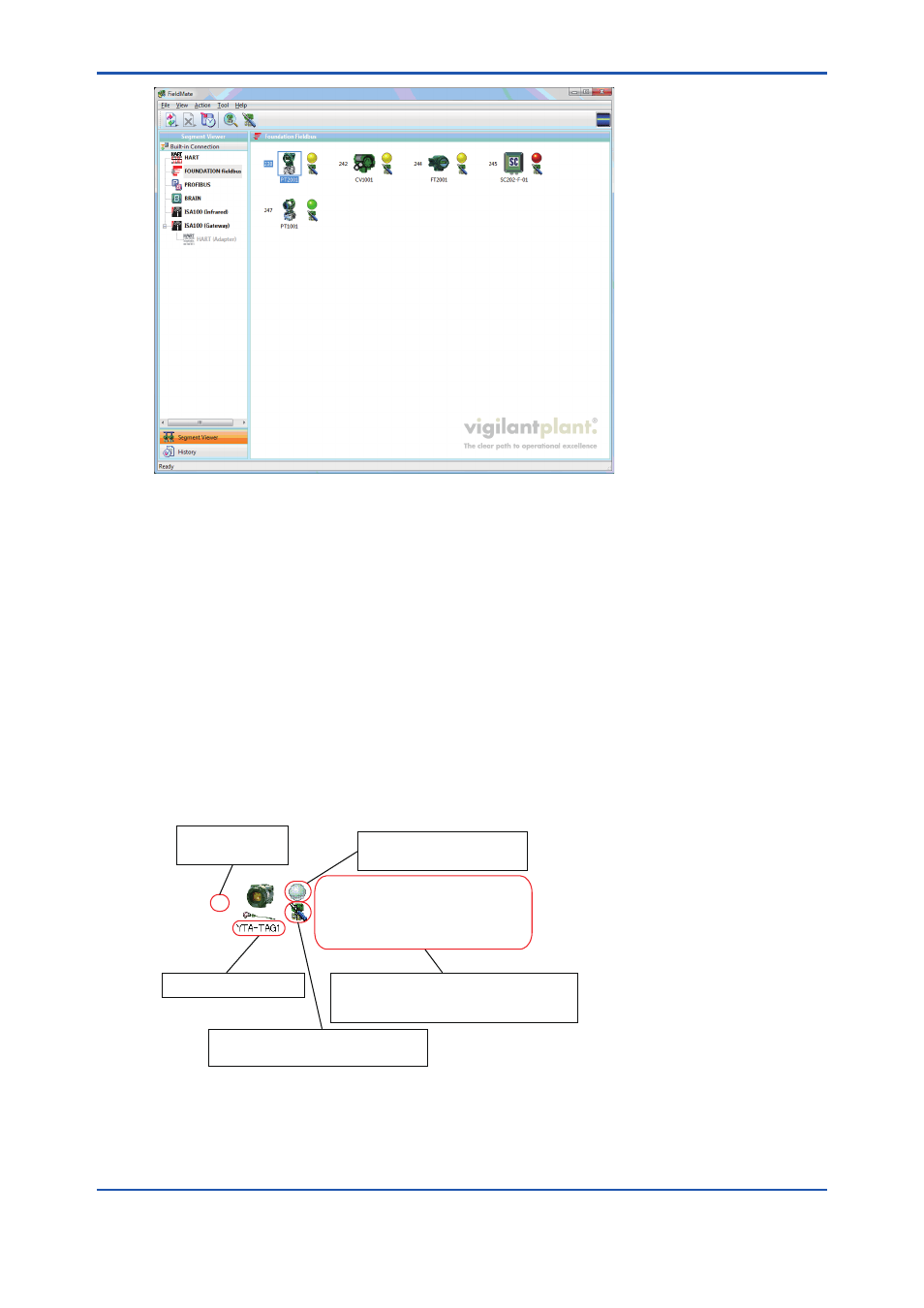

Figure E-2-2 Segment Viewer (when Icon View)
 FOUNDATION fieldbus/HART Device
 FOUNDATION fieldbus
In the case of using a NI-FBUS from National Instruments or FFusb from Softing as a
FOUNDATION fieldbus communication card, direct connection communication with the
FOUNDATION fieldbus device is supported.
A list of FOUNDATION fieldbus H1 segment devices (*1) is displayed.
* 1: Up to 64 devices (subject to the FOUNDATION fieldbus H1 specification).
The following shows the display items.
Item: Manufacturer ID, Device Type, Device Revision, Device Class (*2)
* 2: FOUNDATION fieldbus H1 only.
E020103E.ai
Manufacture ID: YOKOGAWA (0x594543)
Device Type: YTA320(0x0005)
Device Revision: 1
Device ID: 5945430005S0009819
Device Class: Link Master
34
Displays the manufacturer ID, device type,
device revision, and device ID and Device
Class (Link Master or Basic Device).
Displays the self-diagnostic
result for the device.
Displays the device tag
Displays the
device address.
Click this to execute the Device Setup
menu item and start up DTM Works.
Figure E-2-3 Displaying a FOUNDATION fieldbus/HART Device in Segment Viewer
