An ISA100 device is recognized as follows.
1. On the tree menu of Segment Viewer, select “ISA100 (Gateway)”. (“1. Select” in the figure.)
2. Press “2. Update”. The device to be updated needs to be selected.
Updating can also be performed by pressing the F5 key or “Update” in the menu.
 Selecting devices to be updated
See I-2-4.
Check the box of HART adaptors of the target HART devices and update them, and then display
the Model information.
It shows that HART devices are targeted under the HART adaptors with the Device Tag of
HART_AD_1, HART_AD_2, HART_AD_3 and HART_AD_4.
I030202E.ai

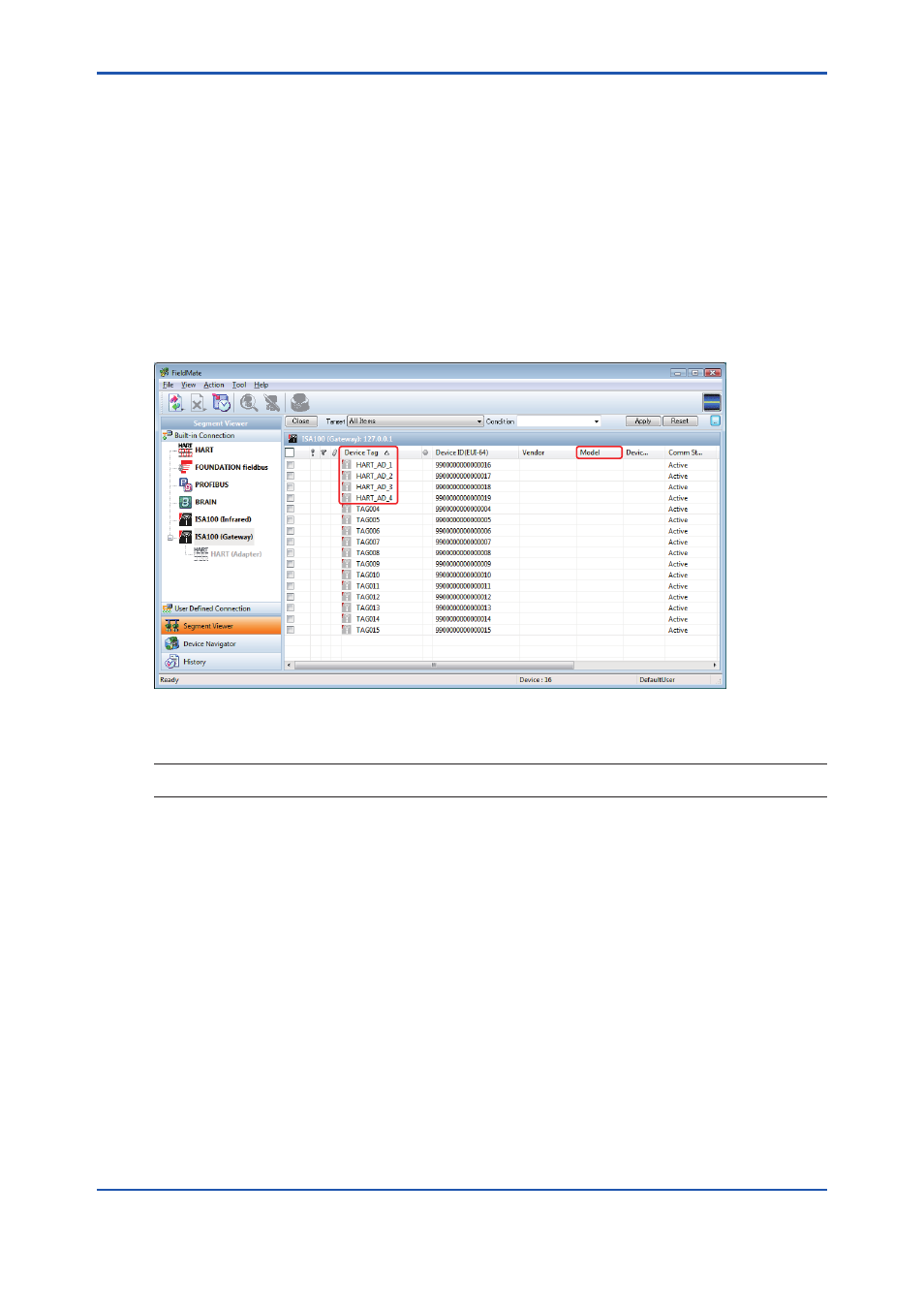

Figure I-3-3 Displaying Model Information of HART Adaptor
TIP
HART device address via HART adaptor must be “0” to communicate.
