An ISA100 device is recognized as follows.
1. On the tree menu of Segment Viewer, select “ISA100 (Gateway)”. (“1. Select” in the figure.)
2. Press “2. Update”. The device to be updated needs to be selected.
Updating can also be performed by pressing the F5 key or “Update” in the menu.
■ Selection of updated device
Devices can be selected as targets for update by marking checkboxes in the column on the left of
Segment Viewer.

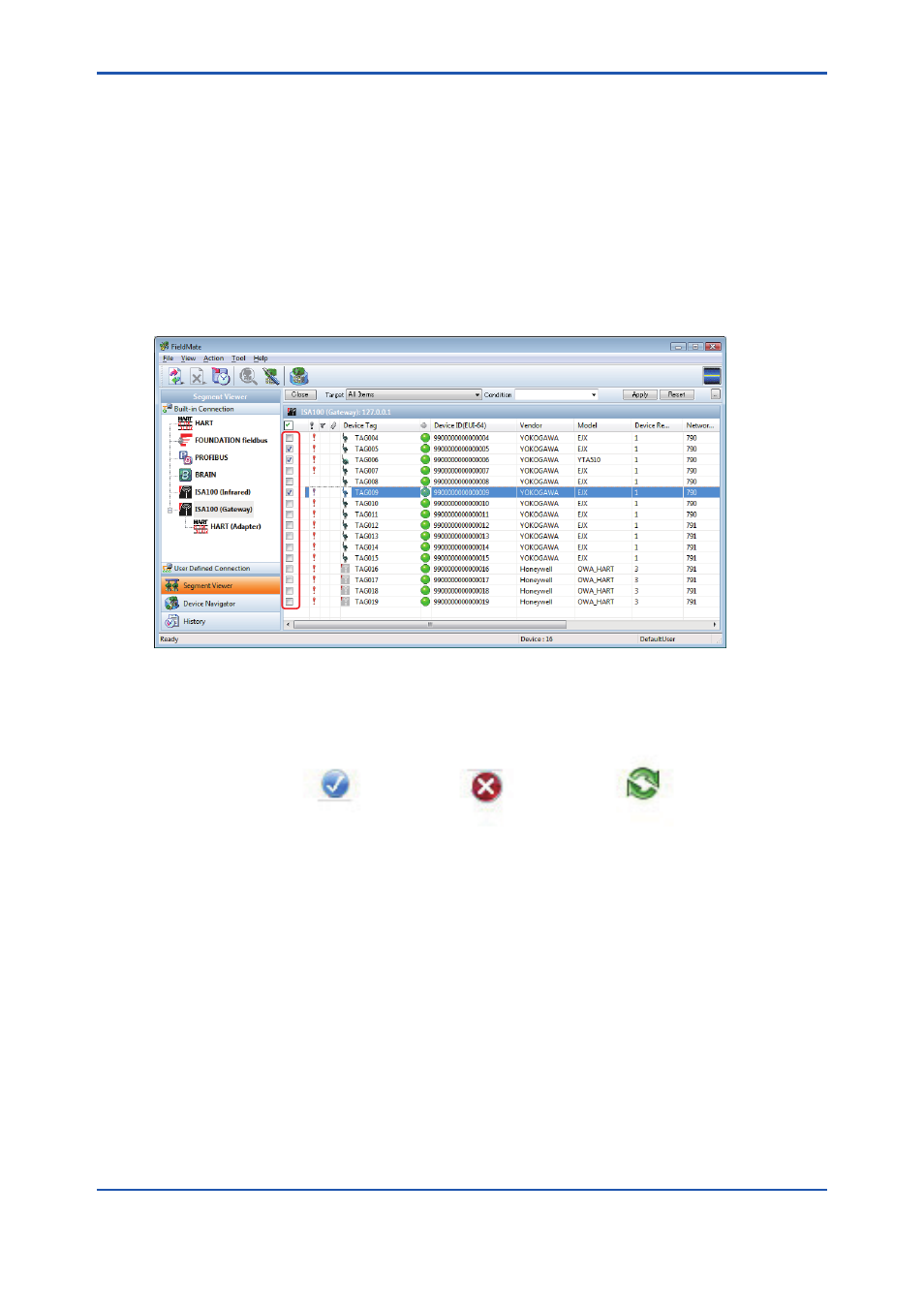

If a check mark is placed in the checkboxes as shown below, device information for device tags
TAG005, TAG006, and TAG009 becomes the target for update.
I020402E.ai
Figure I-2-6 Selecting Targets for Update
When updating starts, the update status appears in the second column of Segment Viewer.
Update finish Update failed Updating
