13. Frequency
Analysis Function for SCON-CA
Controller
Anti-V
ibration Control
219
[2] Sampling/FFT analysis result window switching tabs
Fig. 13.14 Sampling/FFT Analysis Result Window Switching Tabs
You can click a desired tab to switch between the sampling window and FFT analysis result window.
[For the FFT analysis result window, refer to 13.2.3, “Analysis Result Display Window.”]
The selectable tab is shown with black text, while the text on the unavailable tab is grayed out. The currently
selected tab is indicated by blue text.
[3] FFT setting

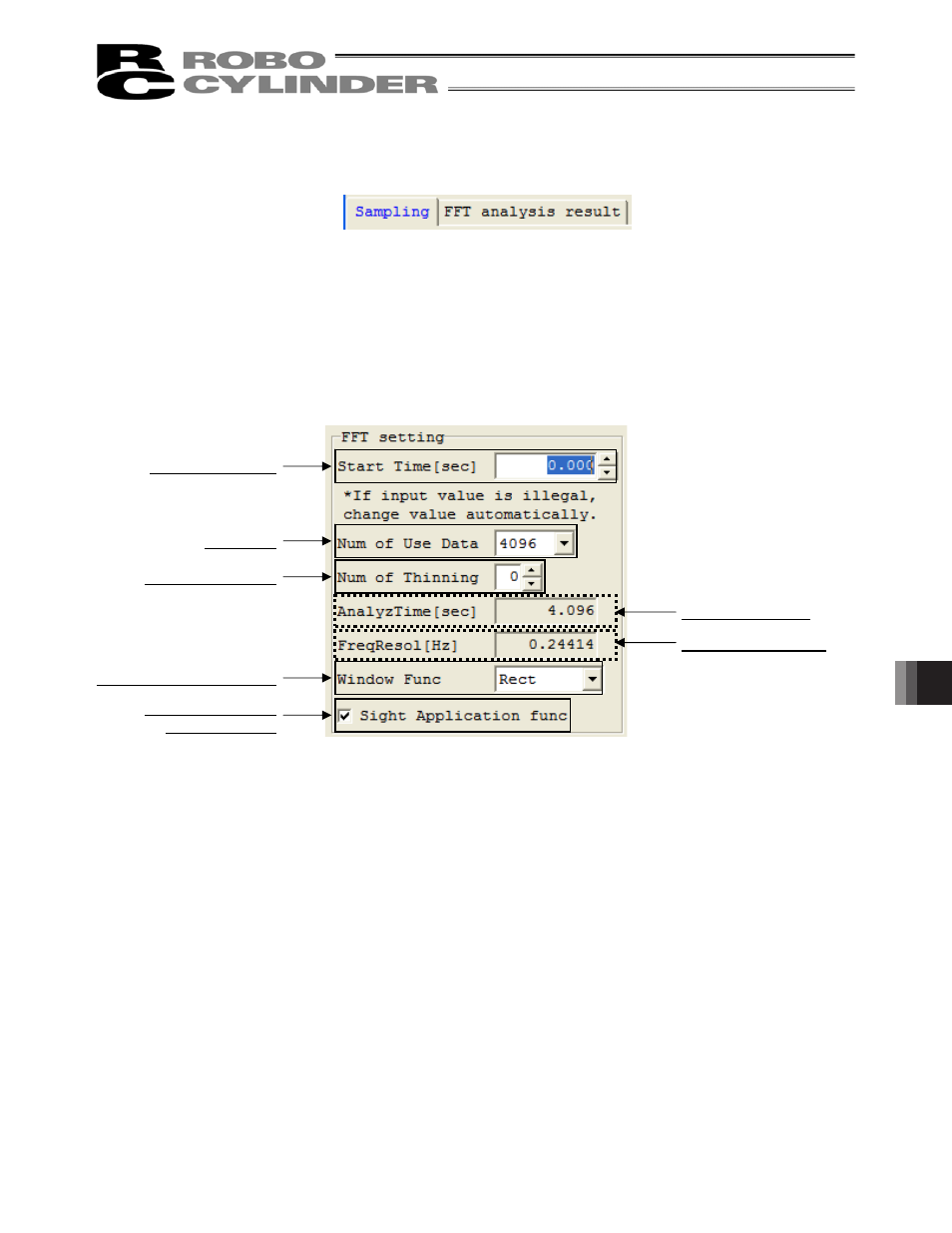

Fig. 13.15 Axis-specific Setting Items
Analysis start time
Data used
Number of thinning
Window function selection
Sight application of
window function
Analysis time [sec]
Frequency resolution
