7. Editing Parameters
96
To send parameter read from the file to the controller, click Parameter and then select Send to controller, or
click the button on the parameter edit window.
Select axis number window is displayed, then select axis No. of the controller.
(Refer to “4. Selecting an axis.”)
Click OK on the select axis number window, then the following warning window is displayed. Click Yes, then
the parameter is sent to the controller.

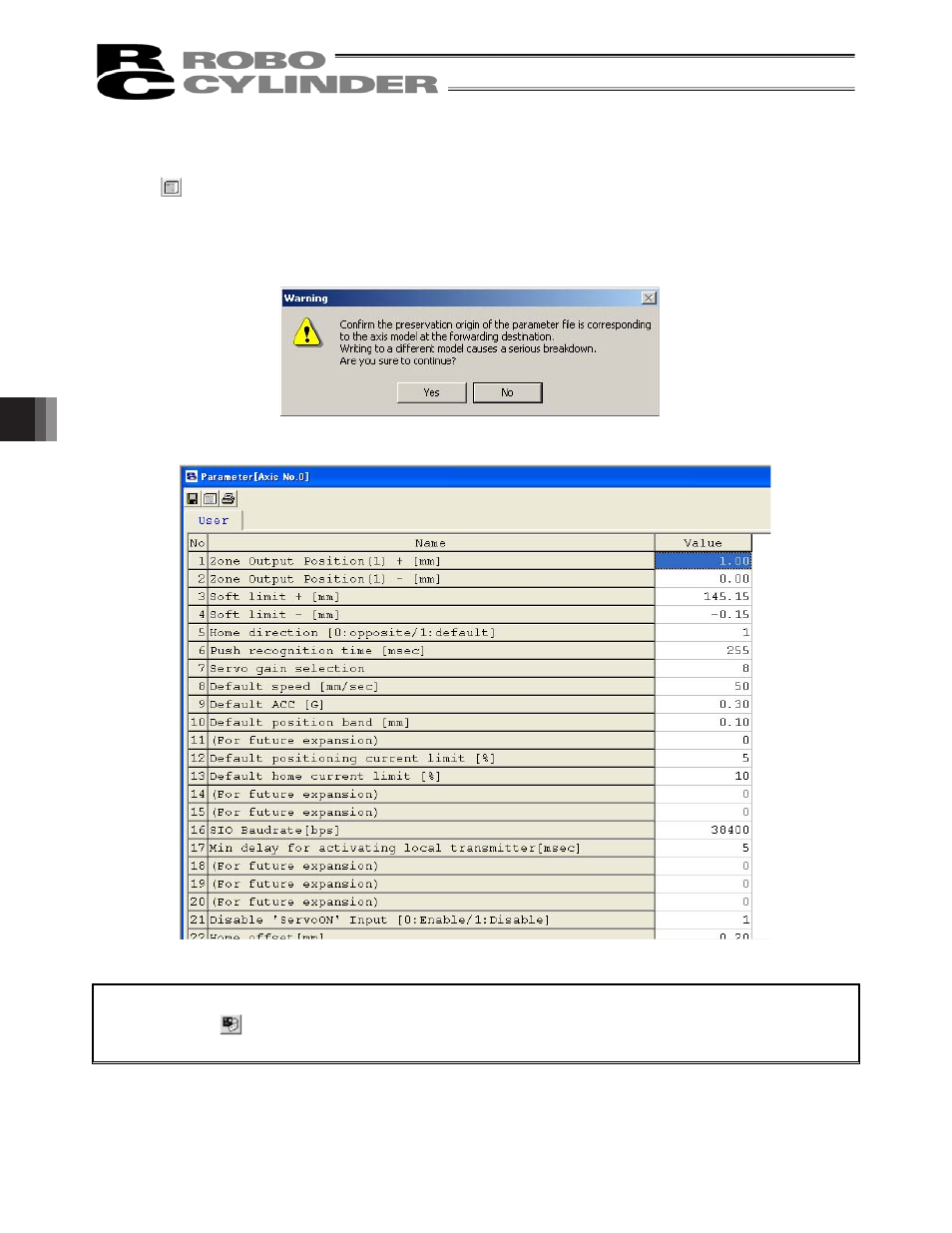

Fig. 7.6 Warning
Fig. 7.7 Parameter Edit Window
Note: While the position data edit window is open, the parameter edit window cannot be opened.
When the button is clicked, the select axis number window is displayed, but axis to be selected is
not displayed.
