Gain Set No. Select
Select the gain set number that is to be saved as the origin gain. At the time the Off board tuning window
is activated, the gain set selected from the gain sets No. 0 to 3 set to the controller can be saved.
If the origin gain is already saved to the adjustment record data at the time “Adjustment record” was
chosen in “Select actuator” window, the origin gain saved in the adjustment record can be saved by
selecting “*” in the gain set number in the following window.

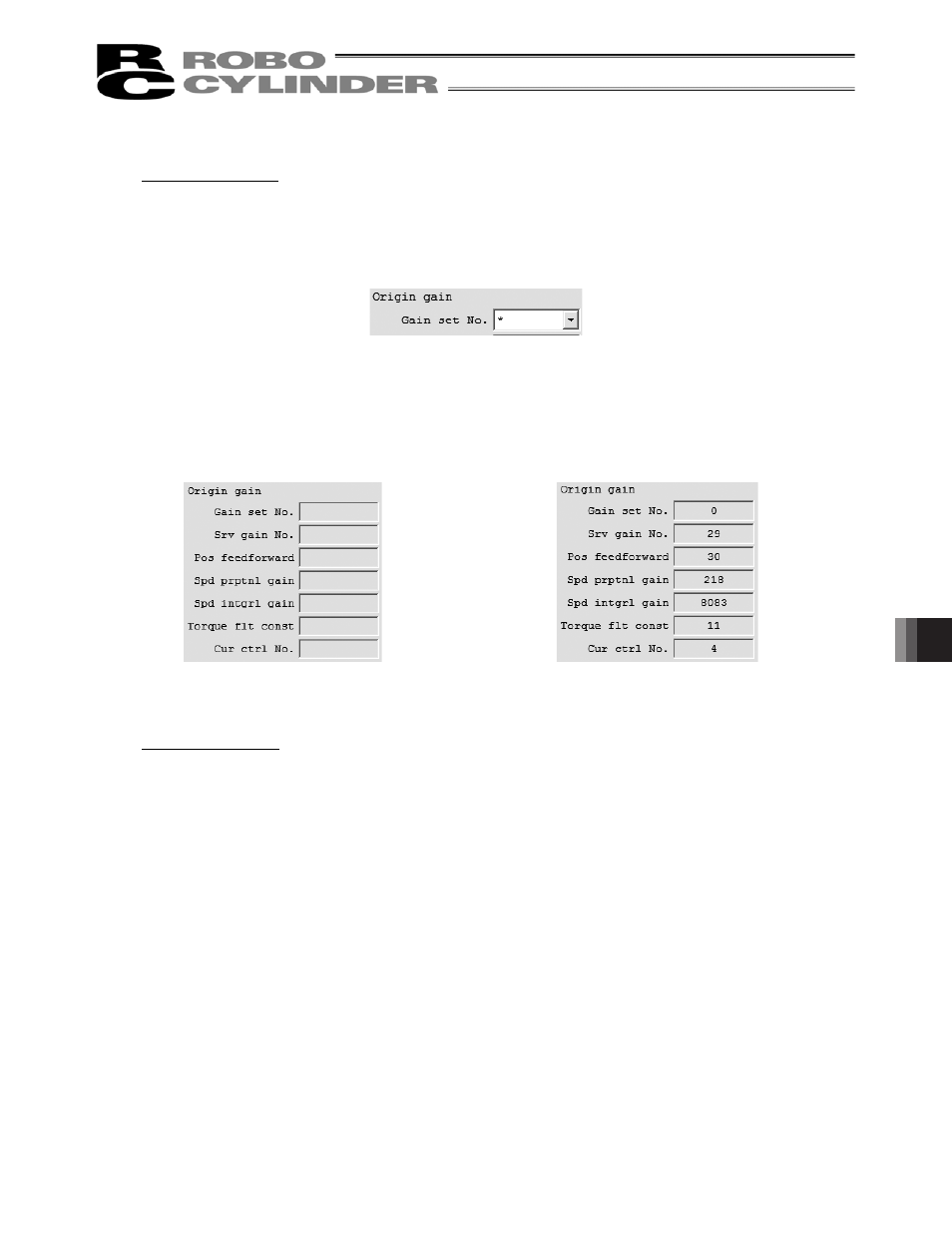

Fig. 12.62 Gain Set Number Select
(when origin gain is saved in adjustment record)
(Note) 㵰*” can be displayed only when the origin gain is saved in the adjustment record data.
(Note) The display of the gain set No. select changes to the one as shown below when it is offline.
Fig. 12.63 Display of Origin gain
(Adjustment record data save Window)
(with no origin gain)
Fig. 12.64 Display of Origin gain
(Adjustment record data save Window)
(with origin gain)
Comment Input Box
A comment to save in the adjustment record can be input. The comment can be made with 32 half-sized
characters at the maximum.
[2] Save new record/Over write present record button
Save new record button
Click on this button and the adjustment record displayed on the Adjustment record data display ((1) in
Adjustment record data save window) can be additionally saved.
Over write present record button
Click on this button and the file can be overwritten to the adjustment record of the data number in the
Adjustment record data display ((1) in Adjustment record data save window).
(Note) Overwriting is available only after the adjustment record currently displayed is already saved at
least once, or when “Adjustment record” is chosen in “Select actuator” window.
