11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
130

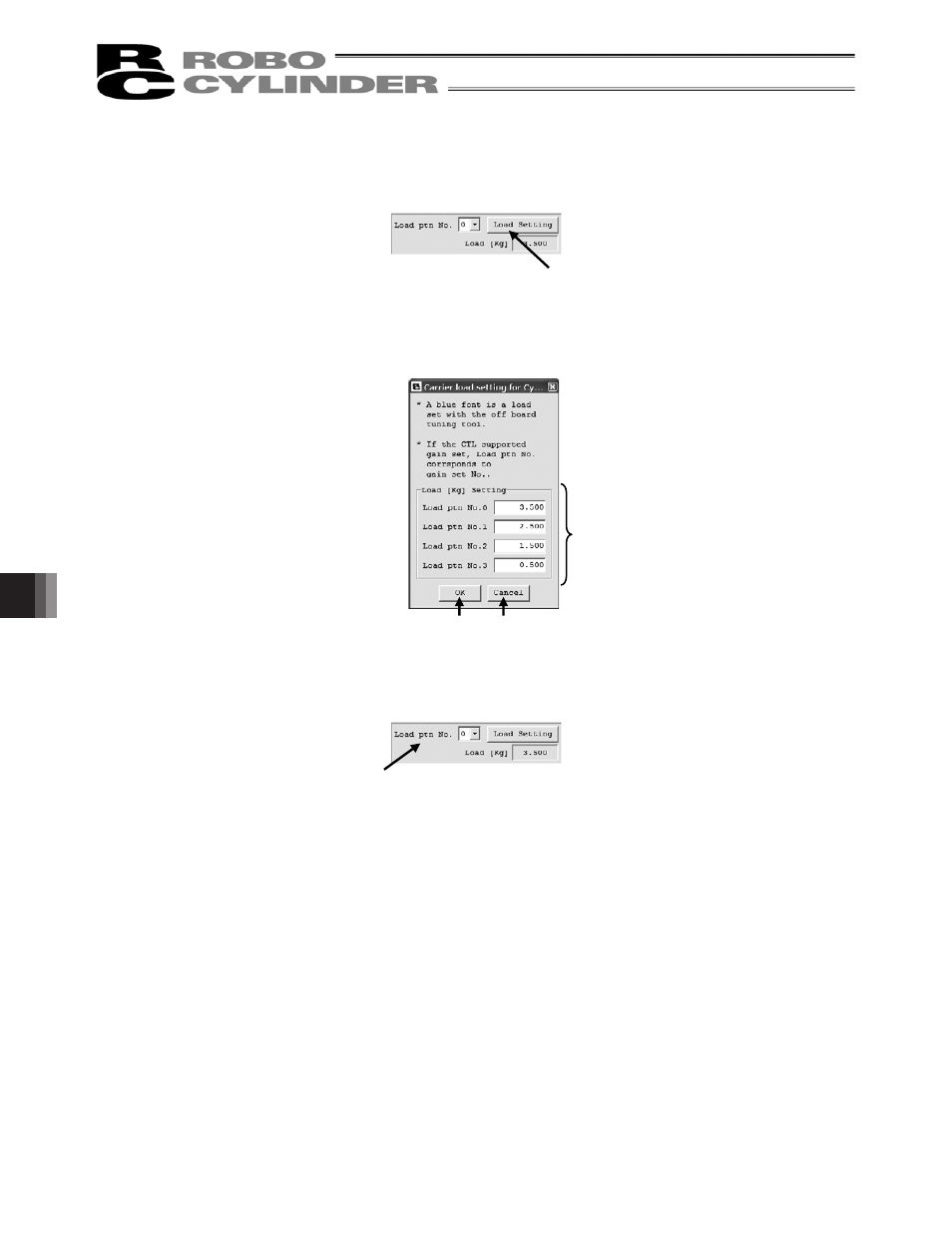

[4] Click Load Setting button at the setting display of the actuator applicable for velocity and
acceleration/deceleration settings.
Fig. 11.14 Box to show carrier load setting for velocity and acceleration/deceleration settings
[5] Set the carrier load in “Carrier load setting for Smart tuning function” window.
Click OK button.
Fig. 11.15 Carrier load setting for Smart tuning function Window
[6] Select the carrier load number.
Fig. 11.16 Box to show Carrier load setting for Smart tuning function
Load Setting Button
Load pattern No.
select
[1] Load Setting
[2] OK Button [3] Cancel Button
