11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
157
(1) Test run plan

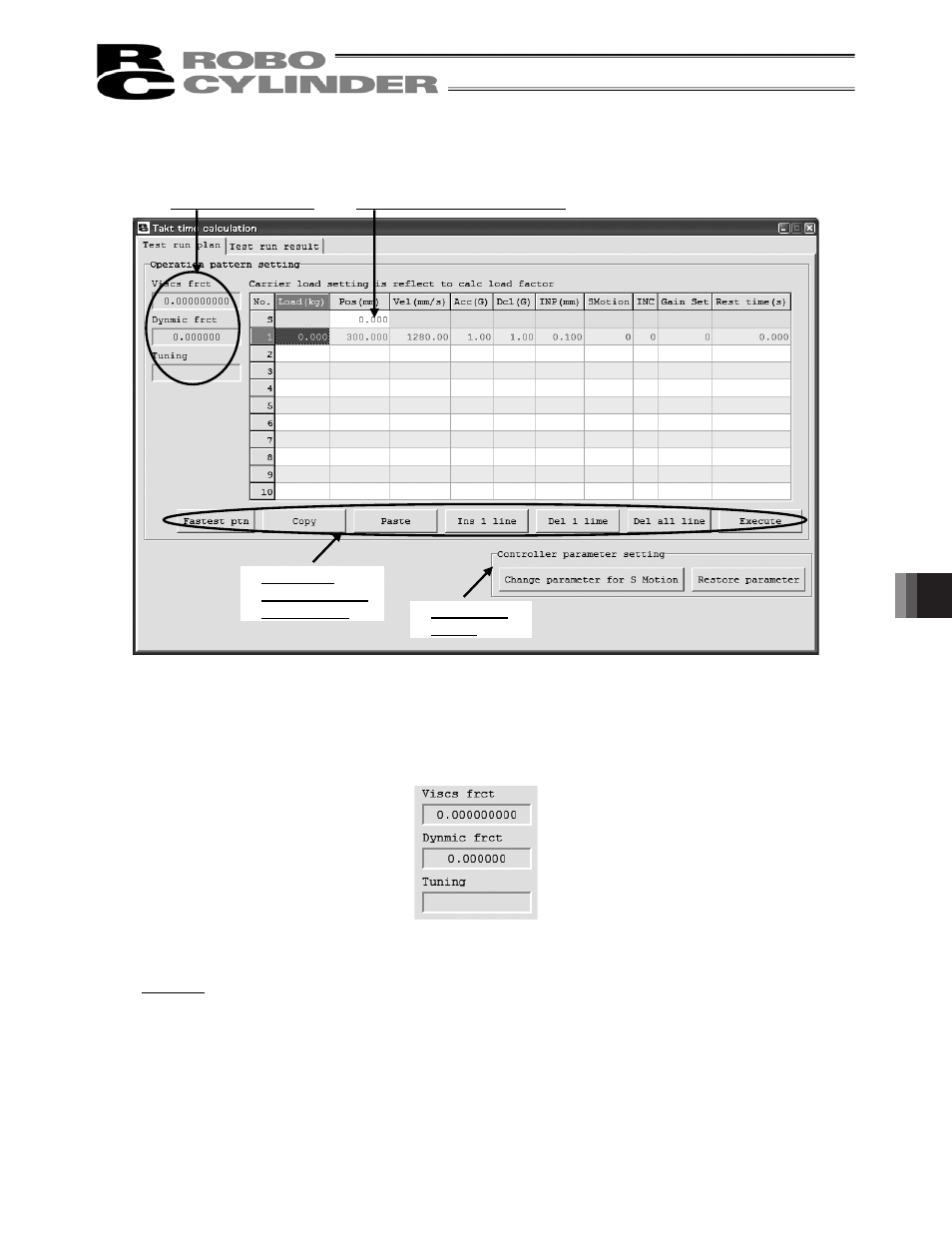

Fig. 11.76 Test run plan Setting Window
The settings of operation pattern to be held for takt time calculation can be conducted in this window.
The maximum operation patterns available to set are 10 patterns.
[1] Friction Display
Fig. 11.77 Friction Display Area
Viscs frct
In here, shows the coefficient of viscous friction. The setting unit is [Nms].
(Note) Since PCON-CA and ERC3 are not complied with system identification, “0.000000000” is
displayed in the box.
[1] Friction Display Area [2] Operation Pattern Setting Grid
[3] Operation
Pattern Setting
Tool Buttons [4] Parameter
setting
