13. Frequency
Analysis Function for SCON-CA
Controller
Anti-V
ibration Control
217
13.2.2 Sampling Window
This window is used to import vibration data from the controller by moving the actuator.
You can also perform various operations in this window, such as setting the range of data used in FFT analysis
after vibration data has been imported from the controller or external measurement data or existing analysis
data (extension “fmd”) has been read.
When you select the “Import new controller data,” “Read external measurement data file” or “Read analytical
already data file (extension “fmd”)” option in the measurement data selection window, the display switches to
this window.

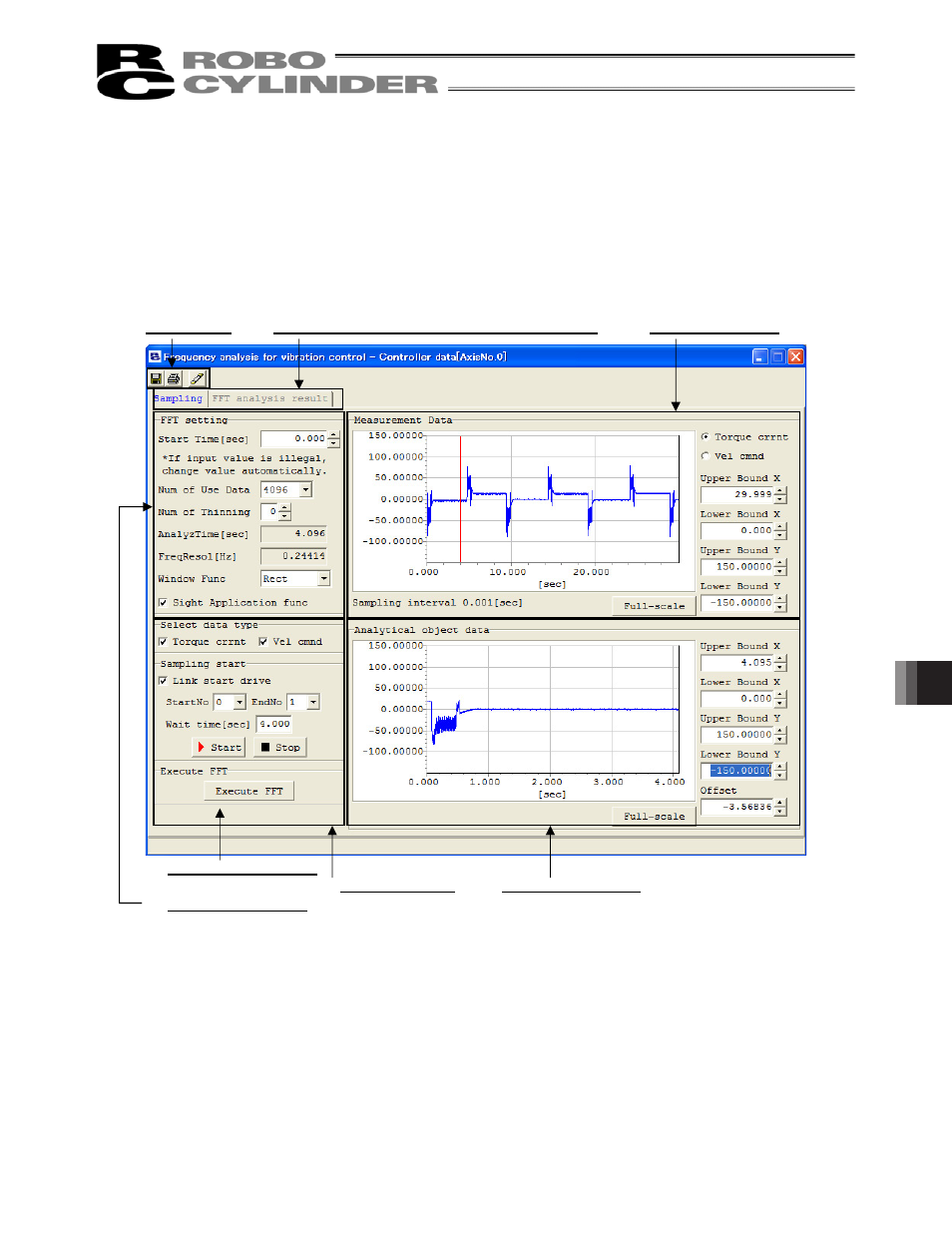

Fig. 13.10 Sampling Window
[1] Tool buttons [2] Sampling/FFT analysis result window switching [5] Measurement data
[6] Data to be analyzed [4] Sampling setting
[7] Execute FFT analysis
[3] FFT analysis setting
