(4) Adjustment record data save window
Save the adjustment record in this window.

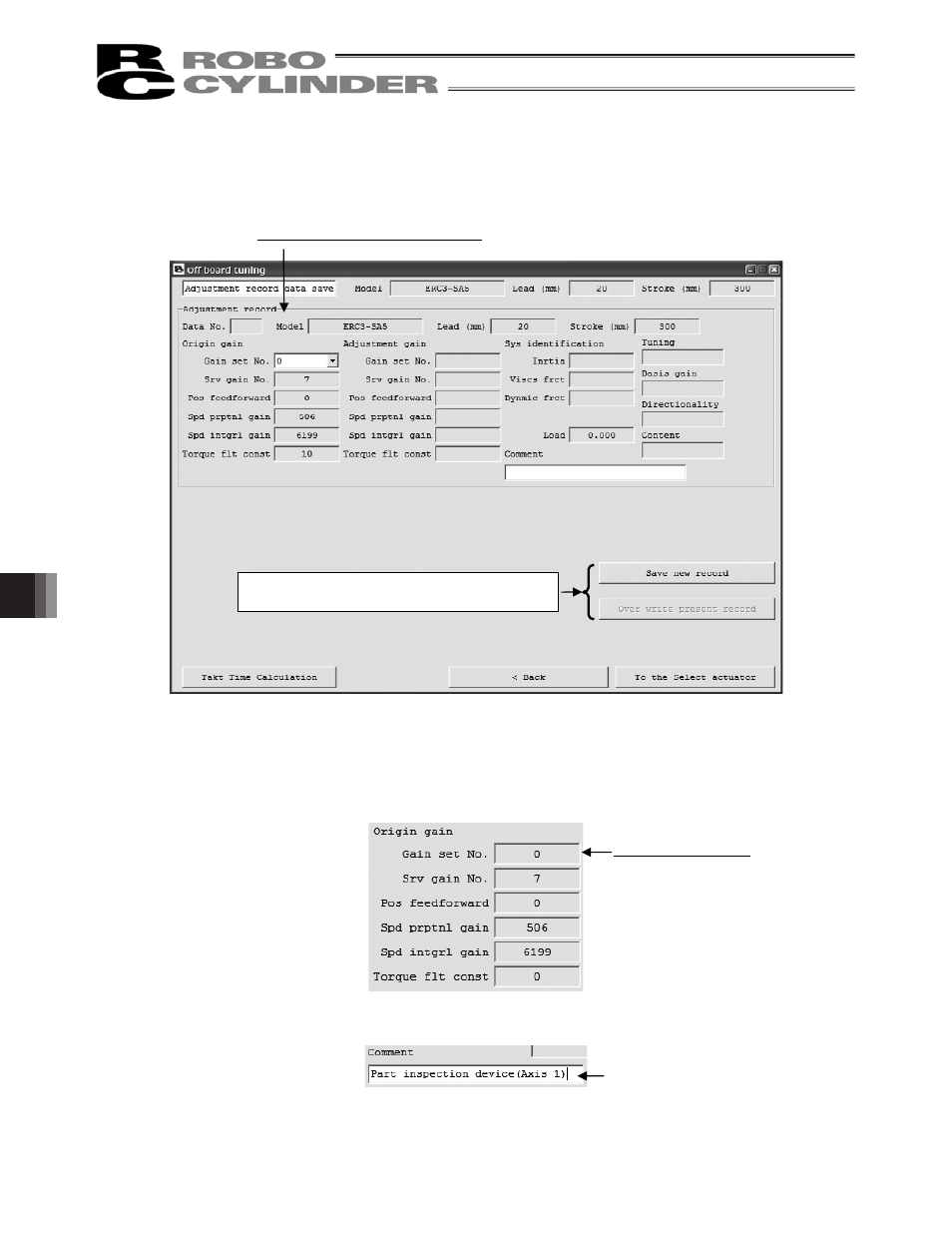

Fig. 11.68 Adjustment record data save Window
[1] Adjustment Record Data Display
Data saved as the adjustment record can be displayed. For the two items shown below, the display and
function change from the adjustment record data display in “Select actuator” window.
Fig. 11.69 Display of Origin gain (Adjustment record data save Window)
Fig. 11.70 Comment Box (Adjustment record data save Window)
[1] Adjustment Record Data Display
[2] Save new record
/Over write present record
Gain Set No. Select
Comment Input Box
