6. Initial Setting and Position Data Editing for SEP
Controllers
91
[3] The position data input window corresponding to the selected operation pattern appears.
Enter desired position data in the position data input area.

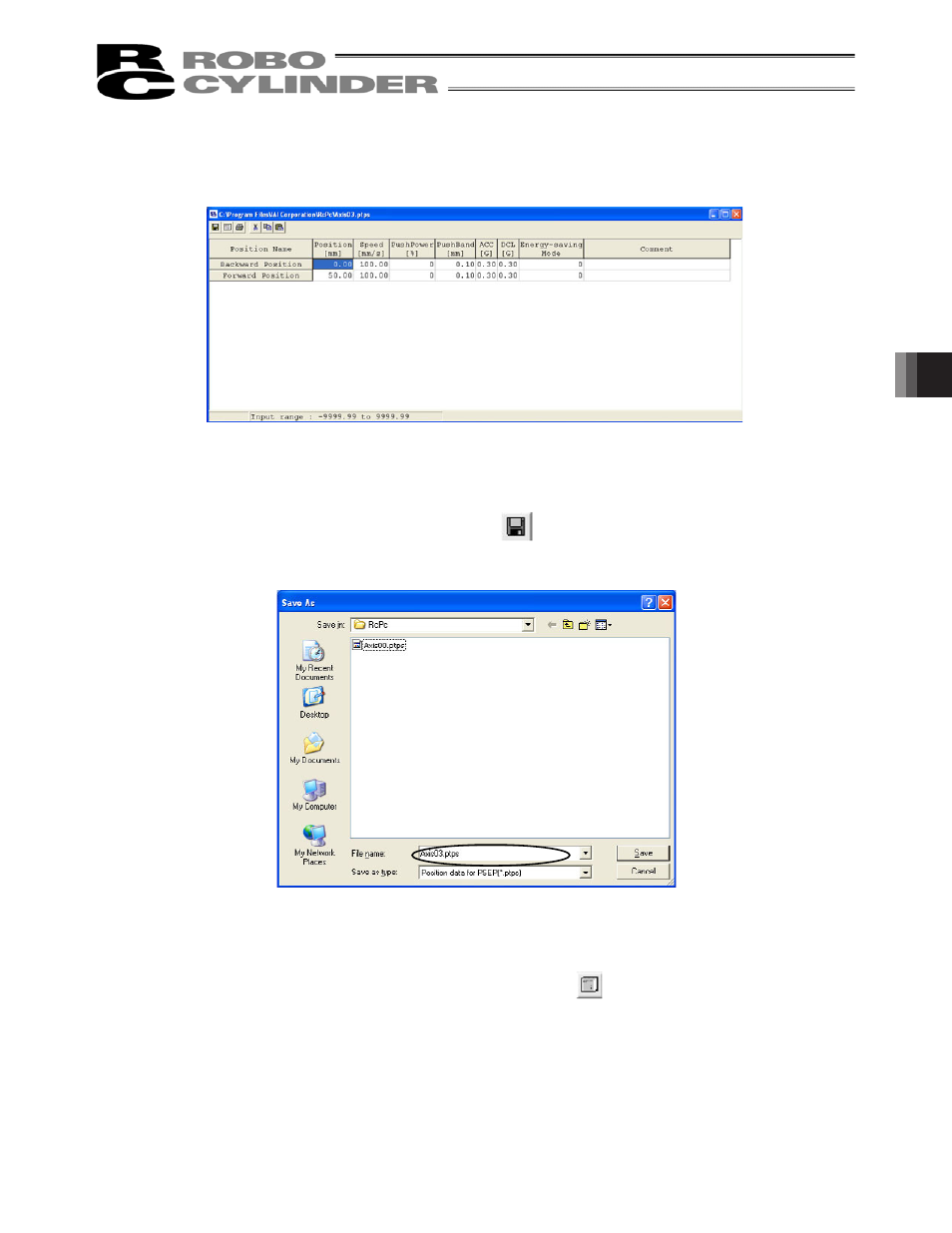

Fig.6.28 Position Data Edit Window (Offline Mode – New)
[4] The created position data can be saved to a file or sent to the connected controller.
(Saving the position data to a file)
To save the position data to a file, click the tool button .
The save as window appears.
Enter a desired file name and click the Save button, and the position data will be saved to a file under the
specified name.
Fig.6.29 Position Data Edit Window (Offline Mode – New)
(Sending the position data to the connected controller)
Connect the controller and PC.
Click Position and select Send to Controller, or click the tool button .
When the axis selection window appears, select the axis number of the controller to send the position data to.
(Refer to 4, “Selecting an Axis.”)
* “Comments” can be saved only to files. They cannot be saved to controllers.
