11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
144
[3] Adjustment Record Data Display Area
In here, shows the details of the adjustment record data selected in “Select from Adjustment Record” in
the actuator select actuator.

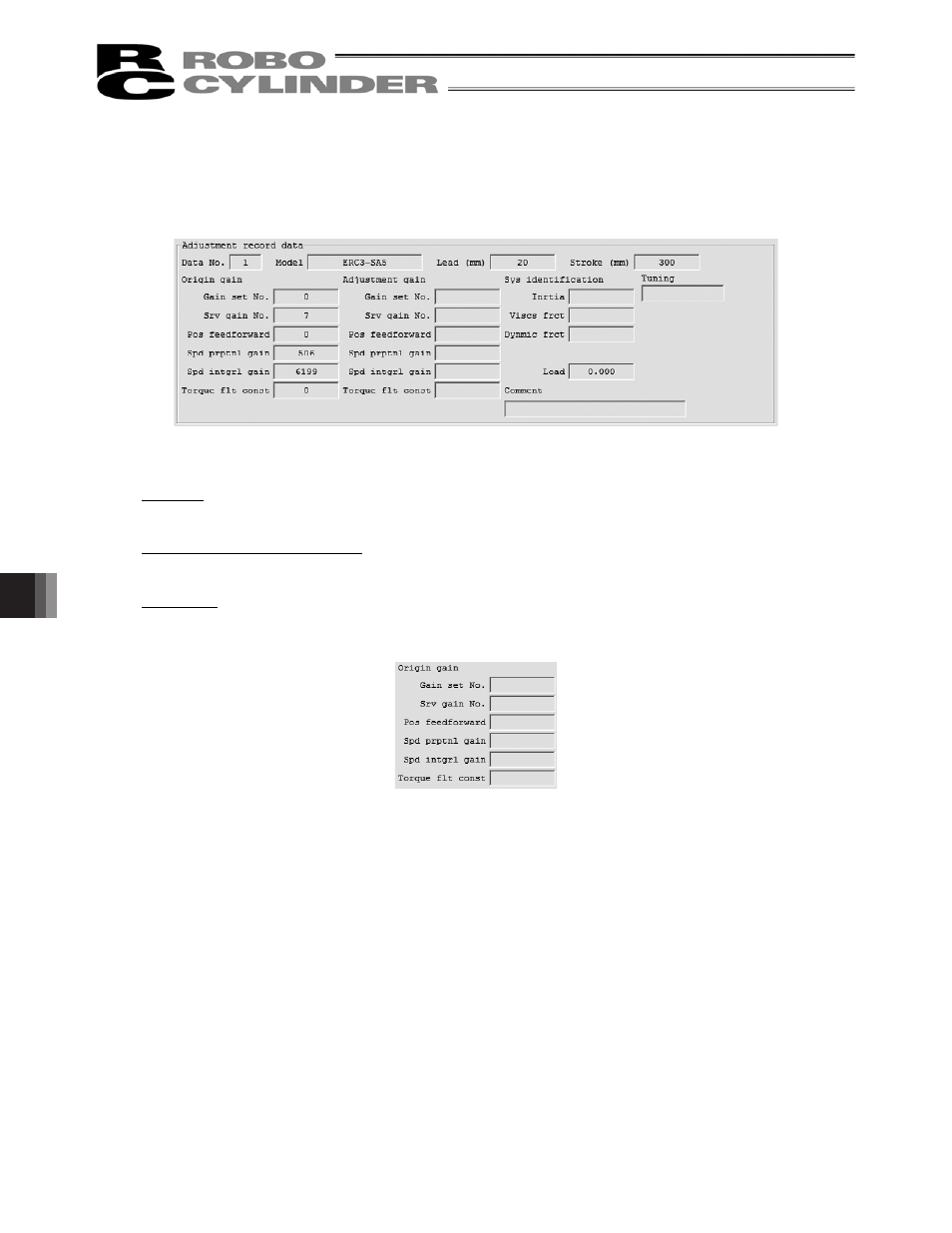

Fig. 11.51 Adjustment record data Display Area (Select actuator Window)
Data No.
It shows the data number of the displayed adjustment record.
Model, Lead (mm), Stroke (mm)
It shows the information of actuator selected in “Select actuator” window.
Origin gain
In here, shows the origin gain if the origin gain is the stored adjustment record data.
For the adjustment record data without the stored origin gain, it will be as shown in Fig. 11.45.
Fig. 11.52 Origin gain (Select actuator Window) (Not stored)
