12. Off Board T
uning Function on SCON-CA
Controller
175
Adjustment gain
The gain after tuning is displayed. For the adjustment record the adjustment gain is sent to the controller,
the gain set number that the gain is set to is shown in Gain Set No., and “-“ is shown if not sent.
Sys identification
The result of the system identification is displayed for the adjustment record the system identification is
conducted.
Nothing is displayed as shown below for the adjustment record data saved with no system identification.

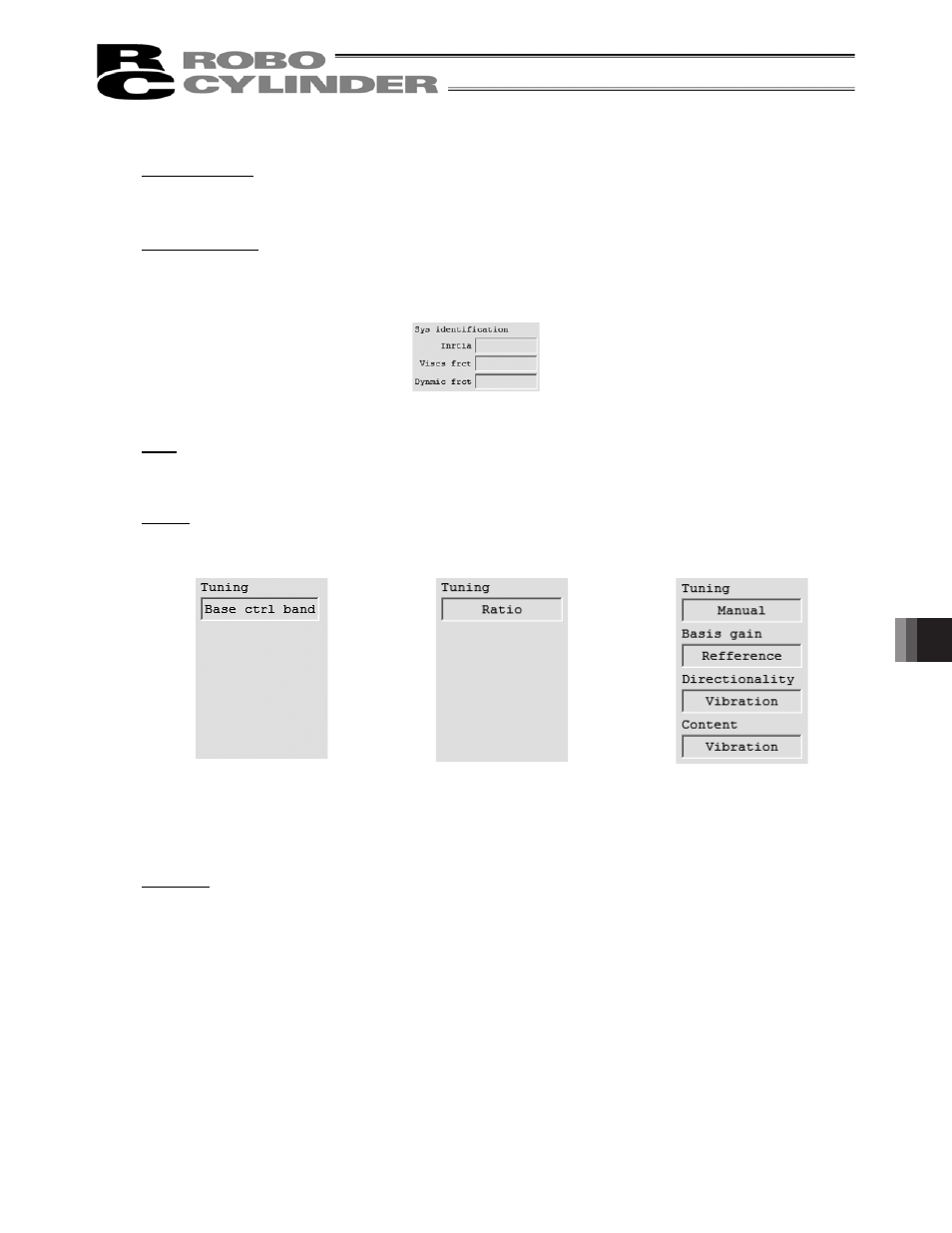

Fig. 12.12 Sys identification (Not stored)
Load
In “Carrier load Select” window, the carrier load which was indicated is displayed.
For the record, the carrier load calculated backwards from the synthetic inertia is displayed.
Tuning
The method of adjustment selected in “Select adjustment method” window is shown. The display is
switched as shown below depending on the selected method.
Fig. 12.13 Tuning display
(When the Base ctrl band)
Fig. 12.14 Tuning display
(When the simple tuning)
Fig. 12.15 Tuning display
(When the Manual)
Comment
The comment is shown for the adjustment record data saved with a comment.
