11. Smart T
uning Function (V
ersion V8.03.00.00 or Later)
137

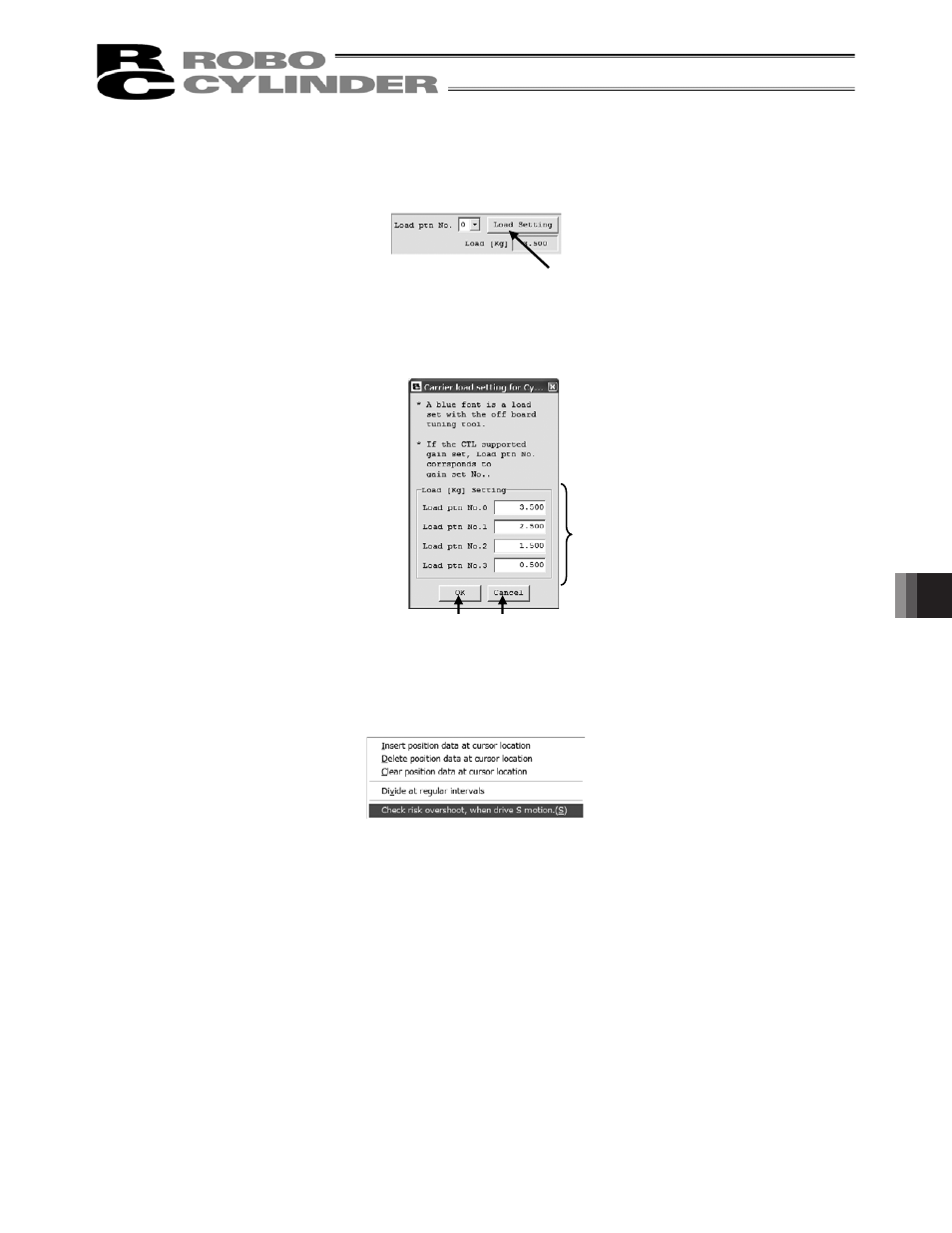

[4] Click Load Setting button at the setting display of the actuator applicable for velocity and
acceleration/deceleration settings.
Fig. 11.35 Box to show carrier load setting for velocity and acceleration/deceleration settings
[5] Set the carrier load in “Carrier load setting for Smart tuning function” window.
Click OK button.
Fig. 11.36 Carrier load setting for Smart tuning function Window
[6] Right-click on the position data cell that the overshoot judgment is desired, and select “Check risk
overshoot, when drive S motion.”.
Fig. 11.37 Popup Menu
(Check risk overshoot, when drive S motion.)
Load Setting Button
[1] Load Setting
[2] OK Button [3] Cancel Button
