11. Smart Tuning Function (Version V8.03.00.00 or Later)
If RC PC software (Version V8. 03. 00. 00 or later) is installed, the key file (OffBrdTune.dll file) and such as
AtrDatActuator_24V_PM_BU.oact that are required for the smart tuning function are also installed.
They are installed in the folder that the executable file for ‘RcPc PC PC software’ is stored.
Example of storage folder: C:\Program Files\IAI\RoboCylinder

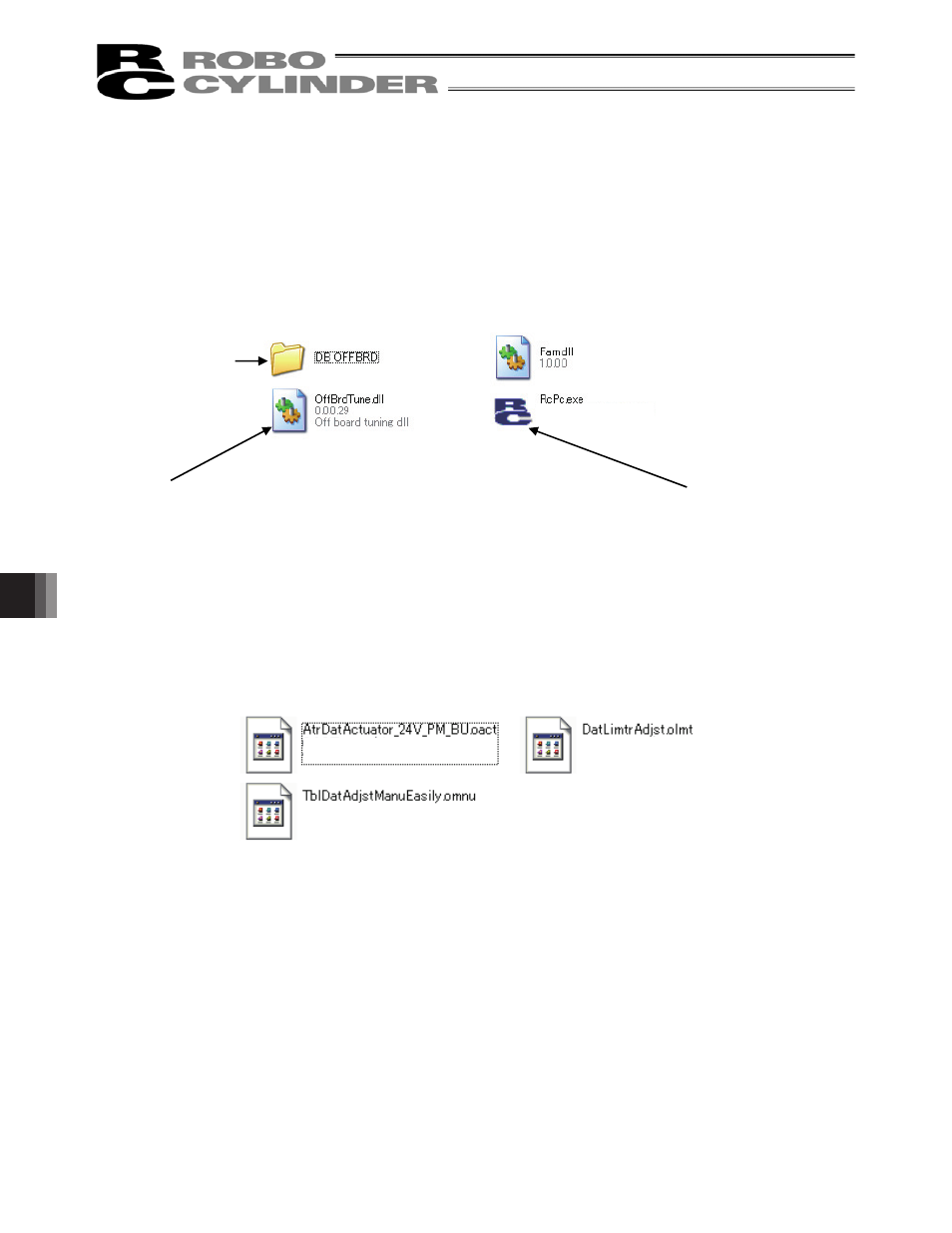

Fig. 11.1 Folder with RC PC Software Executable File Stored
In DB_OFFBRD folder, the files listed below are to be stored;
• AtrDatActuator_24V_PM_BU.oact
• DatRcrdAdjsted_24V_PM_BU.ocrd
• TblDatAdjstManuEasily.omnu
• DatLimtrAdjst.olmt
OACT file
23 KB
OLMT file
1 KB
OMNU file
3 KB
Fig. 11.2 Data Stored to DB_OFFBRD Folder
PC software for RC
IAI America Inc.
RcPc
PC software for RC
Executable file
Key file
(OffBrdTune.dll file)
DB_OFFBRD folder
