[3] Adjustment record data Display

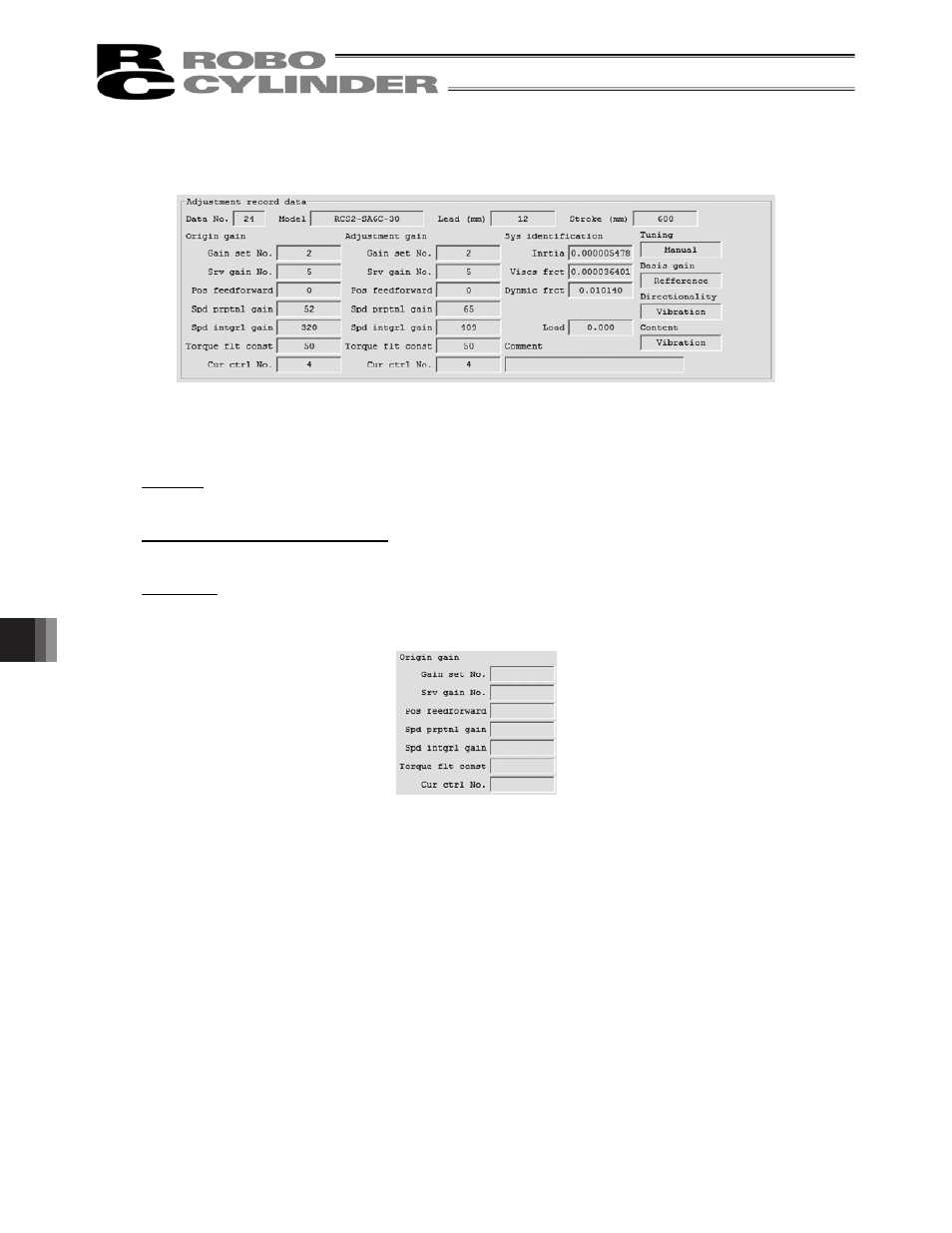

Fig. 12.10 Adjustment record data Display (Select actuator Window)
The details of the adjustment record data selected in Adjustment record data select is displayed.
Data No.
It shows the data number of the displayed adjustment record.
Model, Lead (mm) and Stroke (mm)
It shows the information of actuator selected in “Select actuator” window.
Origin gain
In here, shows the origin gain if the origin gain is the stored adjustment record data.
For the adjustment record data without the stored origin gain, it will be as shown below.
Fig. 12.11 Origin gain (Select actuator Window)
(Origin gain not stored)
